Rear Power Window Switch Connector For Inputs And Outputs

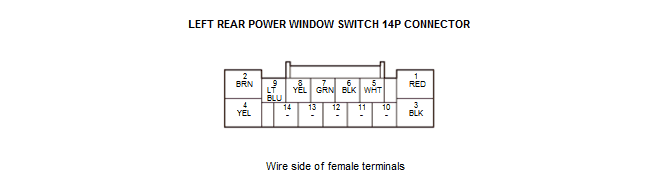

| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | P/W RR L MTR UP | Drives left rear power window motor | With left rear power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 2 | P/W RR L MTR DOWN | Drives left rear power window motor | With left rear power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 3 | GND | Ground for left rear power window switch | Less than 0.2 V at all times |
| 4 | +B P/W RR L | Power source for left rear power window switch | About battery voltage at all times |
| 5 | P/W RR L MTR VCC | Outputs P/W RR L MTR VCC signal | With left rear power window control unit is wakeup mode: about battery voltage With left rear power window control unit is sleep mode: less than 0.2 V |
| 6 | GND | Ground for left rear power window switch | Less than 0.2 V at all times |
| 7 | P/W RR L MTR PLSB | P/W RR L MTR PLSB signal | - - - |
| 8 | P/W RR L MTR PLSA | P/W RR L MTR PLSA signal | - - - |
| 9 | LIN (P/W) | Communication line | - - - |
| 10 | Not used | - - - | - - - |
| 11 | Not used | - - - | - - - |
| 12 | Not used | - - - | - - - |
| 13 | Not used | - - - | - - - |
| 14 | Not used | - - - | - - - |

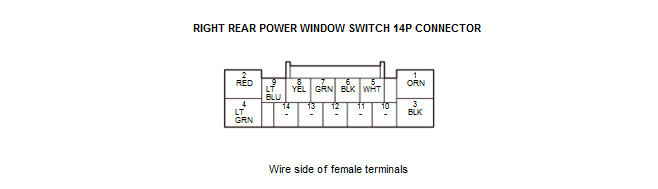

| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | P/W RR R MTR UP | Drives right rear power window motor | With right rear power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 2 | P/W RR R MTR DOWN | Drives right rear power window motor | With right rear power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 3 | GND | Ground for right rear power window switch | Less than 0.2 V at all times |
| 4 | +B P/W RR R | Power source for right rear power window switch | About battery voltage at all times |
| 5 | P/W RR R MTR VCC | Outputs P/W RR R MTR VCC signal | With right rear power window control unit is wakeup mode: about battery voltage With right rear power window control unit is sleep mode: less than 0.2 V |
| 6 | GND | Ground for right rear power window switch | Less than 0.2 V at all times |
| 7 | P/W RR R MTR PLSB | P/W RR R MTR PLSB signal | - - - |
| 8 | P/W RR R MTR PLSA | P/W RR R MTR PLSA signal | - - - |
| 9 | LIN (P/W) | Communication line | - - - |
| 10 | Not used | - - - | - - - |
| 11 | Not used | - - - | - - - |
| 12 | Not used | - - - | - - - |
| 13 | Not used | - - - | - - - |
| 14 | Not used | - - - | - - - |
