Wireless Charger Connector For Inputs And Outputs

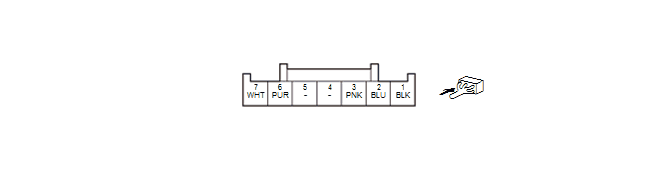

WIRELESS CHARGER 7P CONNECTOR (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | Ground for wireless charger | Less than 0.2 V at all times |
| 2 | B-CAN_L | Communication line | - - - |
| 3 | B-CAN_H | Communication line | - - - |
| 4 | Not used | - - - | - - - |
| 5 | Not used | - - - | - - - |
| 6 | ACC | ACC power source | With vehicle in ACCESSORY or ON mode: about battery voltage |
| 7 | +B BACK UP | Power source for wireless charger | About battery voltage at all times |
