Under-Dash Sub Fuse/Relay Box A

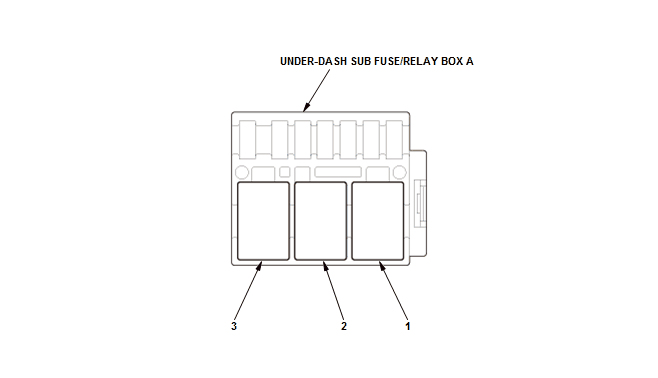

Fig 1: Under-Dash Sub Fuse/Relay Box A Components
GHH158392Courtesy of HONDA, U.S.A., INC.
Under-Dash Sub Fuse/Relay Box A Legend

Socket Ref Terminal Connects to Notes
DC-DC converter ACC relay 1 4
Not Used 2 -
IDC-DC converter IG2 METER relay 3 4
