Engine Start/Stop Switch Test: Test

  1. Driver's Inner Dashboard Lower Cover - Remove
  2. Engine Start/Stop Switch - Test

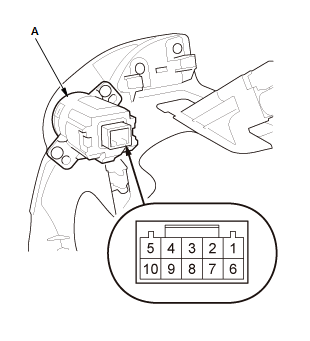

    GHH203922GHH203923Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

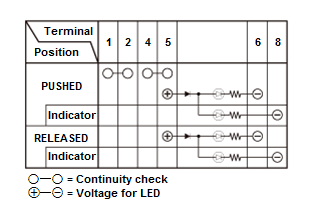

    GHH203922GHH203923Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Check the engine start/stop switch (A) according to the table.
    NOTE:
    • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the result is not as specified, replace the engine start/stop switch .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
