Run the Sensor Input Display Mode

1. Turn the vehicle to the OFF (LOCK) mode then the ACCESSORY mode

2. Make sure the ODMD (TM) is activated and an image is displayed on the screen

3. While pressing and holding the AUTO button, press and hold the driver's side temperature control (down) switch, and then start the engine.

Courtesy of HONDA, U.S.A., INC.

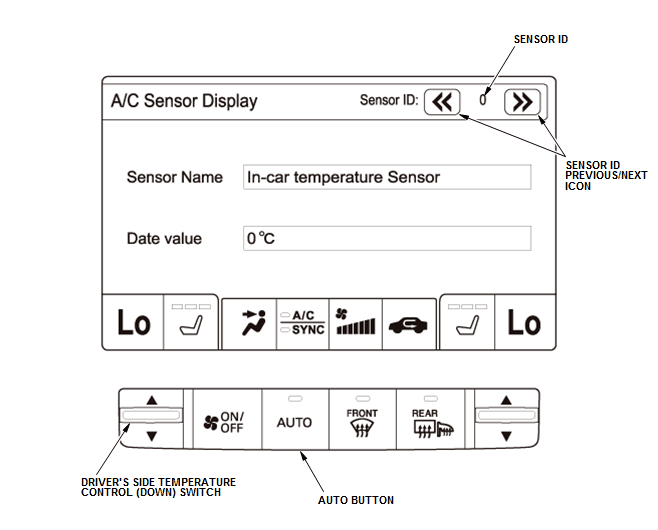

4. Release the button and the switch. The display screen goes directly to the A/C sensor display mode shown. The display screen indicates the sensor ID and then the value for that sensor

5. To advance to the next sensor, press the sensor ID previous/next icon

6. To cancel the sensor input display mode, press the AUTO button or turn the vehicle to the OFF (LOCK) mode.

NOTE:

The sensor values will be displayed in degrees Celsius (°C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (°F).
If the sensor value displays "255", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.

Sensor ID	Item	Displayed Value
0	In-car temperature	°C
1	Outside air temperature	°C
2	Solar radiation sensor value	10 kcal/m 2•h
3	Engine coolant temperature	°C
4	Evaporator outlet air temperature (front)	°C
5	Humidity value	% of relative humidity
6	A/C pressure value	0.1 MPa
7	Not used	- - -
8	Driver's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
9	Passenger's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
10	Not used	- - -
11	Not used	- - -
12	Not used	- - -
13	Not used	- - -
14	Not used	- - -
15	Vehicle speed (vehicle must be driven to display speed)	km/h
16	Vent temperature air out (TAO)	°C
17	Not used	- - -
18	Not used	- - -
19	Not used	- - -
20	Humidity value	°C of dew point
21	Fog margin	°C
22 *	Solar radiation azimuth	Angle
23 *	Solar radiation angle of elevation	Angle
24	Not used	- - -
25	Not used	- - -
26	Not used	- - -
27	Not used	- - -
28	A/C compressor variable capacity control solenoid current	0.01 A

*: With navigation

Celsius to Fahrenheit Conversion Table

°C	°F	°C	°F	°C	°F	°C	°F	°C	°F
0	32	10	50	20	68	30	86	40	104
1	34	11	52	21	70	31	88	41	106
2	36	12	54	22	72	32	90	42	108
3	37	13	55	23	73	33	91	43	109
4	39	14	57	24	75	34	93	44	111
5	41	15	59	25	77	35	95	45	113
6	43	16	61	26	79	36	97	46	115
7	45	17	63	27	81	37	99	47	117
8	46	18	64	28	82	38	100	48	118
9	48	19	66	29	84	39	102	49	120

°C	°F	°C	°F	°C	°F	°C	°F	°C	°F
50	122	60	140	70	158	80	176	90	194
51	124	61	142	71	160	81	178	91	196
52	126	62	144	72	162	82	180	92	198
53	127	63	145	73	163	83	181	93	199
54	129	64	147	74	165	84	183	94	201
55	131	65	149	75	167	85	185	95	203
56	133	66	151	76	169	86	187	96	205
57	135	67	153	77	171	87	189	97	207
58	136	68	154	78	172	88	190	98	208
59	138	69	156	79	174	89	192	99	210

Alphanumeric Conversion Table

Display Reading (Alphanumeric)	Value
0 thru 200	0 thru 200
201 thru 209	-1 thru -9
210 thru 219	-10 thru -19
220 thru 229	-20 thru -29
230 thru 239	-30 thru -39
240 thru 249	-40 thru -49
250 thru 254	Not used
255	Er
