E-Pretensioner Unit Connector For Inputs And Outputs

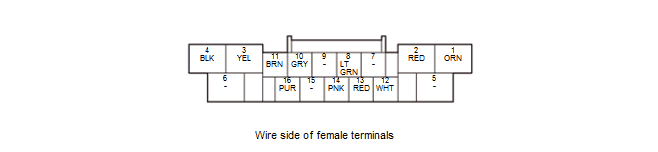

Driver's E-Pretensioner Unit 16P Connector for Inputs and Outputs
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | +B EPT L | Power supply for the driver's E-pretensioner unit |
| 2 | L SB MTR+ | Power supply for the driver's E-pretensioner motor |
| 3 | L SB MTR- | Ground circuit for the driver's E-pretensioner motor |
| 4 | GND | Ground circuit for the driver's E-pretensioner unit |
| 5 | Not used | - |
| 6 | Not used | - |
| 7 | Not used | - |
| 8 | L SPOOL B | Driver's E-pretensioner spool sensor B signal input line |
| 9 | Not used | - |
| 10 | L SPOOL PWR | Power supply for the driver's E-pretensioner spool sensor |
| 11 | FLBC TR | Driver's seat belt buckle switch input line |
| 12 | F-CAN A_H | F-CAN communication (high) circuit |
| 13 | F-CAN A_L | F-CAN communication (low) circuit |
| 14 | L SPOOL A | Driver's E-pretensioner spool sensor A signal input line |
| 15 | Not used | - |
| 16 | IG1 OPTION | Detects ignition signal |

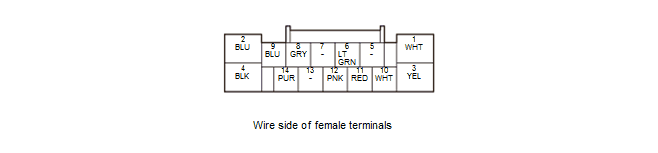

Front Passenger's E-Pretensioner Unit 14P Connector for Inputs and Outputs
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | R SB MTR+ | Power supply for the front passenger's E-pretensioner motor |
| 2 | R SB MTR- | Ground circuit for the front passenger's E-pretensioner motor |
| 3 | +B EPT R | Power supply for the front passenger's E-pretensioner unit |
| 4 | GND | Ground circuit for the front passenger's E-pretensioner unit |
| 5 | Not used | - |
| 6 | R SPOOL B | Front passenger's E-pretensioner spool sensor B signal input line |
| 7 | Not used | - |
| 8 | R SPOOL PWR | Power supply for the front passenger's E-pretensioner spool sensor |
| 9 | FRBC TR | Front passenger's seat belt buckle switch input line |
| 10 | F-CAN A_H | F-CAN communication (high) circuit |
| 11 | F-CAN A_L | F-CAN communication (low) circuit |
| 12 | R SPOOL A | Front passenger's E-pretensioner spool sensor A signal input line |
| 13 | Not used | - |
| 14 | IG1 OPTION | Detects ignition signal |
