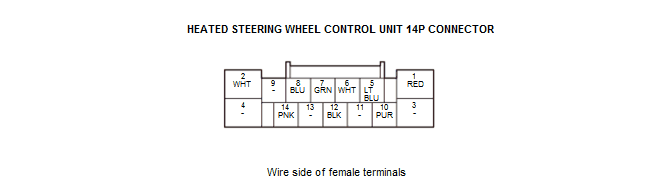

Heated Steering Wheel Control Unit Connector For Inputs And Outputs
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | HEATER | Outputs DR HEATER signal | With heated steering operation: pulse (depending on steering temperature) If none of above conditions are met: less than 0.2 V |
| 2 | HSW VCC | Power source for heated steering wheel control unit | With vehicle in ON mode: about battery voltage |
| 3 | Not used | - - - | - - - |
| 4 | Not used | - - - | - - - |
| 5 | HSW SWITCH | Detects HSW SWITCH signal | With vehicle in ON mode and heated steering wheel switch ON: about battery voltage If none of above conditions are met: less than 0.2 V |
| 6 | NTC+ | NTC+ signal | - - - |
| 7 | NTC- | NTC- signal | - - - |
| 8 | LIN (METER) | Communication line | - - - |
| 9 | Not used | - - - | - - - |
| 10 | HSW INDICATOR | Outputs HSW INDICATOR signal | - - - |
| 11 | Not used | - - - | - - - |
| 12 | SGND | Ground for heated steering wheel control unit | Less than 0.2 V at all times |
| 13 | Not used | - - - | - - - |
| 14 | HSW SW +B | Power output terminal for heated steering wheel switch | With vehicle in ON mode: about battery voltage |
