Exploded View

  1. Transfer Case Assembly

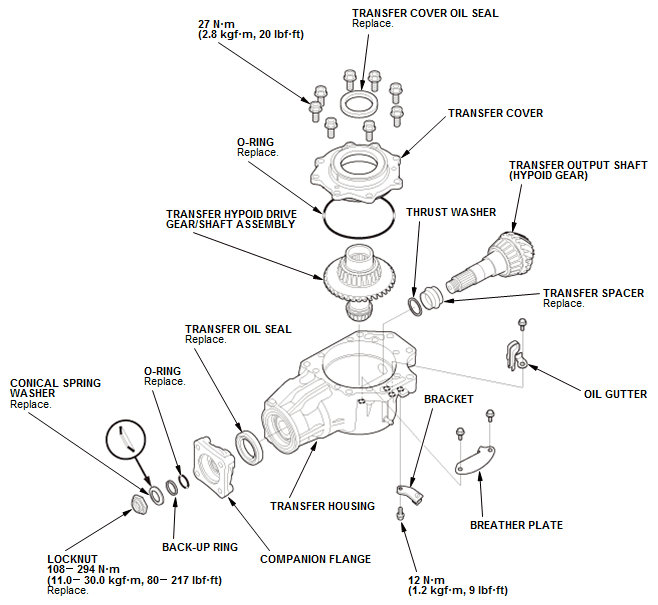

    Fig 1: Exploded View Of Transfer Case Assembly With Torque Specifications
    GHH196503Courtesy of HONDA, U.S.A., INC.
