Transfer Case Assembly Disassembly And Reassembly (A/T, With SH-AWD): Notes

Special Tools Required

Image Description/Tool Number

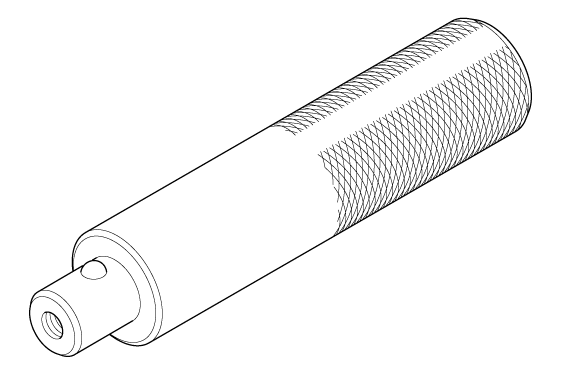

GHH157152Courtesy of HONDA, U.S.A., INC.
Driver Handle, 15 x 135L 07749-0010000

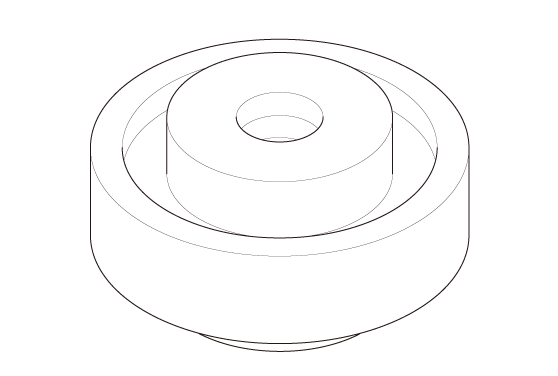

GHH157153Courtesy of HONDA, U.S.A., INC.
Oil Seal Driver Attachment, 65 mm 07JAD-SH3010A

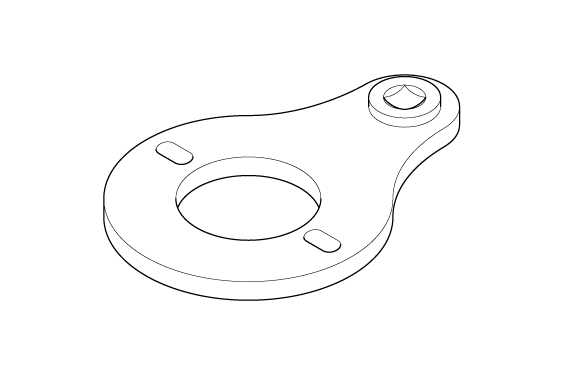

GHH157154Courtesy of HONDA, U.S.A., INC.
Holder, Companion 07PAB-0020000
