Center Switch Panel/Interface Dial Connector For Inputs And Outputs (With Auto Idle Stop System) (2015-17)

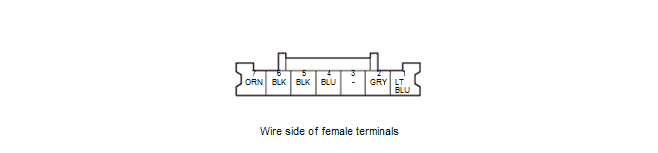

CENTER SWITCH PANEL/INTERFACE DIAL 7P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ACC DCDC | Power source for accessories (via DC-DC converter ACC relay) |
| 2 | ILLUMI+ | Detects parking light on signal |
| 3 | Not used | - - - |
| 4 | JOG | Outputs center switch panel/interface dial operation signal |
| 5 | JOG SH | Shield for terminal No. 4 |
| 6 | GND | Ground for center switch panel/interface dial (G302) |
| 7 | ILL- (LED) | Detects illumination control signal |
