Rearview Camera Connector For Inputs And Outputs (2018-19)
'18 KA/KC models and '18-19 KX model

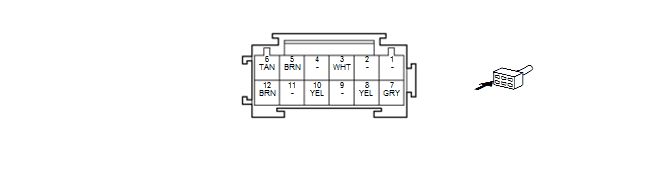

REARVIEW CAMERA 12P CONNECTOR (male terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | Not used | - - - |
| 2 | Not used | - - - |
| 3 | CAMERA VCC | Power source for rearview camera |
| 4 | Not used | - - - |
| 5 | CAMERA BIT 0 | Mode select signal for rearview camera |
| 6 | CAMERA BIT 1 | Mode select signal for rearview camera |
| 7 | CAMERA SH | Shield for terminals No. 10 and No. 12 |
| 8 | CAMERA ADPT | Control signal for rearview camera |
| 9 | Not used | - - - |
| 10 | CAMERA V | Outputs video signal to audio unit or audio-navigation unit |
| 11 | Not used | - - - |
| 12 | CAMERA GND | Ground for rearview camera |
'19 KA/KC models

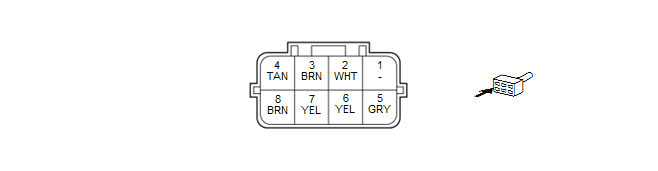

REARVIEW CAMERA 8P CONNECTOR (male terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | Not used | - - - |
| 2 | CAMERA VCC | Power source for rearview camera |
| 3 | CAMERA BIT 0 | Mode select signal for rearview camera |
| 4 | CAMERA BIT 1 | Mode select signal for rearview camera |
| 5 | CAMERA SH | Shield for terminals No. 7 and No. 8 |
| 6 | CAMERA ADPT | Control signal for rearview camera |
| 7 | CAMERA V | Outputs video signal to audio unit or audio-navigation unit |
| 8 | CAMERA GND | Ground for rearview camera |
