DTC 32-08: EPS Control Unit Internal Circuit (Current Sensor); DTC 32-09: Motor Current Correlation

NOTE: Before you troubleshoot, review the how to troubleshoot the EPS .

DTC (EPS)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Turn the vehicle to the OFF (LOCK) mode, then start the engine.

   - 4. Turn the steering wheel to the right or left at least 5 times.

   - 5. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   32-08 EPS Control Unit Internal Circuit (Current Sensor)
   32-09 Motor Current Correlation

   Is DTC 32-08 or 32-09 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

2. Open wire check (EPS MTR lines) 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   EPS control unit connector B (16P)

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EPS control unit connector B (16P): disconnected
   Test point 1	EPS control unit connector B (16P) No. 1 - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (2018-19)
   Test point 2	EPS control unit connector B (16P) No. 2 - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (2018-19)

   Test point 1	EPS control unit connector B (16P) No. 1 - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (2018-19)
   Test point 2	EPS control unit connector B (16P) No. 3 - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (2018-19)

   Test point 1	EPS control unit connector B (16P) No. 2 - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (2018-19)
   Test point 2	EPS control unit connector B (16P) No. 3 - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System), or EPS Control Unit Connector for Inputs and Outputs (2018-19)

   Is there continuity?

   YES

   The EPS MTR wires are OK. Go to step 4.

   NO

   Go to step 3.

3. Open wire check (EPS MTR lines) 2

   -1. Disconnect the following connector.

   EPS motor 3P connector

   - 2. On the EPS motor side, check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EPS control unit connector B (16P): disconnected
   	EPS motor 3P connector: disconnected

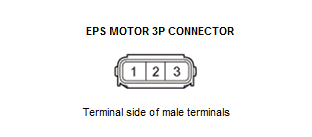

   Test point 1	EPS motor 3P connector No. 1
   Test point 2	EPS motor 3P connector No. 2

   Test point 1	EPS motor 3P connector No. 1
   Test point 2	EPS motor 3P connector No. 3

   Test point 1	EPS motor 3P connector No. 2
   Test point 2	EPS motor 3P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open in the wire between the EPS control unit and the EPS motor.

   NO (L4 engine)

   Open circuit in EPS motor. Replace the EPS motor .

   NO (V6 engine)

   Open circuit in EPS motor. Replace the steering gearbox - Refer to: Steering Gearbox Removal and Installation (With SH-AWD), or Steering Gearbox Removal and Installation (Without SH-AWD) .

4. EPS control unit check (update)

   -1. Reconnect the following connector.

   EPS control unit connector B (16P)

   - 2. Update the EPS control unit if it does not have the latest software.

   - 3. Start the engine.

   - 4. Turn the steering wheel to the right or left at least 5 times.

   - 5. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   32-08 EPS Control Unit Internal Circuit (Current Sensor)
   32-09 Motor Current Correlation

   Is DTC 32-08 or 32-09 indicated?

   YES

   Replace the EPS control unit .

   NO

   Troubleshooting is complete.
