Exploded View

NOTE:

For these operations, refer to the complete procedure as needed.

  1. Steering Gearbox

    Exploded view

    L4 engine

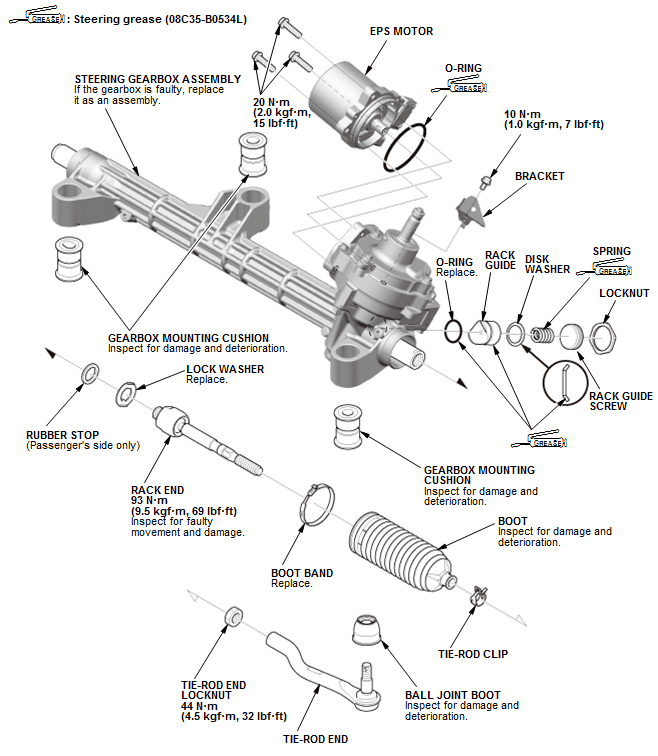

    Fig 1: Steering Gearbox Exploded View With Torque Specifications (L4)
    GHH203971Courtesy of HONDA, U.S.A., INC.

    V6 engine

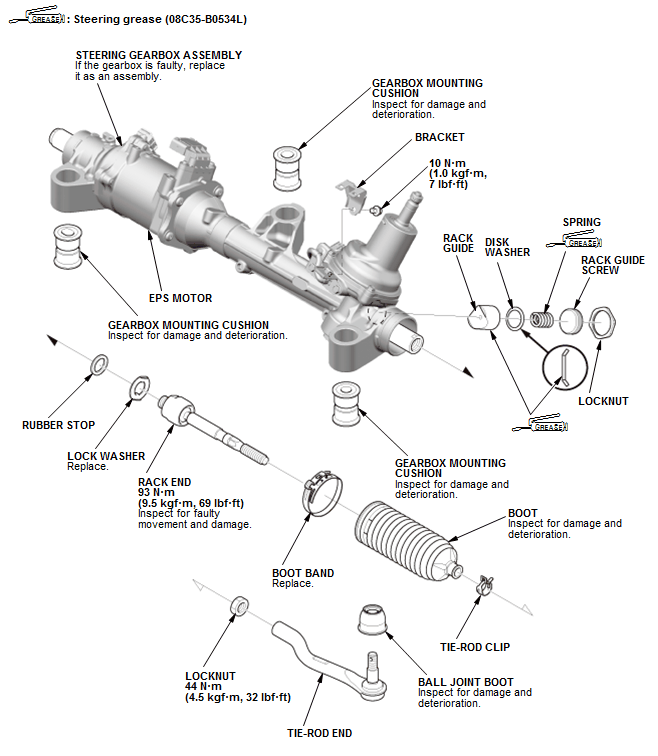

    Fig 2: Steering Gearbox Exploded View With Torque Specifications (V6)
    GHH203972Courtesy of HONDA, U.S.A., INC.
