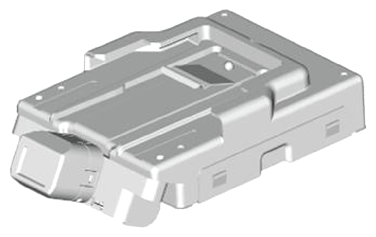

LKAS Camera/Control Unit

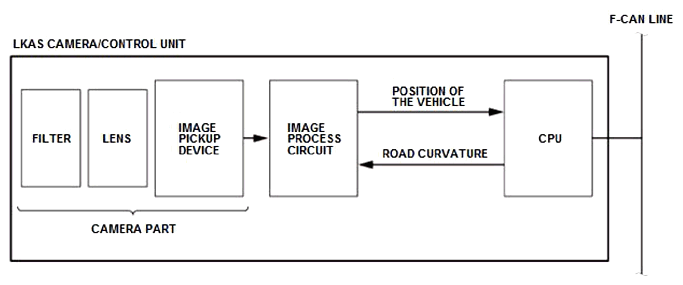

The LKAS camera/control unit is mounted on the windshield. The LKAS camera/control unit includes a camera (filter, lens, and image pickup device), an image process circuit, and CPU.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.
