Door Key Cylinder Switch Test: Test

  1. Front Door Panel - Remove
  2. Door Key Cylinder Switch - Test
    GHH326582GHH326583Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH326582GHH326583Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Disconnect the driver's door latch connector.

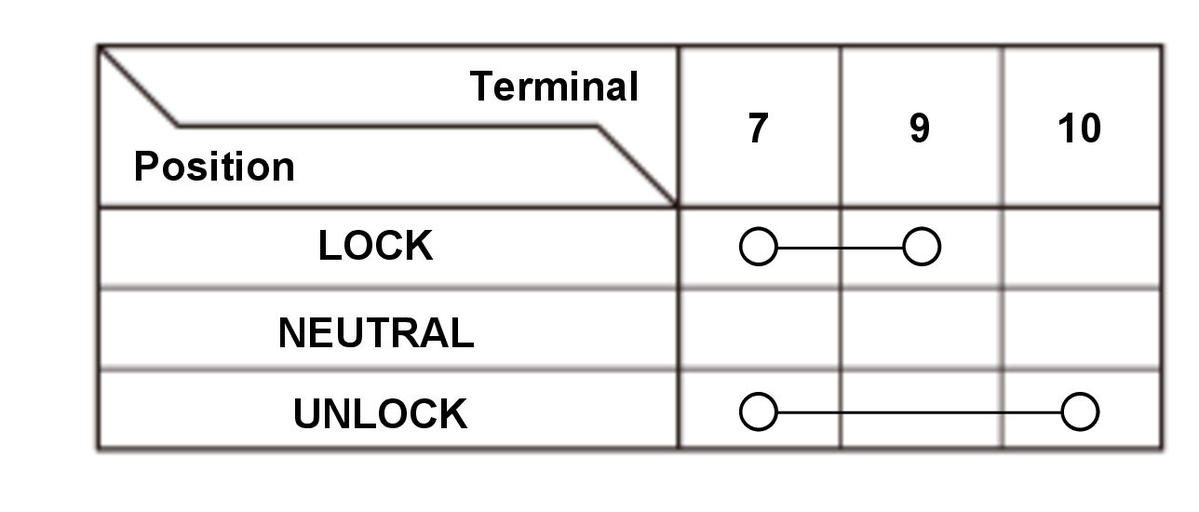

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
