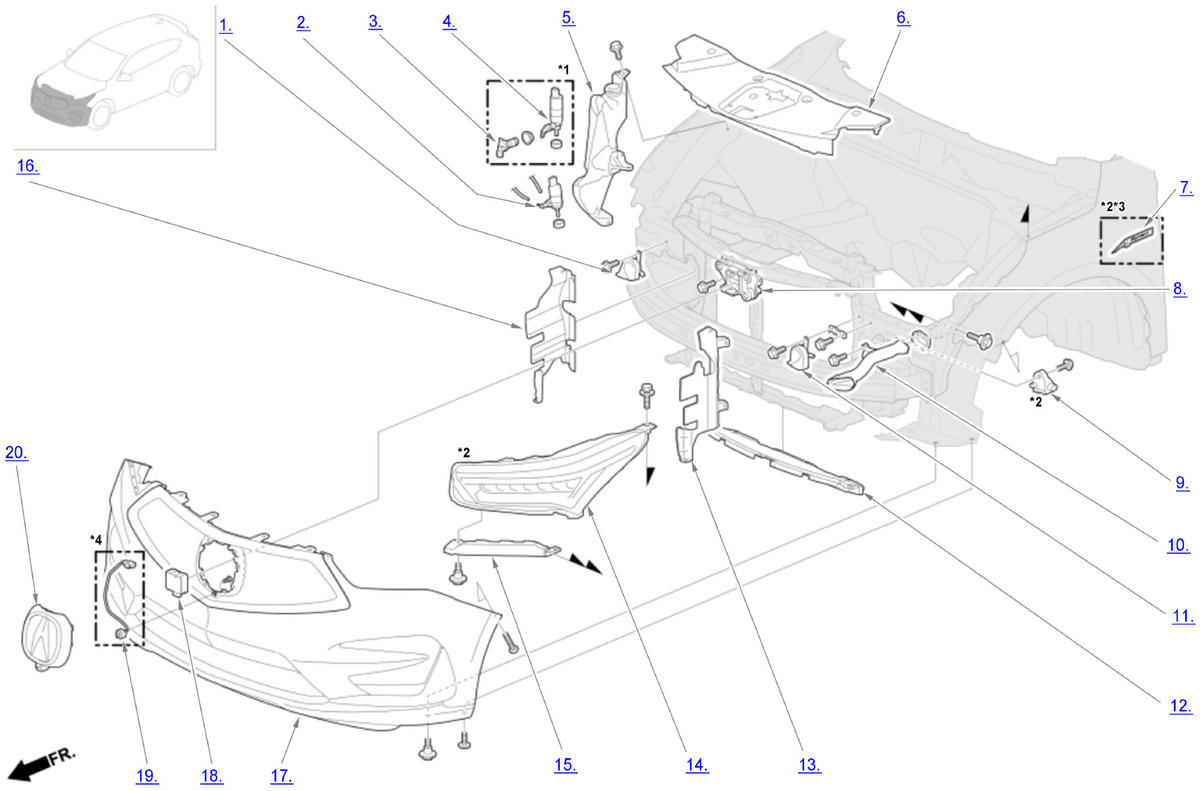

Front Bumper Area Component Locator
Front Bumper Area Legend (items 1-20)
| Description | Callout |
|---|---|
| Horn (HI) | 1 |
| Windshield Wiper Control Unit/Motor | 2 |
| Washer Level Sensor | 3 |
| Headlight Washer Motor | 4 |
| Washer Reservoir | 5 |
| Front Grille Cover | 6 |
| Front A Spec Emblem | 7 |
| Millimeter Wave Radar Bracket | 8 |
| Front Impact Sensor | 9 |
| 12 Volt Battery Duct B | 10 |
| Horn (LO) | 11 |
| Lower Front Bumper Air Screen | 12 |
| Front Bumper Air Screen | 13 |
| Headlight | 14 |
| Corner Upper Beam | 15 |
| Front Bumper Air Screen | 16 |
| Front Bumper | 17 |
| Millimeter Wave Radar | 18 |
| Multi View Front Camera | 19 |
| Front "A" Emblem Assembly | 20 |

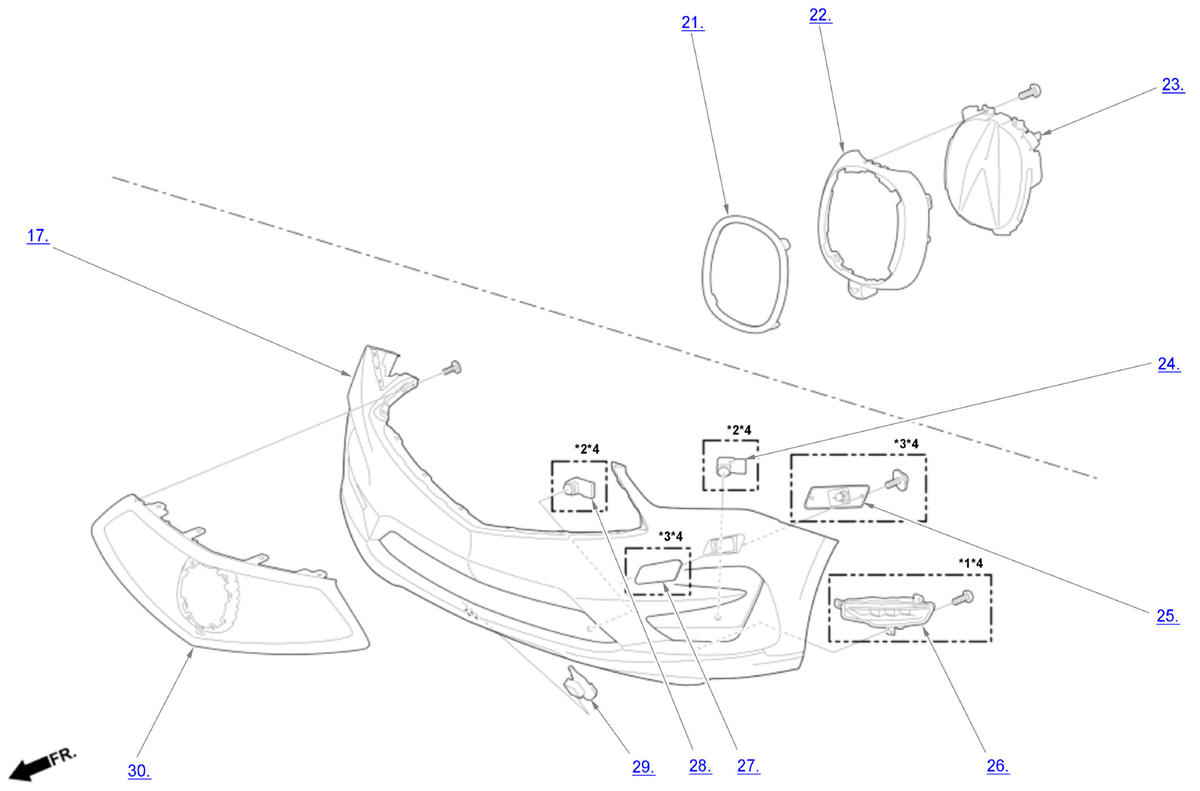

Front bumper area legend (items 21-30)
| Description | Callout |
|---|---|
| Front Emblem Ring | 21 |
| Front Grille Emblem Base | 22 |
| Front "A" Emblem | 23 |
| Front Corner Sensor | 24 |
| Headlight Washer Nozzle | 25 |
| Fog Light | 26 |
| Headlight Washer Nozzle Cover | 27 |
| Front Center Sensor | 28 |
| Outside Air Temperature Sensor | 29 |
| Front Grille | 30 |
| *1: With Fog Light. *2: With Front Parking Sensor. *3: With Headlight Washer. *4: Part(s) are shown for one side only as the procedure is the same for both sides. |
