Exploded View

For replacement of components listed below, see Repair Procedure .

Fig 1: Drive Belt Routing & Pulley Bolt

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

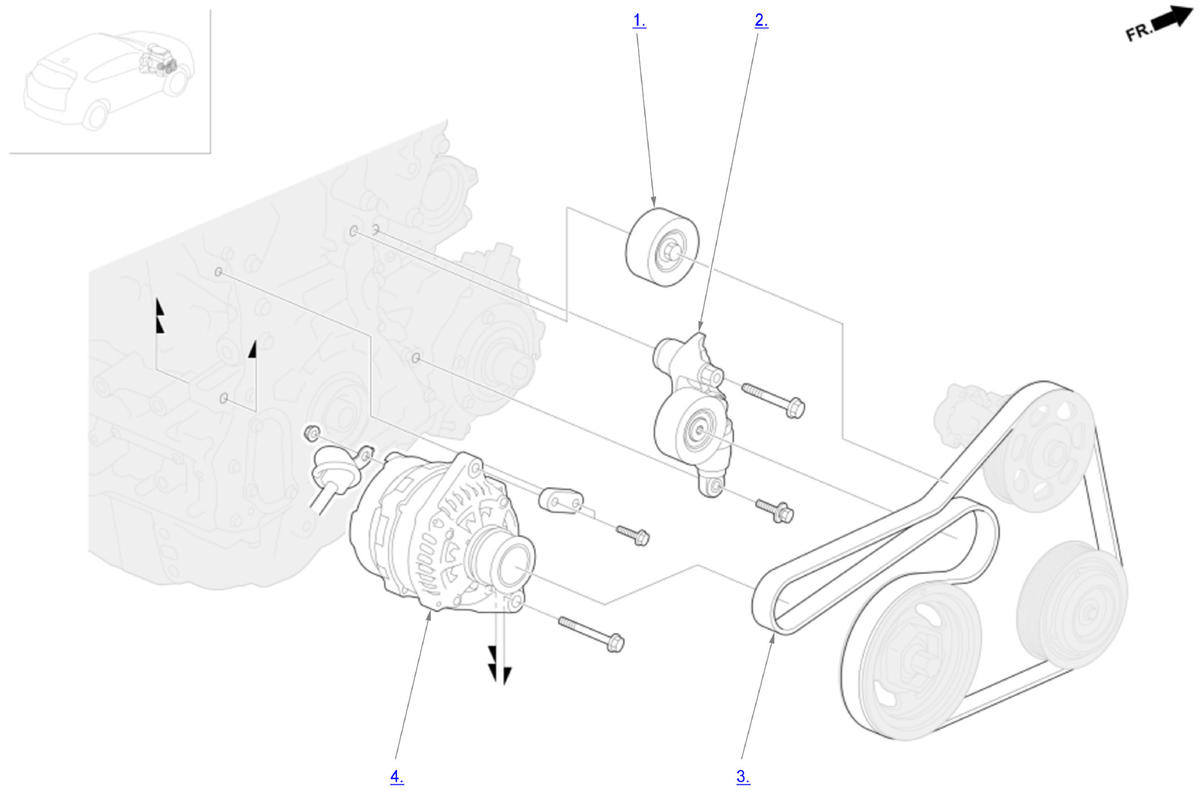

Alternator Area Components

Component Name	Callout
Drive Belt Idler Pulley	1
Drive Belt Auto-Tensioner	2
Drive Belt	3
Alternator	4

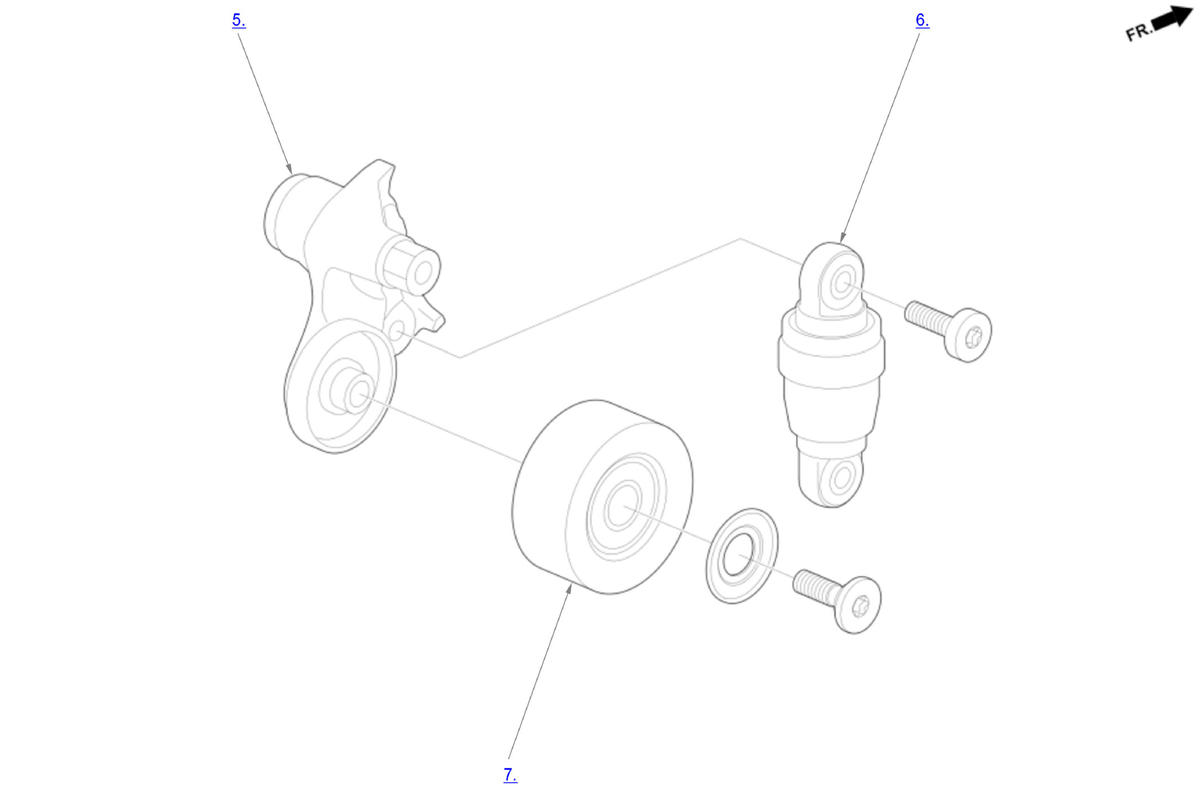

Drive Belt Auto-Tensioner Bracket	5
Drive Belt Auto-Tensioner Damper	6
Drive Belt Auto-Tensioner Pulley	7
