Repair Procedure

.

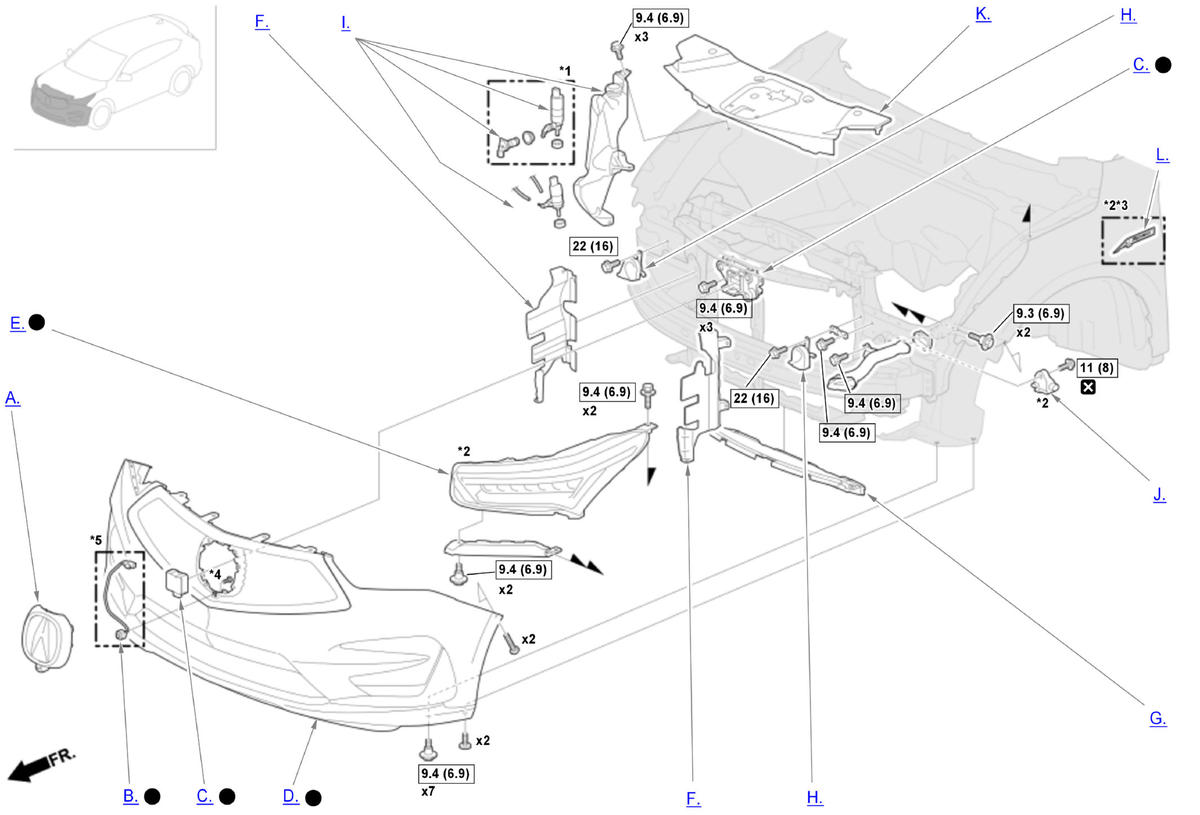

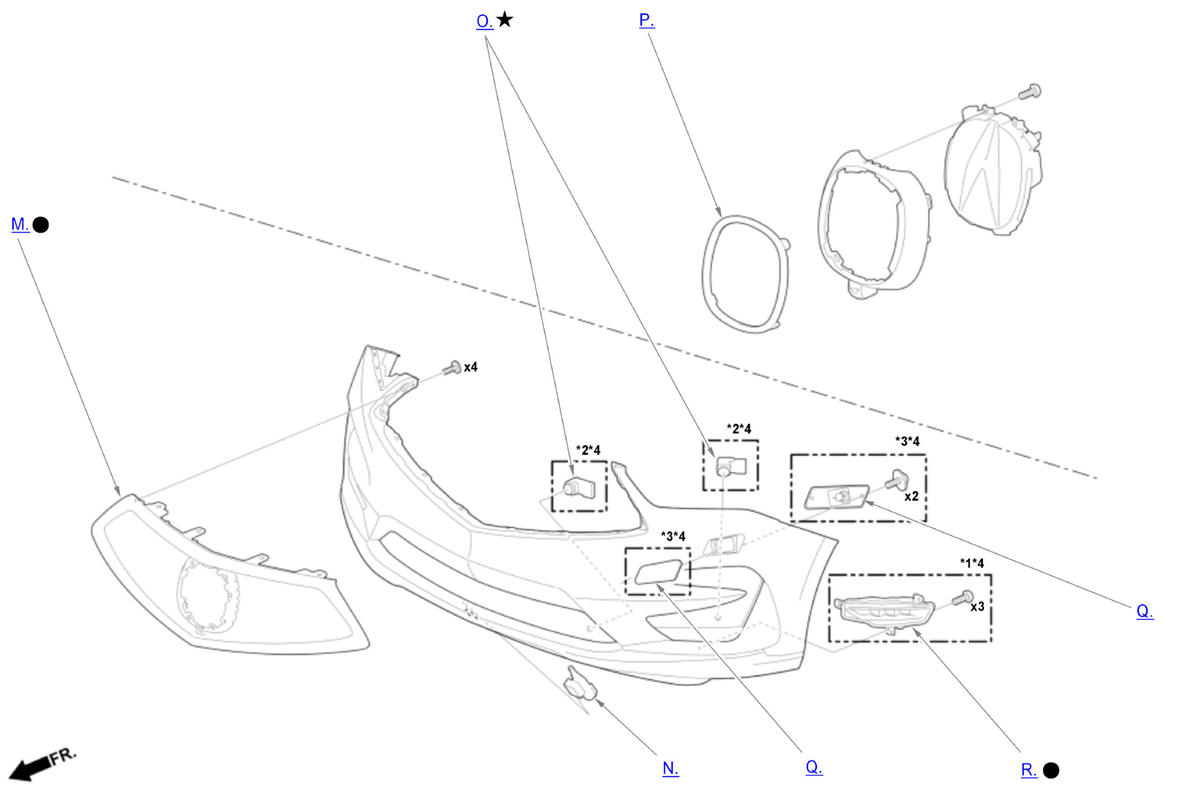

Fig 1: Exploded view of front bumper components with torque specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, (N.m, Kgf-m, lbf.ft/lbf.in)

: Replace

: Warning/Caution

: Inspection/Adjustment

: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, (N.m, Kgf-m, lbf.ft/lbf.in)

: Replace

: Warning/Caution

: Inspection/Adjustment

: Learning

■: SPL Tool

: Required Removal

1. A. -

   Courtesy of HONDA, U.S.A., INC.

2. B. -

   Sub-procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

   After installation

   • Multi view front camera aiming (for some models) - refer to:
3. C. -

   Key information

   Do the following before starting your work.

   Remove:

   • Front "a" emblem assembly

   Sub-procedure

   Removal

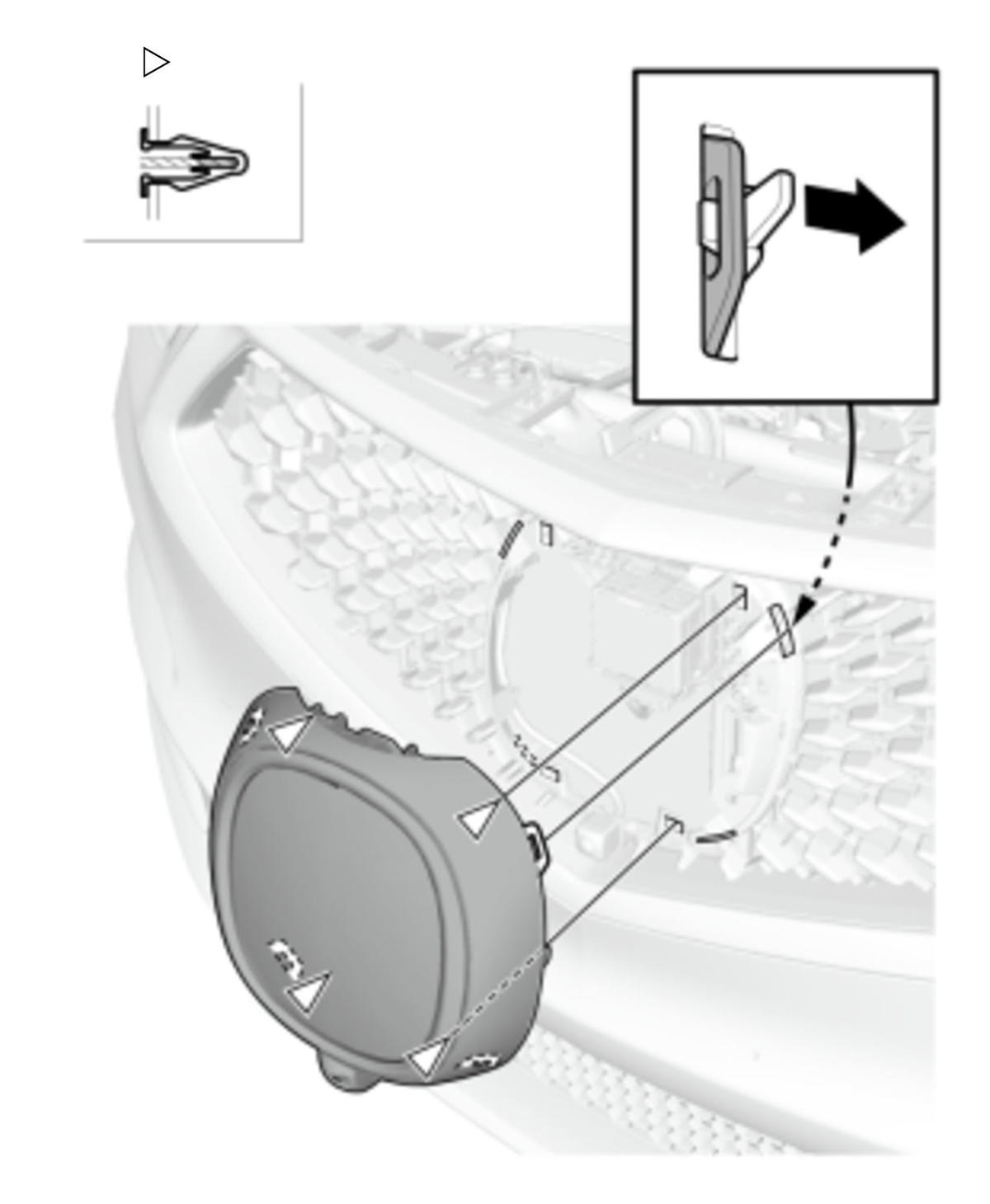

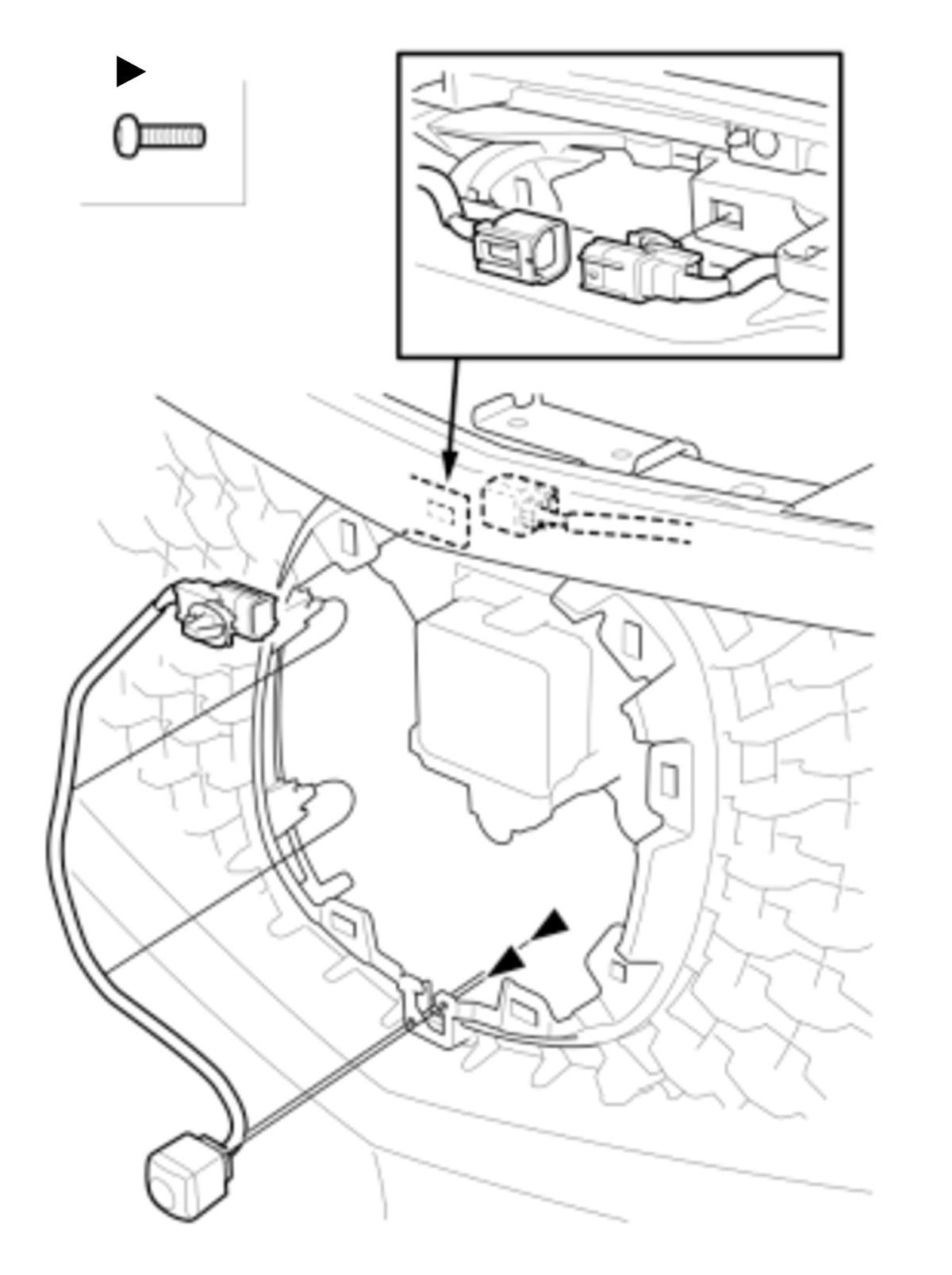

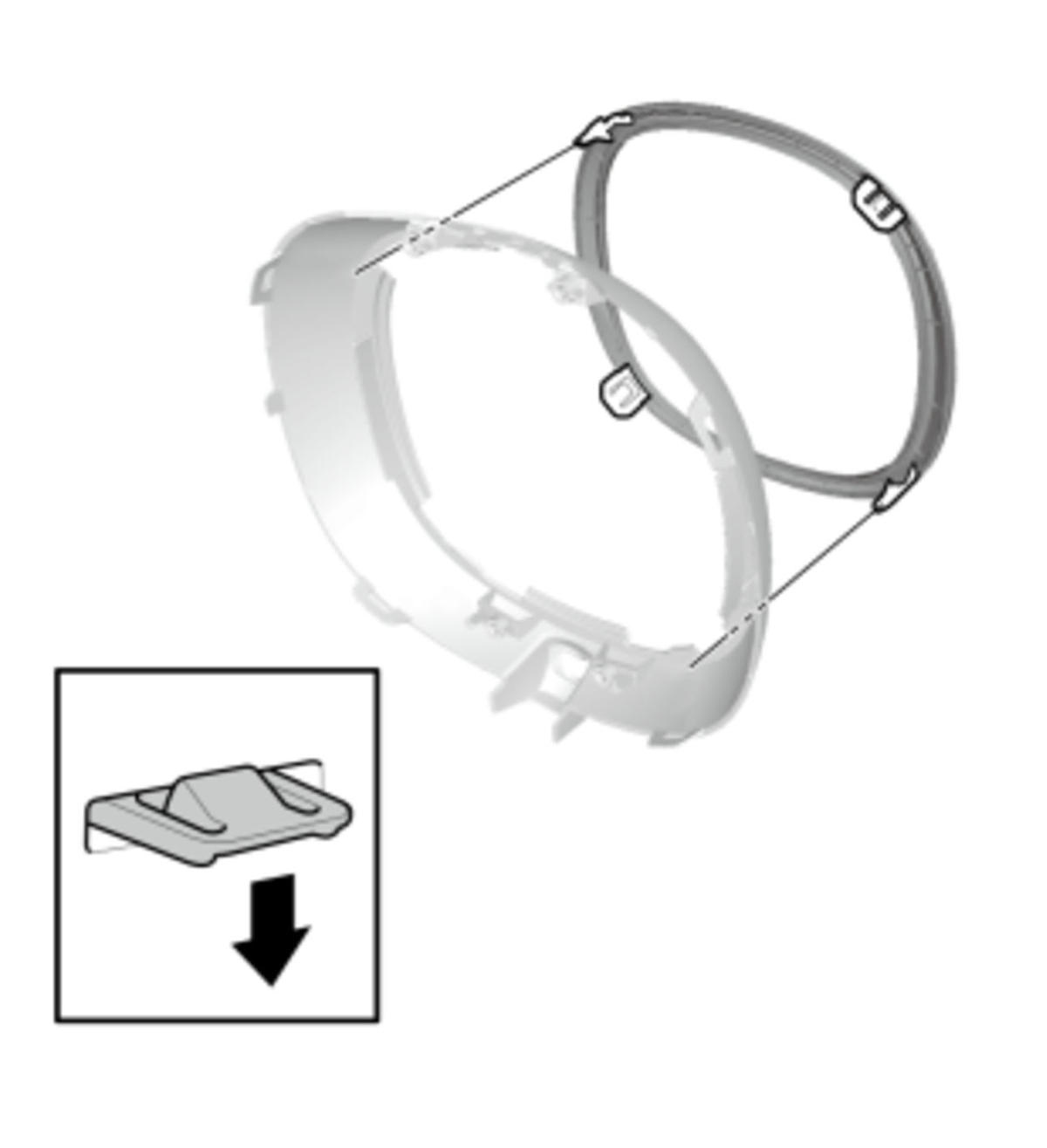

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After installation

   • Millimeter wave radar aiming - refer to:
4. D. -

   Key information

   Do the following before starting your work.

   Remove:

   • Front grille cover

   Sub-procedure

   Removal

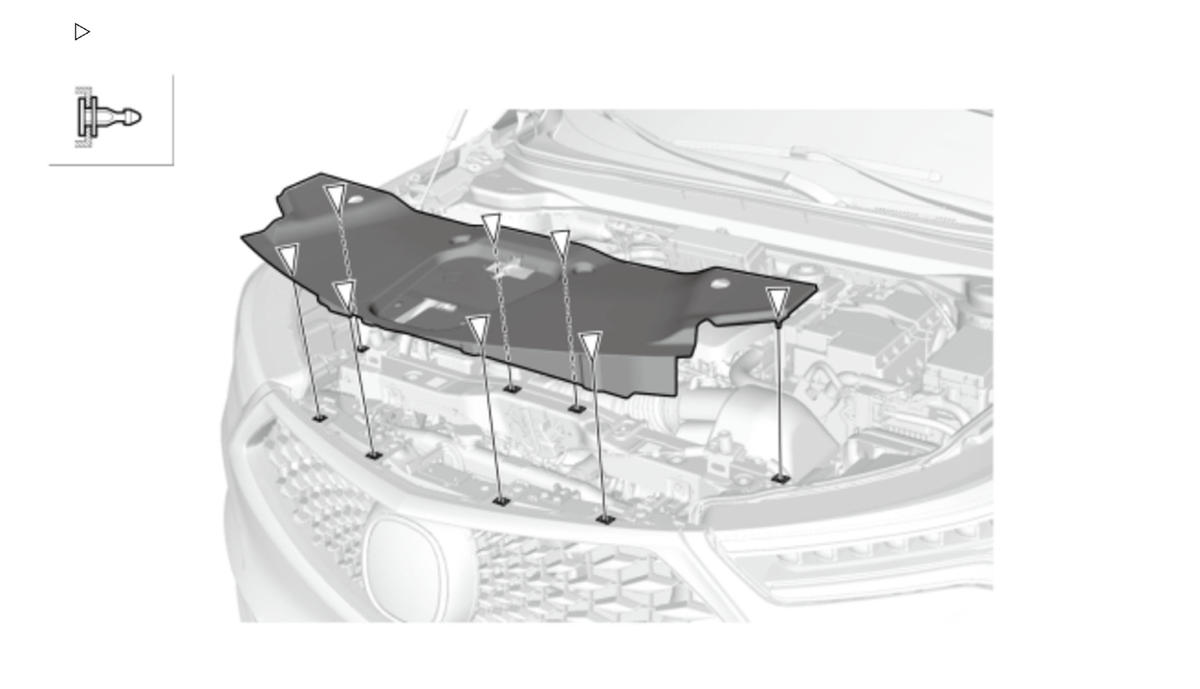

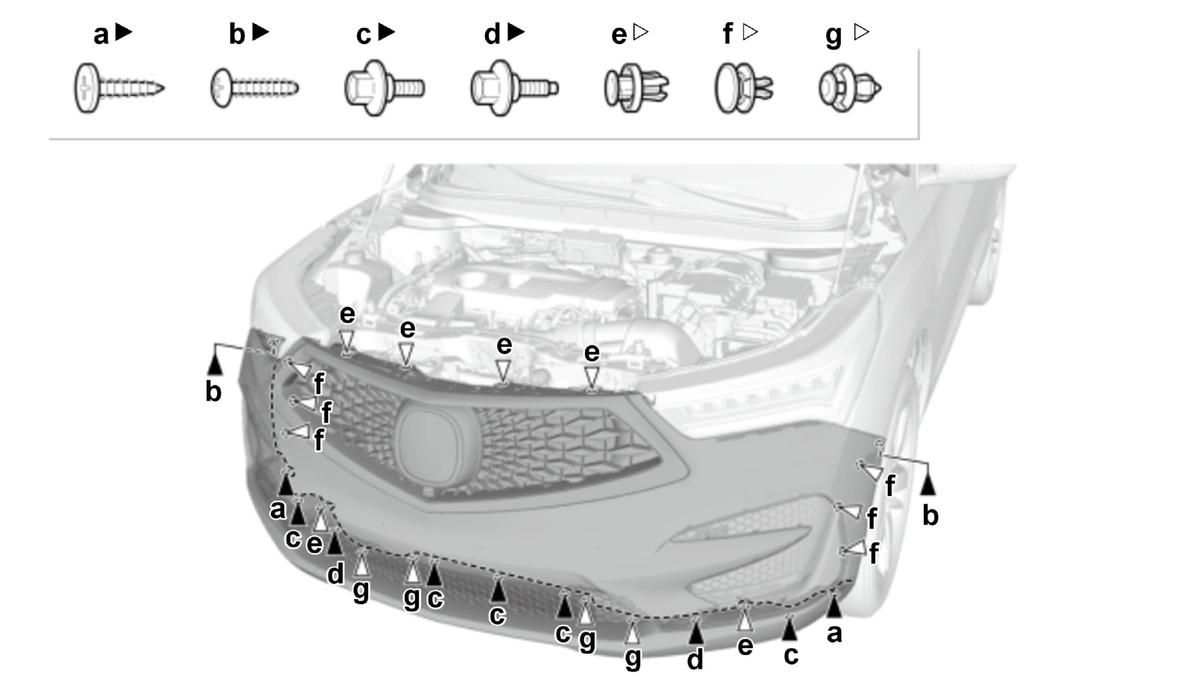

   1. Refer to the figure 1.

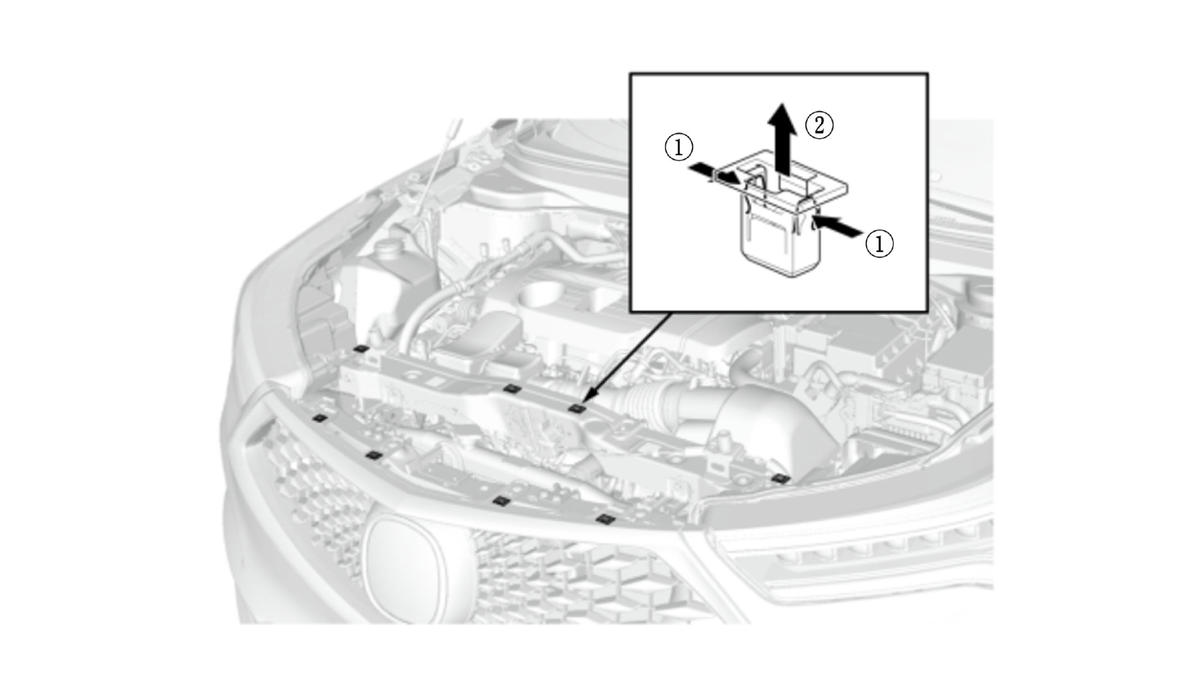

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

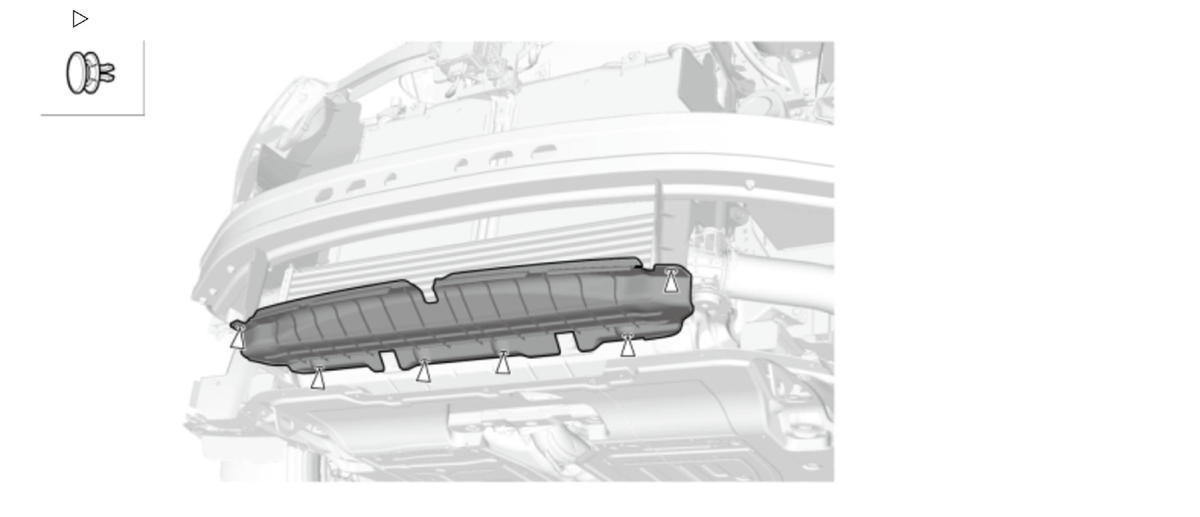

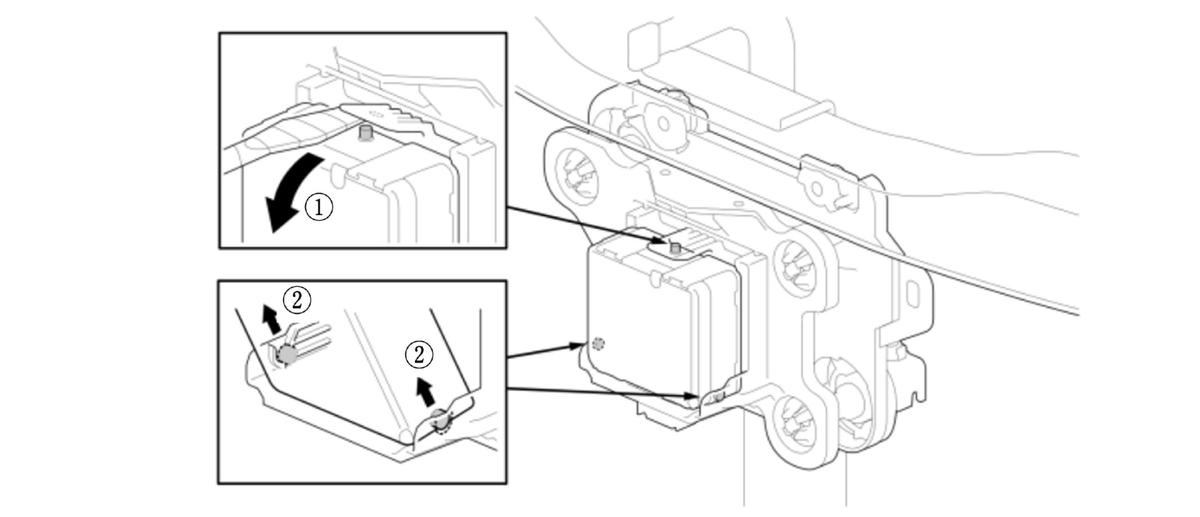

   2. Refer to the figure 2.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

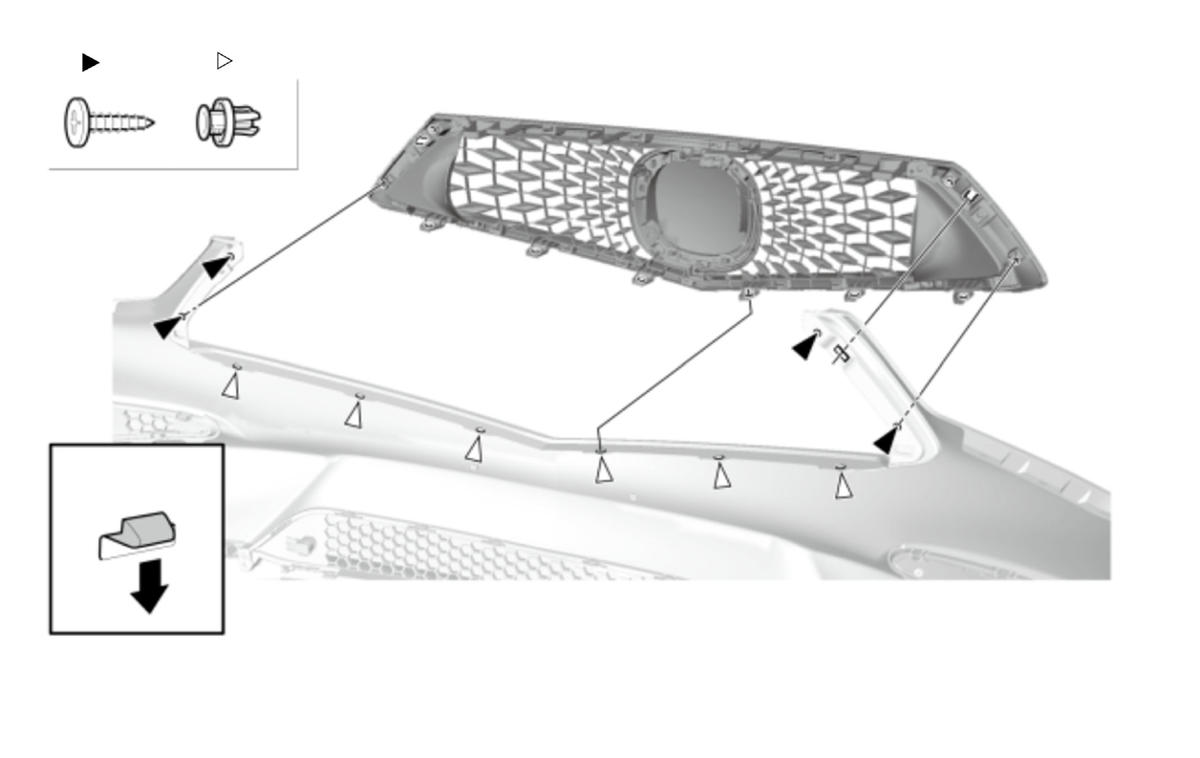

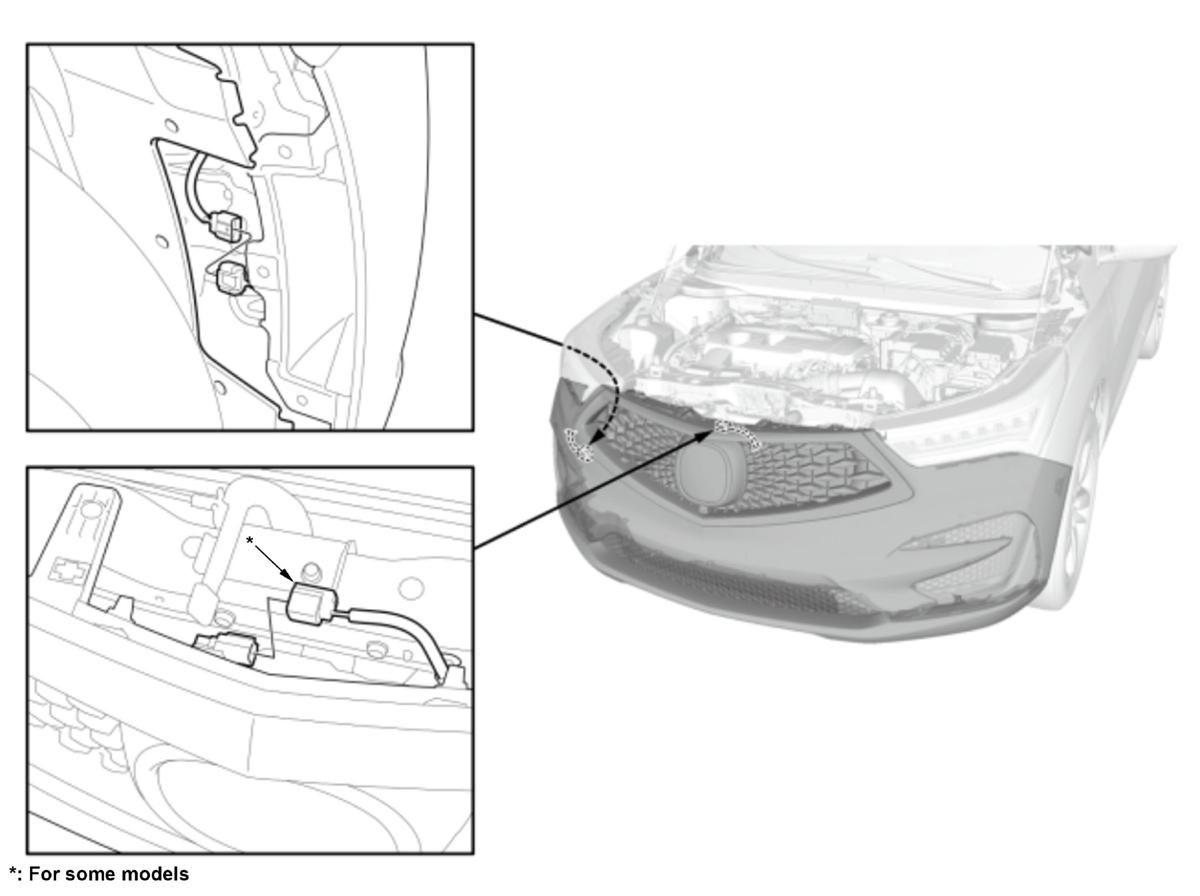

   3. Refer to the figure 3.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

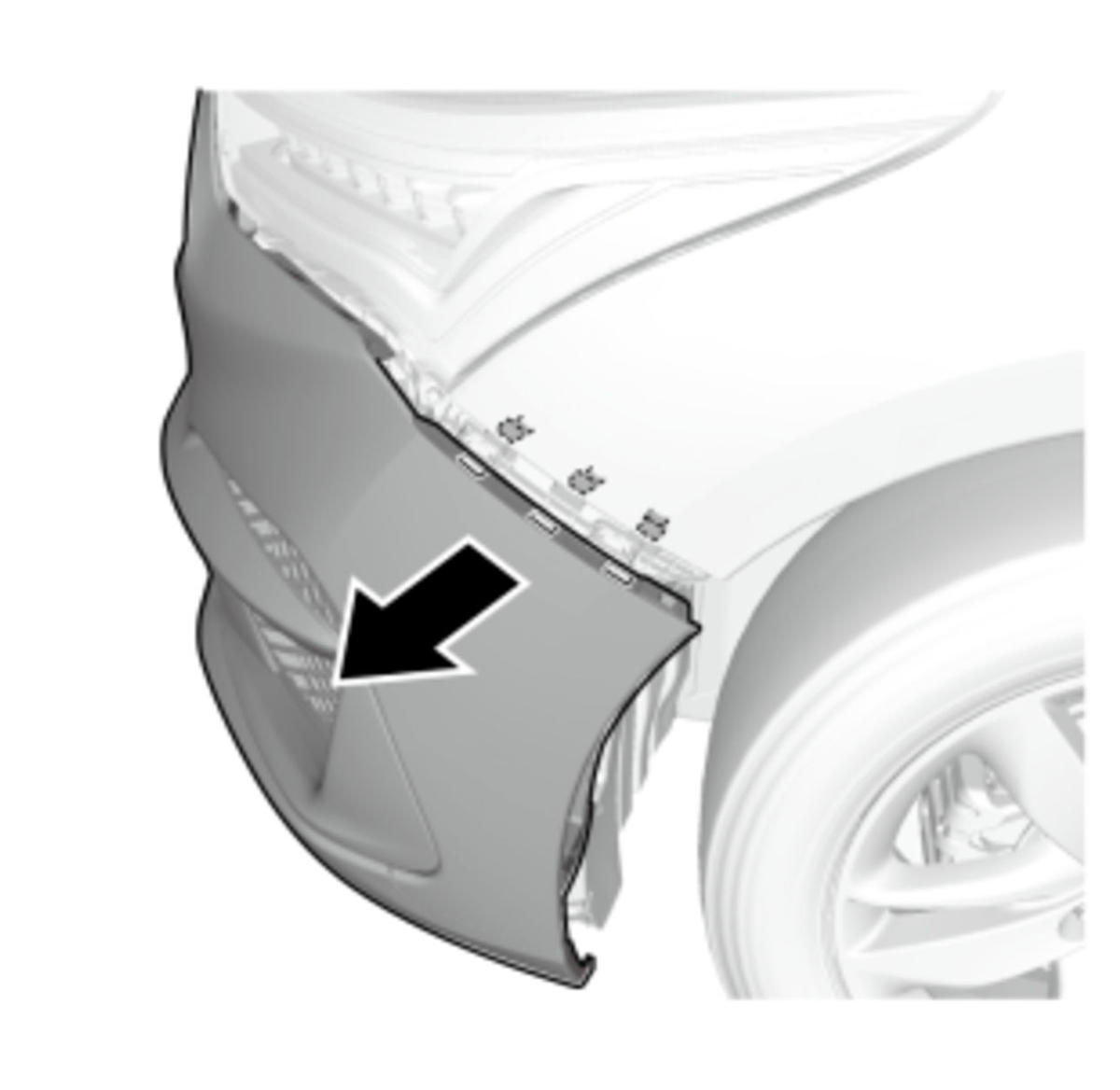

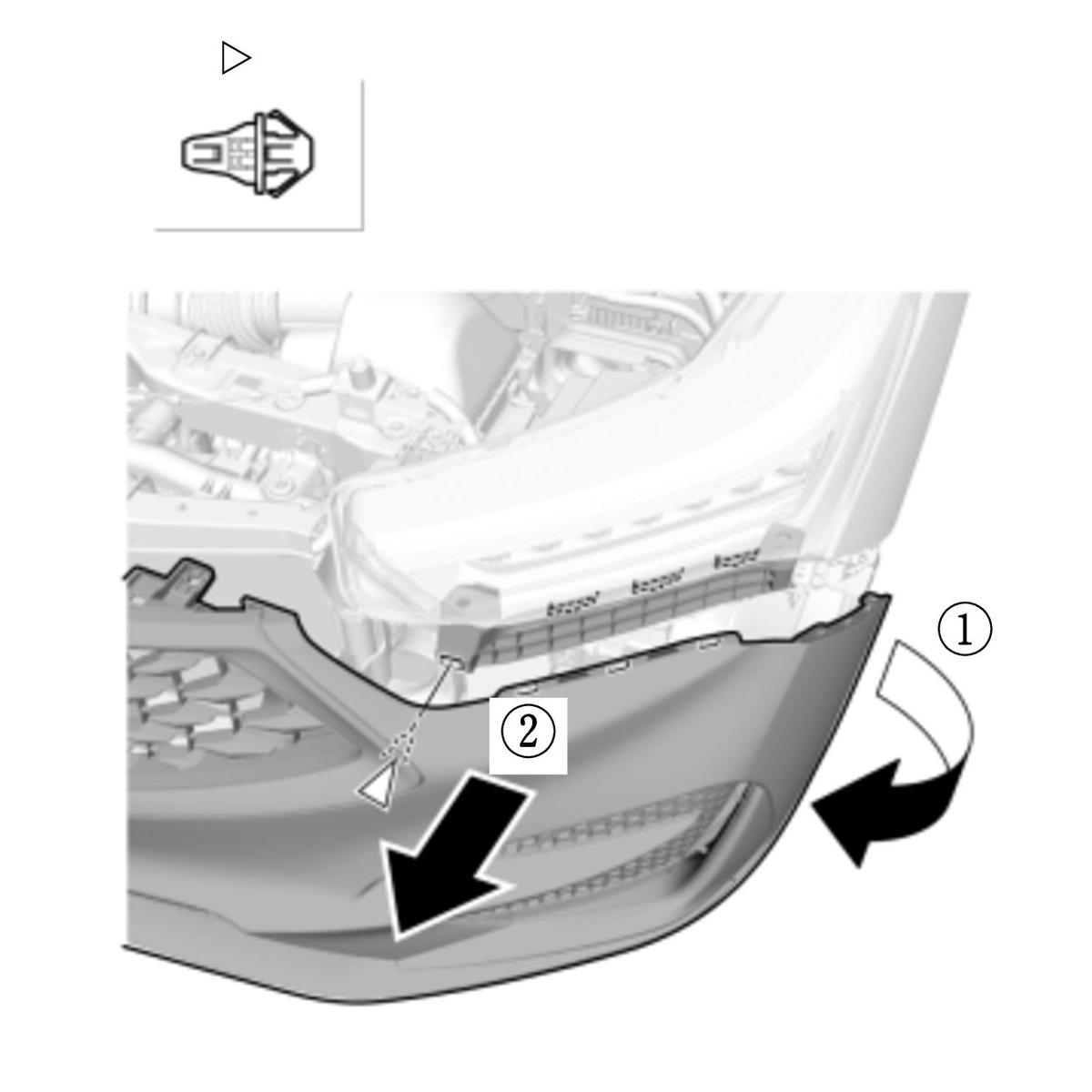

   4. Refer to the figure 4.

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

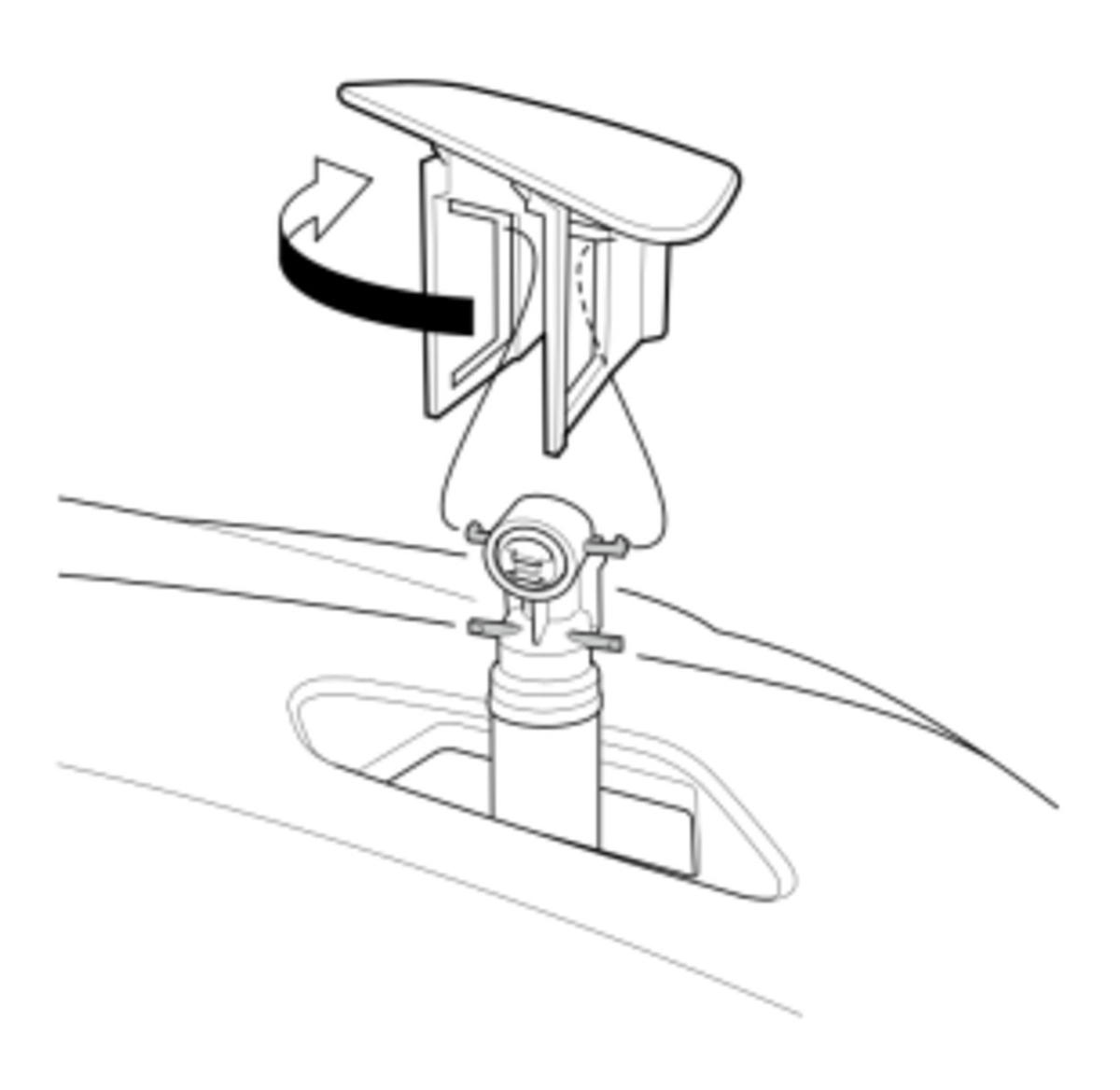

   5. With headlight washer: refer to the figure 5.

   Tube joint details (figure 5)

   Position	Condition
   h	Lock

   Position	Condition
   i	Unlock

   Figure 5 (right side)

   Courtesy of HONDA, U.S.A., INC.

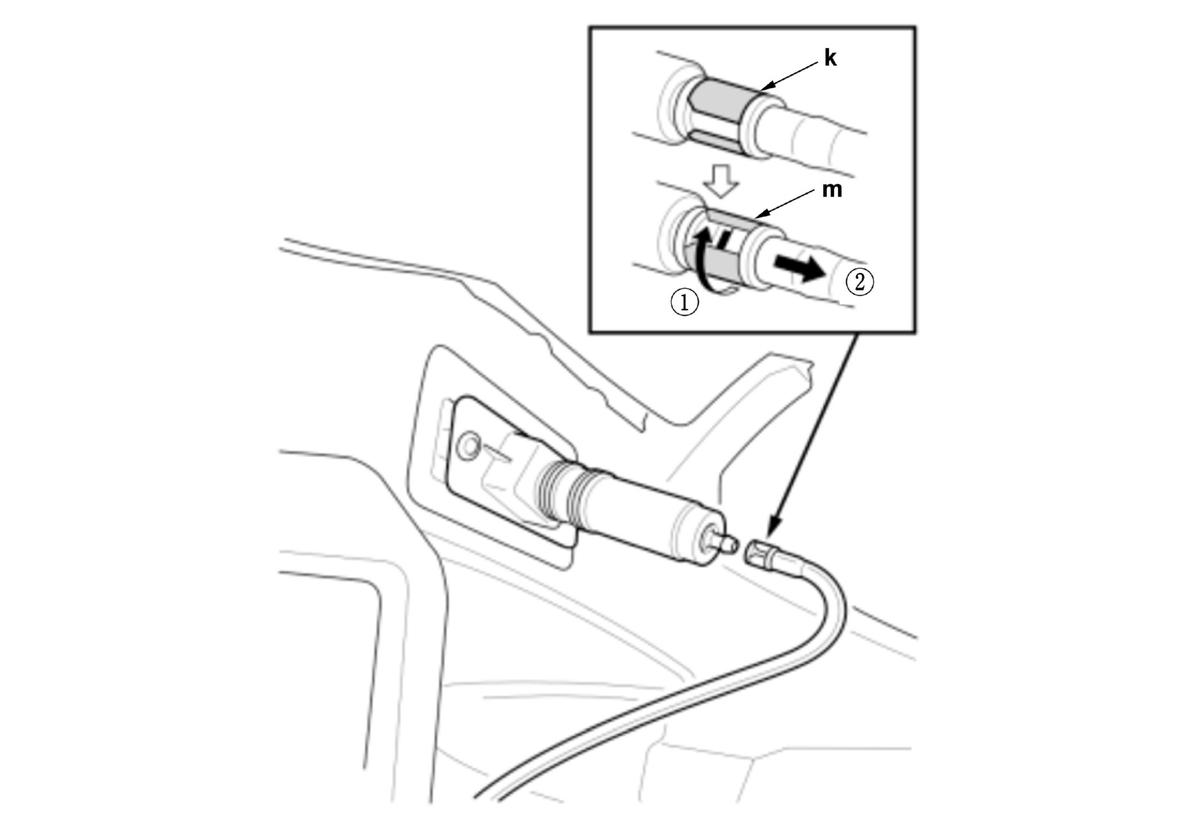

   6. With headlight washer: refer to the figure 6.

   Tube joint details (figure 6)

   Position	Condition
   k	Lock
   m	Unlock

   Figure 6 (left side)

   Courtesy of HONDA, U.S.A., INC.

   After installation

   • Multi view front camera aiming (for some models) - refer to:
5. E. -

   After installation
6. F. -

   Courtesy of HONDA, U.S.A., INC.

7. G. -

   Courtesy of HONDA, U.S.A., INC.

8. H. -

   Key information

   Do the following before starting your work.

   Remove:

   • Front bumper
9. I. -

   Sub-procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

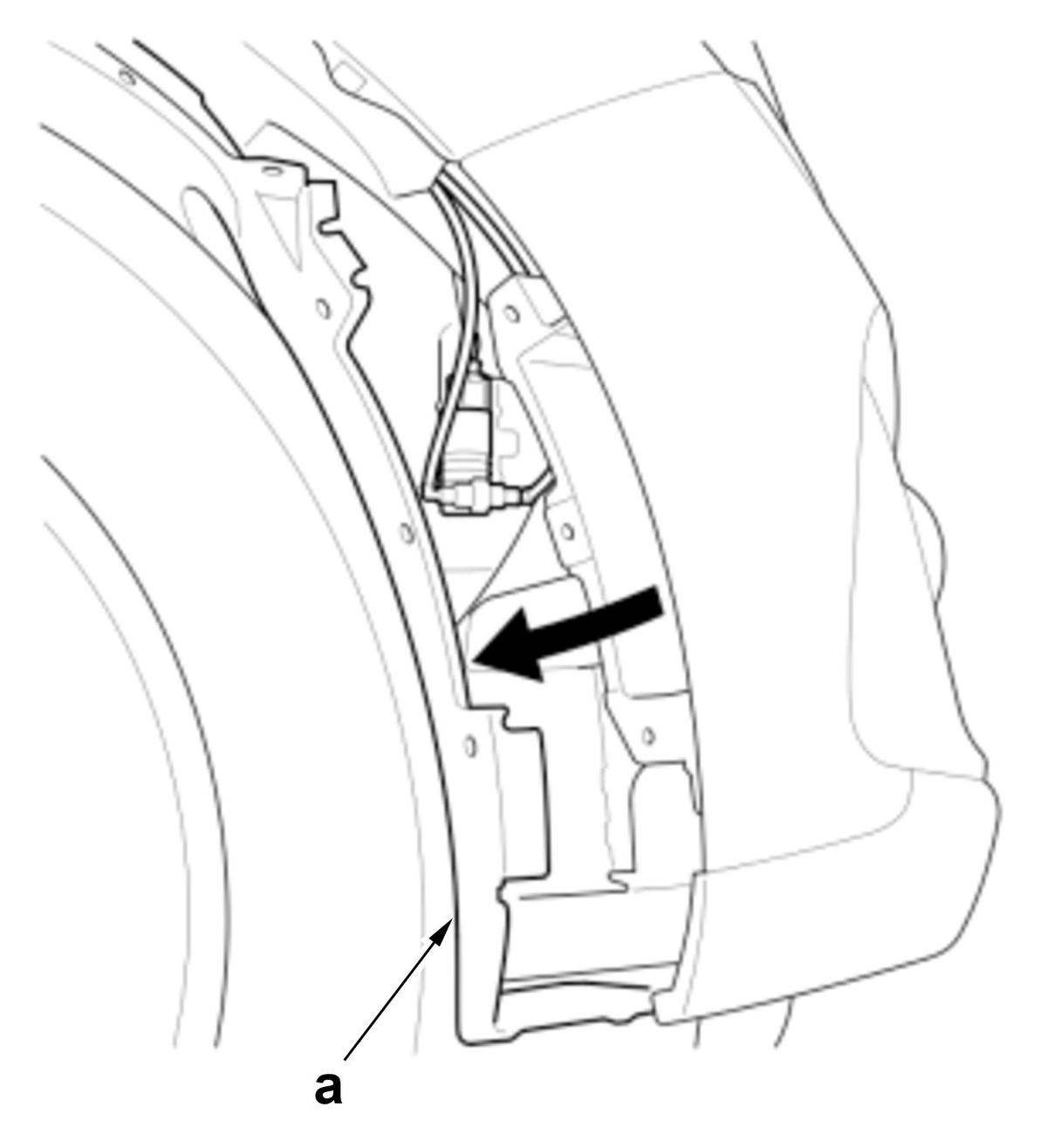

   1. Remove the right front inner fender (a) as needed. (figure 1)

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

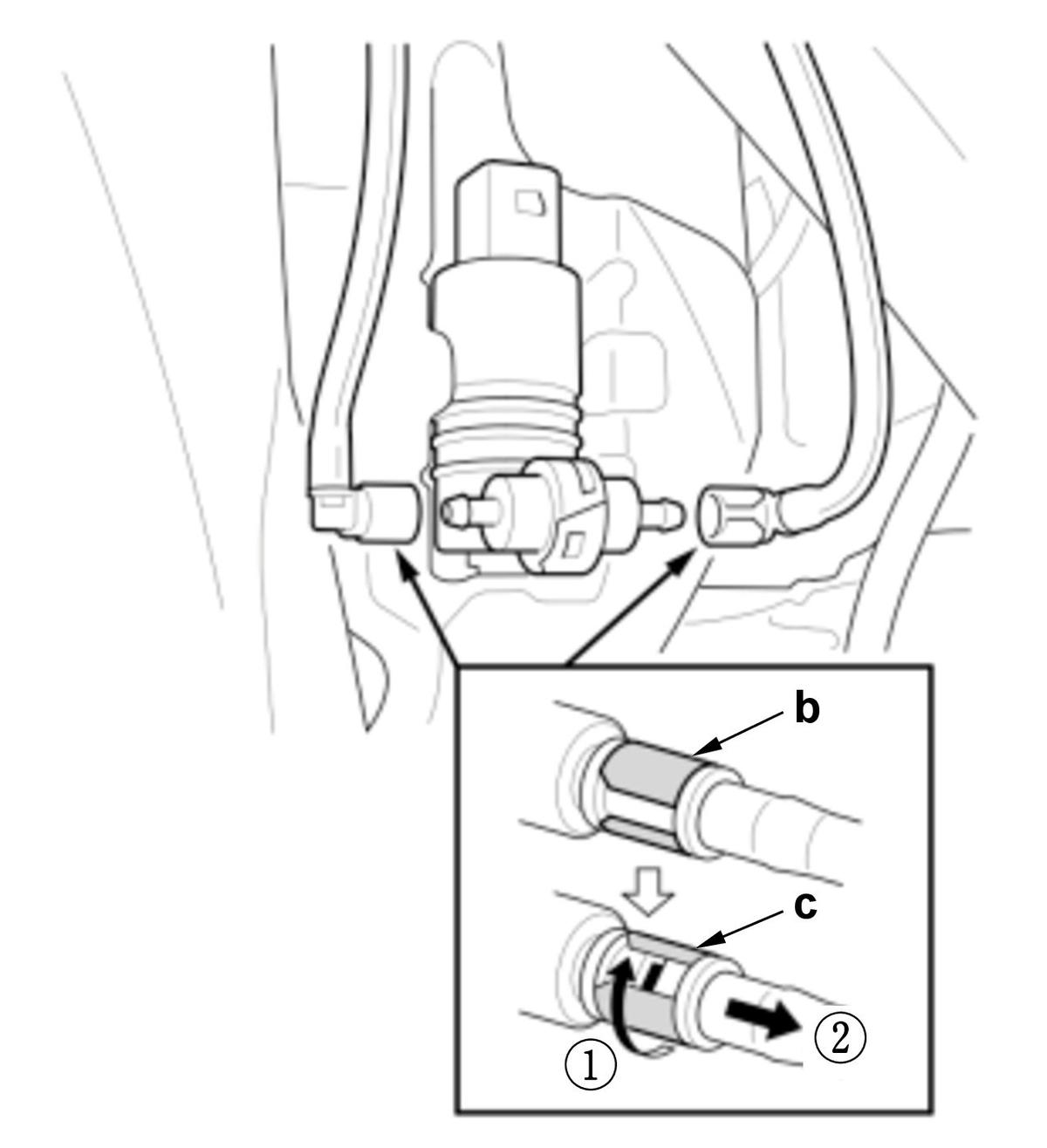

   2. Refer to the figure 2.

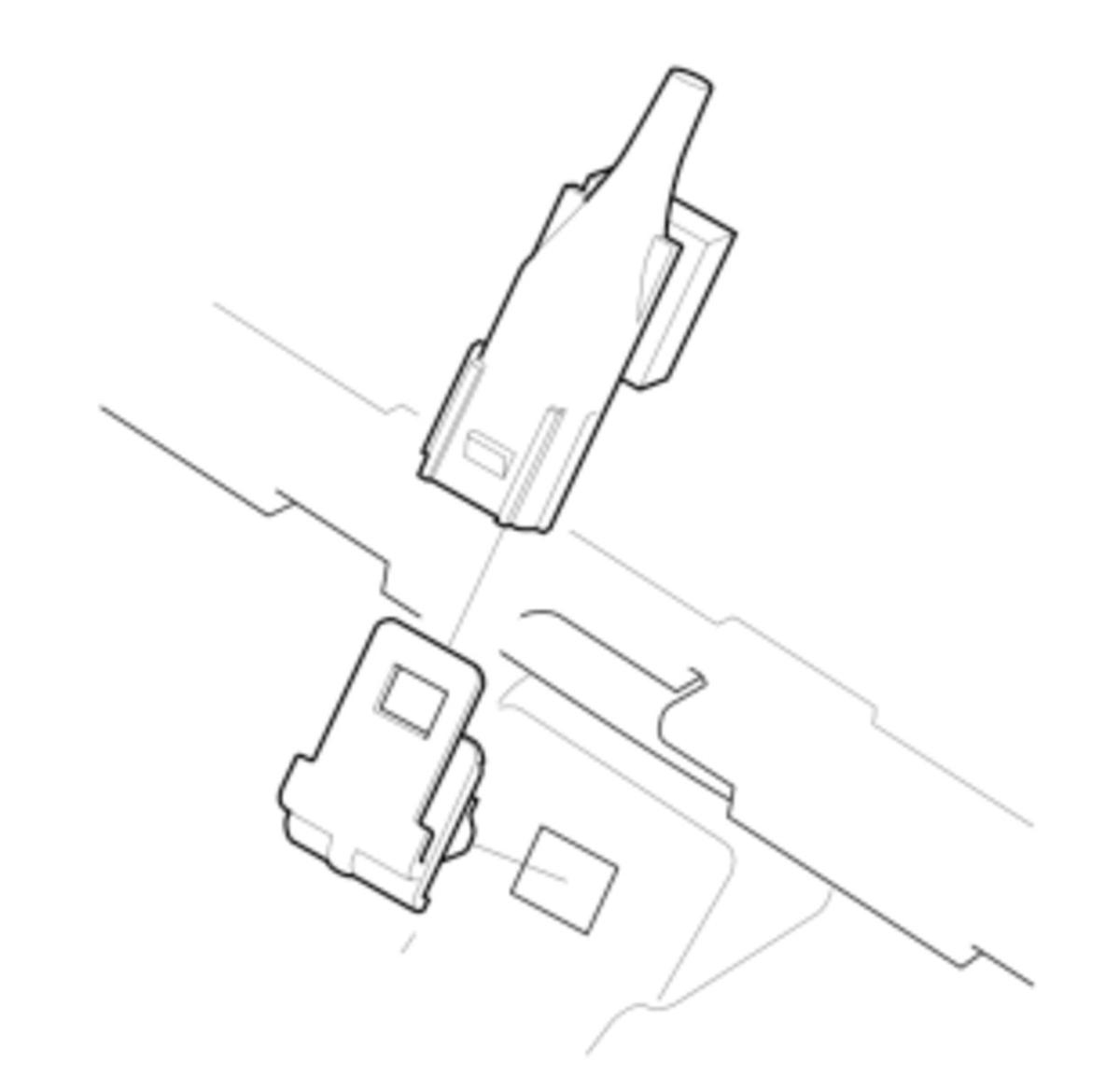

   Tube joint details (figure 2)

   Position	Condition
   b	Lock
   c	Unlock

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   3. With headlight washer: refer to the figure 3.

   Installation

   Washer reservoir capacity

   Applicable Area	Specifications
   USA and Mexico models	2.5 L (2.6 Us qt)
   Canada models	5.5 L (5.8 Us qt)

10. J. -
    NOTE:

    Srs components are located in this area. Review the and the before doing repairs or service.

    Preconditions

    • NOTE:

      Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    Key information

    Do the following before starting your work.

    Remove:

    • Front bumper

    Sub-procedure

    Installation

    NOTE:

    Before installing the front bumper, make sure the srs indicator works normally.

    After installation

    • 1.
    • 2. Turn the vehicle to the on mode, and check that the srs indicator comes on for about 6 seconds and then goes off.
11. K. -

    Sub-procedure

    Removal

    1. Refer to the figure 1.

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    2. Refer to the figure 2.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

12. L. -

    Sub-procedure

    Installation

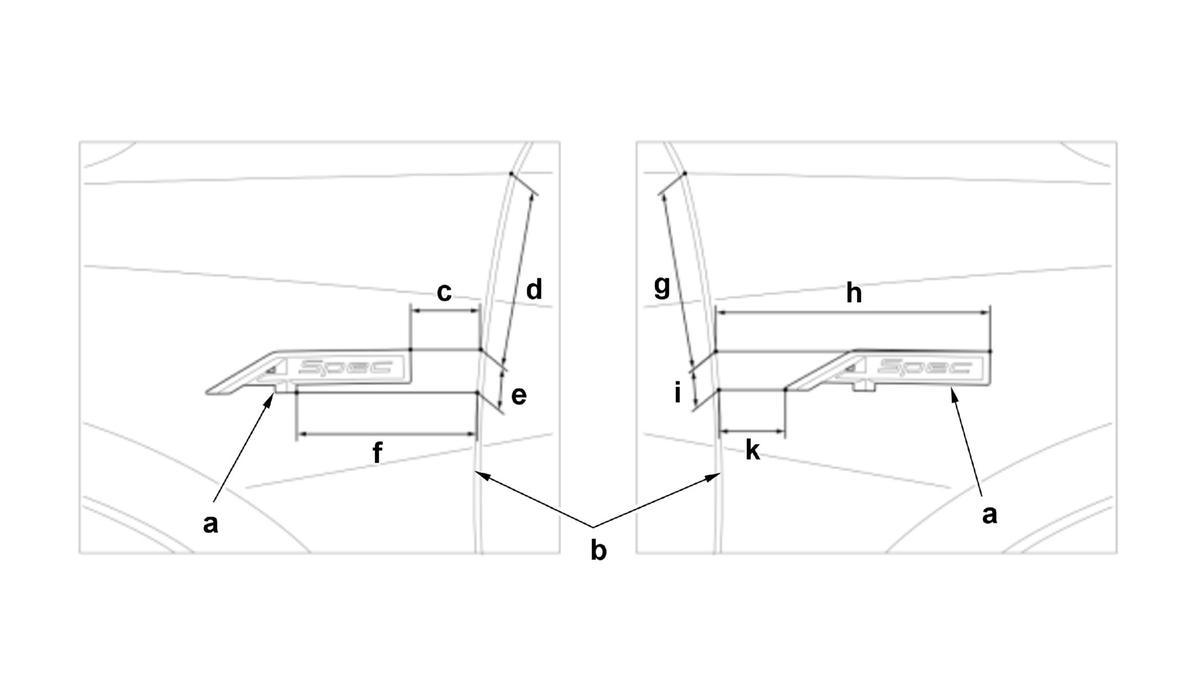

    Adhesive tape specifications

    Application Position	Specifications
    a	Adhesive tape thickness 0.8 mm (0.031 in)
    b	Edge of the front fender
    c	61.7 mm (2.429 in)
    d	142.5 mm (5.610 in)
    e	28.7 mm (1.130 in)
    f	140.3 mm (5.524 in)
    g	145.1 mm (5.713 in)
    h	205.9 mm (8.106 in)
    i	24.8 mm (0.976 in)
    k	57.8 mm (2.276 in)

    Courtesy of HONDA, U.S.A., INC.

13. M. -

    Sub-procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    After installation

    • Multi view front camera aiming (for some models) - refer to:
14. N. -

    Sub-procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

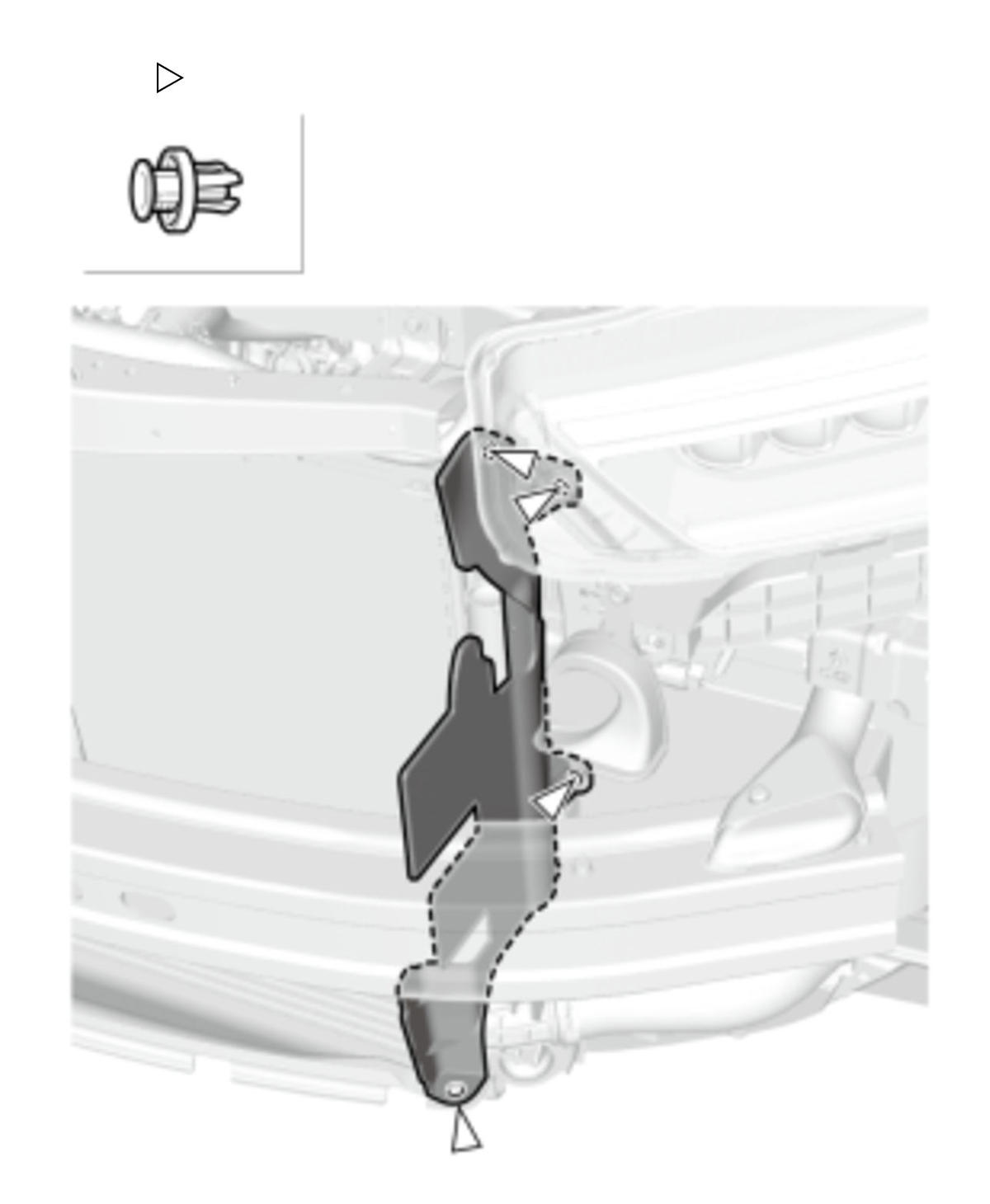

    • Refer to the figure.
15. O. -

    Sub-procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

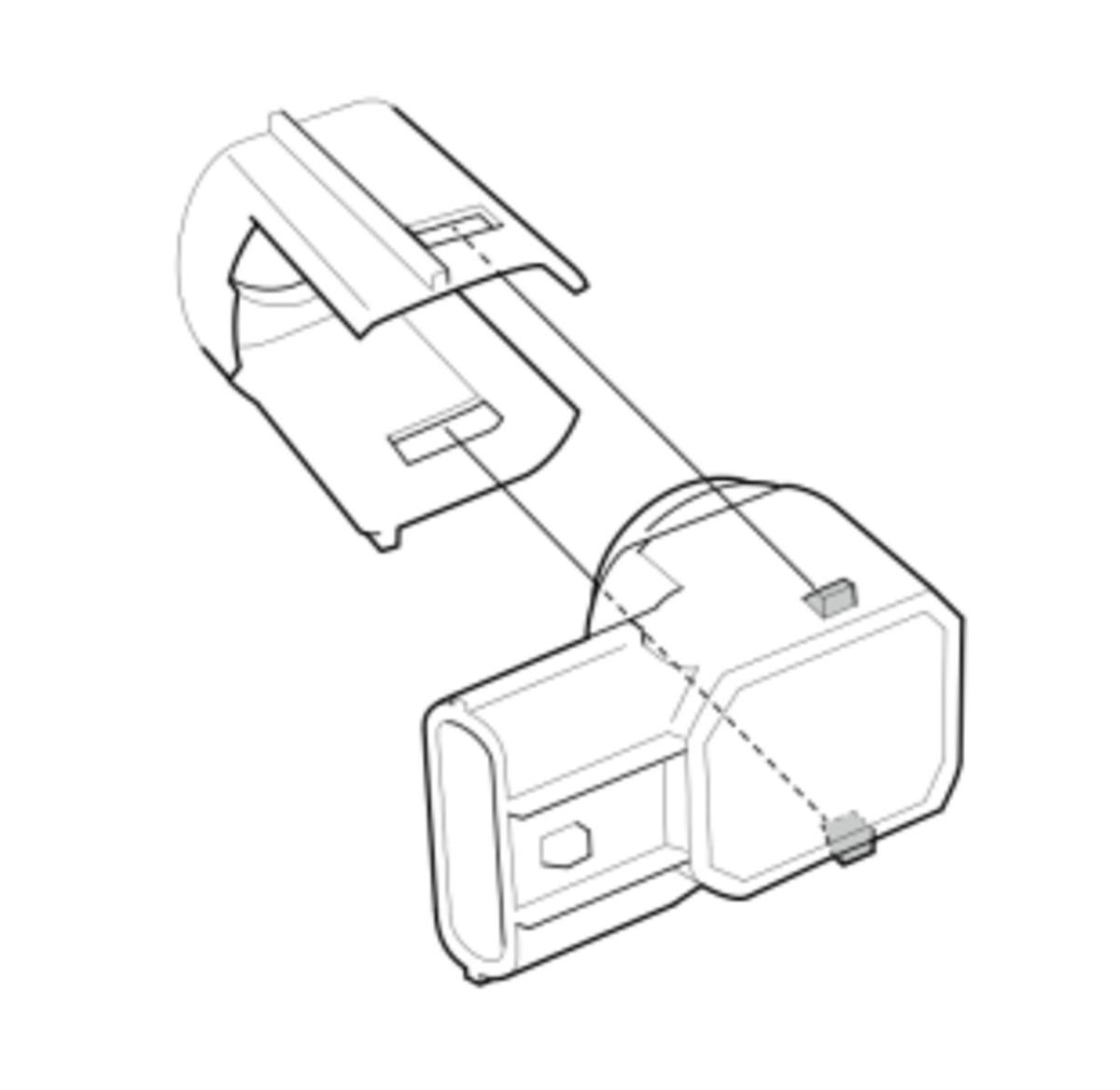

    • Refer to the figure.

    After installation

    NOTE:

    • When you replace the parking and back-up sensor.
    • When you change the parking and back-up sensor mounting location from the original location.
16. P. -

    Sub-procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
17. Q. -

    Sub-procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
18. R. -

    After installation
