Exploded View

For replacement of components listed below, see Repair Procedure .

Courtesy of HONDA, U.S.A., INC.

*1: With AcuraLink

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

*1: With 16 speakers/With 12 speakers

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

*1: With master lighting control unit

Courtesy of HONDA, U.S.A., INC.

*1: With master lighting control unit

Courtesy of HONDA, U.S.A., INC.

*1: With head up display
*2: With AcuraLink
*3: With adaptive front lighting system
*4: With multi view camera system

Courtesy of HONDA, U.S.A., INC.

*1: With AcuraLink

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

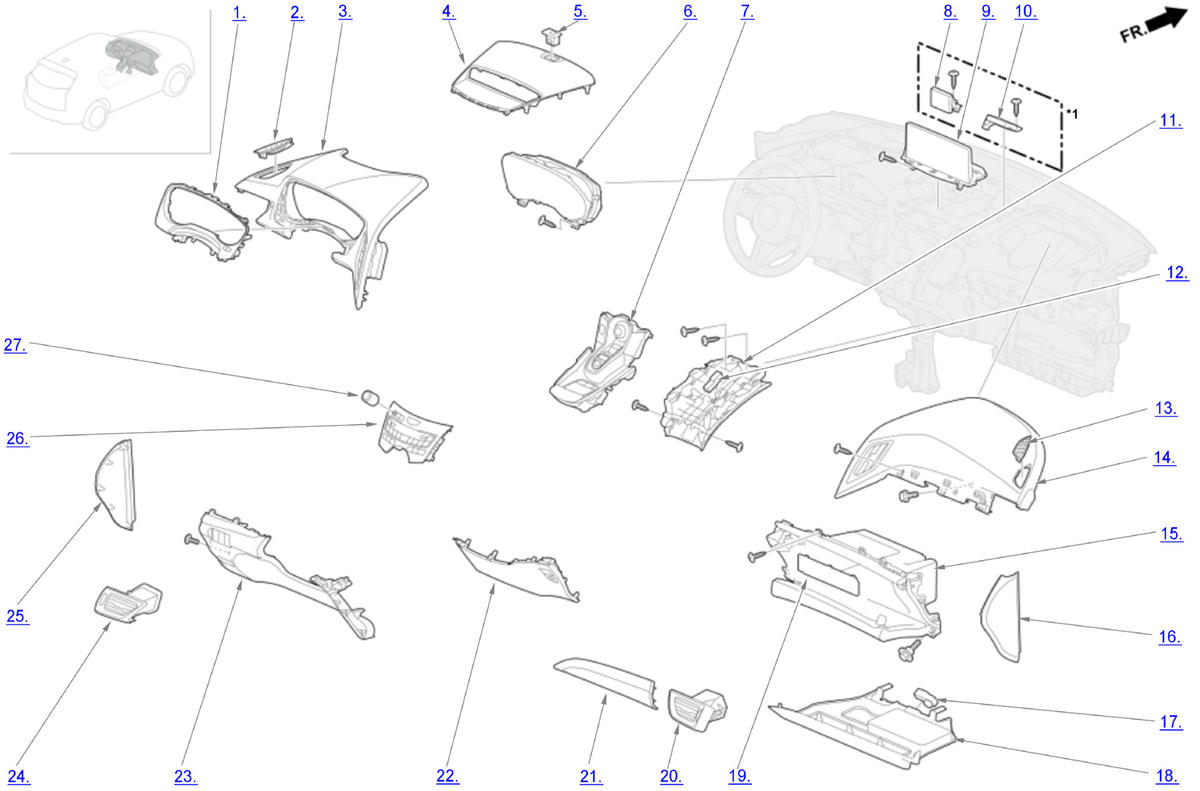

Dashboard/Steering Hanger Beam Area Components

Component Name	Callout

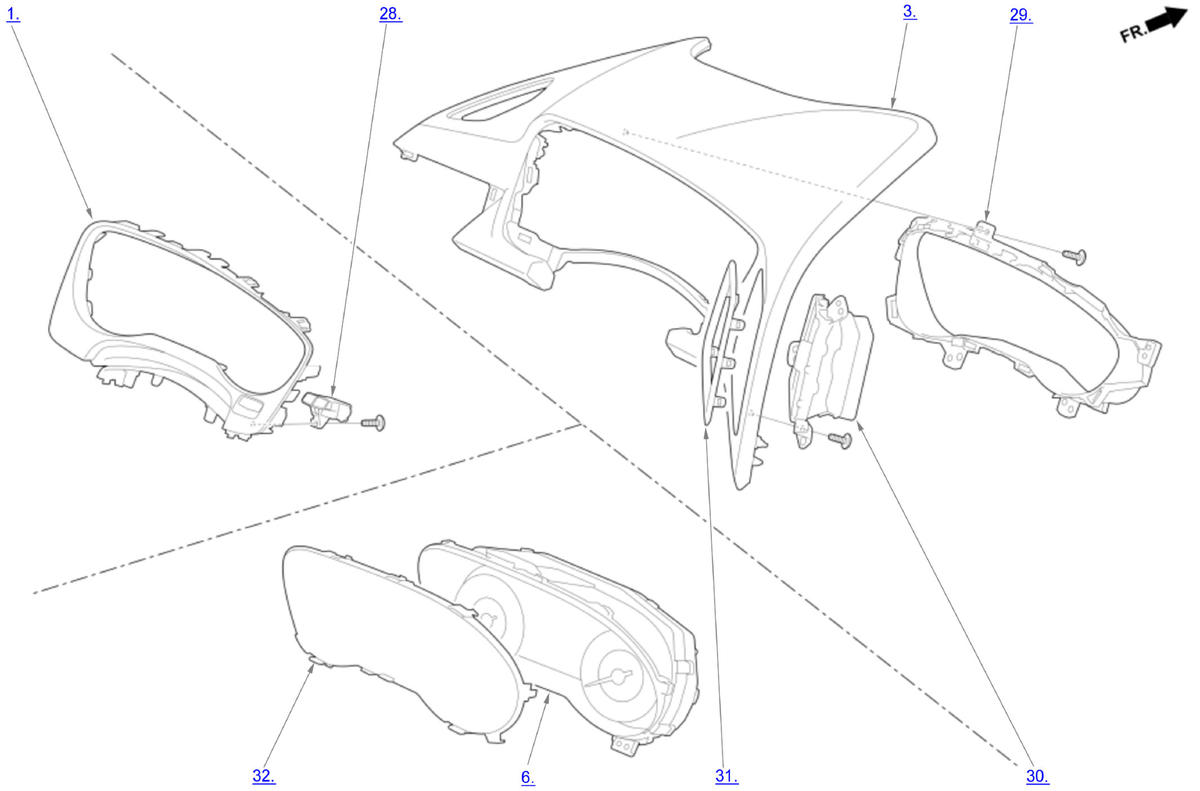

Dashboard Meter Visor	1
Driver's Side Defogger Vent Trim	2
Driver's Dashboard Upper Pad	3
Center Speaker Trim	4
Automatic Lighting Control Unit-Sensor/Sunlight Sensor	5
Gauge Control Module	6
Center Console Panel	7
TEL Antenna (Primary)	8
Center Display Unit	9
TEL Antenna (Secondary)	10
Pass Through Roof Panel	11
Tray Light	12
Passenger's Side Defogger Vent Trim	13
Passenger's Dashboard Upper Pad	14
Glove Box	15
Passenger's Dashboard Side Lid	16
Passenger's Footwell Light	17
Passenger's Dashboard Undercover	18
Maintenance Lid	19
Passenger's Dashboard Side Vent	20
Passenger's Dashboard Trim	21
Dashboard Center Lower Cover	22

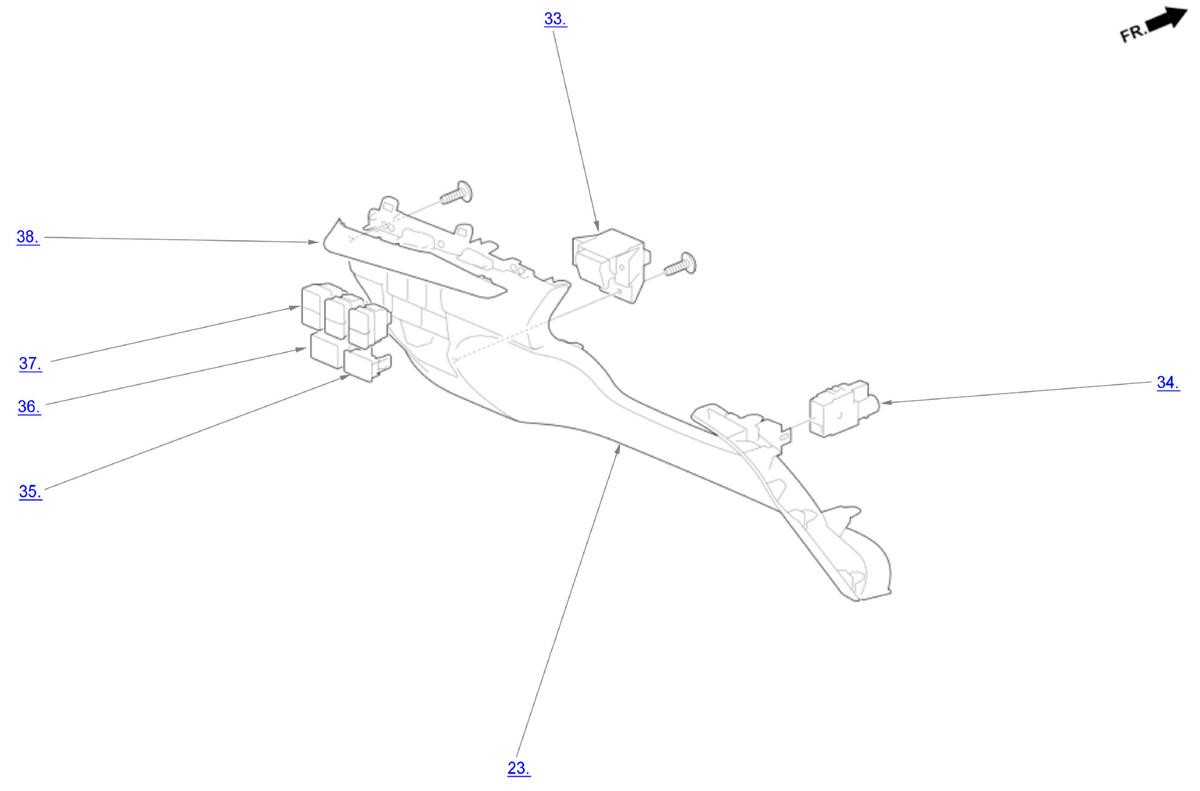

Driver's Dashboard Lower Cover	23
Driver's Dashboard Side Vent	24
Driver's Dashboard Side Lid	25
Climate Control Panel	26
Volume Knob	27
Dashlights Brightness Control Switch	28
Dashboard Inner Meter Visor	29
Driver's Center Vent	30
Driver's Center Panel	31
Lens	32
Electric Parking Brake Switch	33
Humidity/In-Car Temperature Sensor	34
Parking and Back-Up Sensor/VSA Off Switch or Switch Hole Lid	35
Automatic Brake Hold Switch	36
VSA Off Switch, RDM/CMBS OFF Switch, Safety Support Switch, Parking and Back-Up Sensor/VSA Off Switch, Headlight Washer Switch, Heated Windshield Wiper Area/Headlight Washer Switch, Head Up Display Switch, or Switch Hole Lid	37
Driver's Middle Lower Trim	38

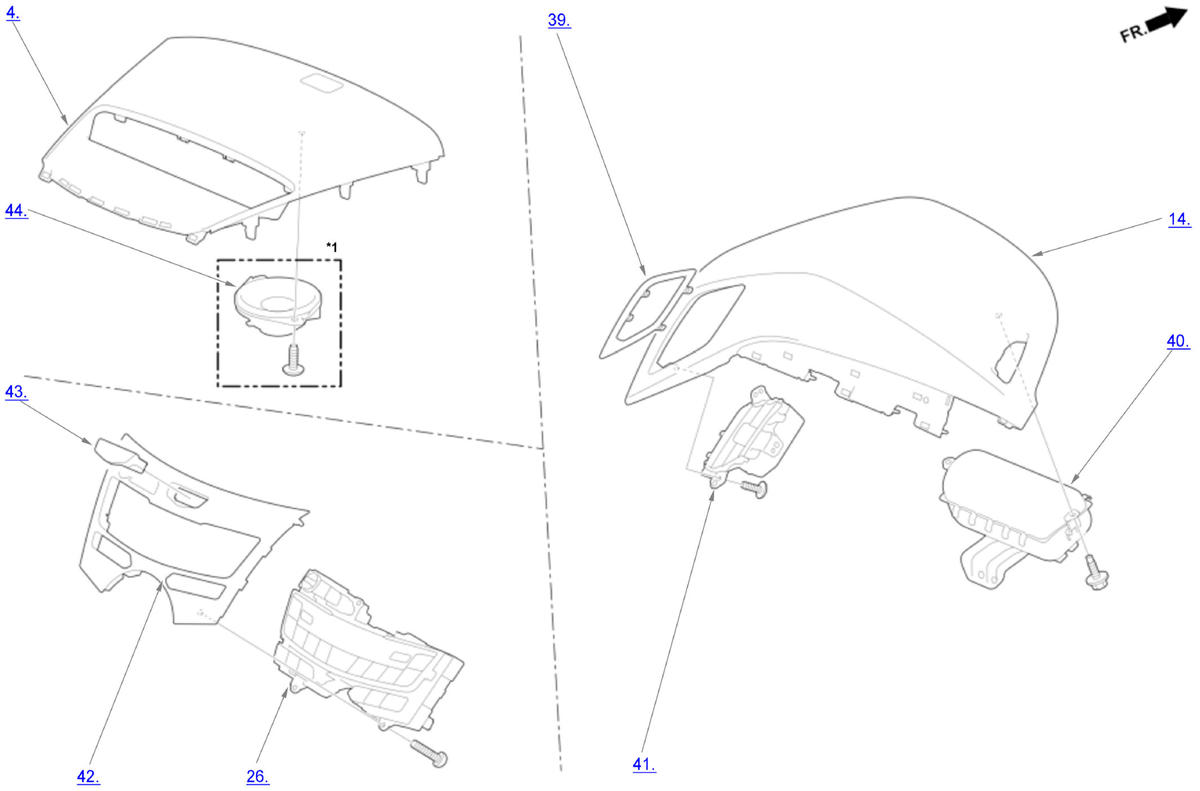

Passenger's Center Panel	39
Front Passenger's Airbag	40
Passenger's Center Vent	41
Panel	42
Hazard Warning Switch	43
Front Center Speaker	44

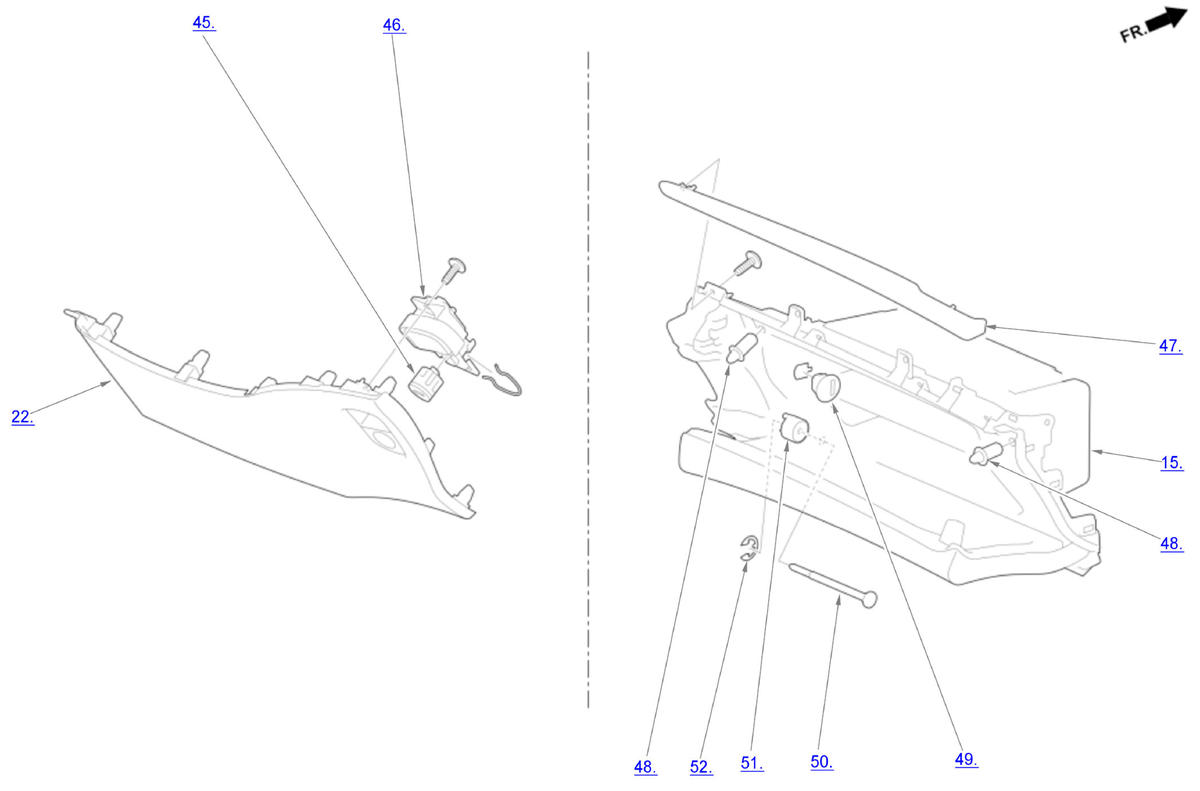

Glove Box Key Cylinder	45
Glove Box Button	46
Passenger's Middle Lower Trim	47
Glove Box Stoppers	48
Glove Box Light	49
Damper Pin	50
Glove Box Damper	51
E-Ring	52
Hand Restraint	53

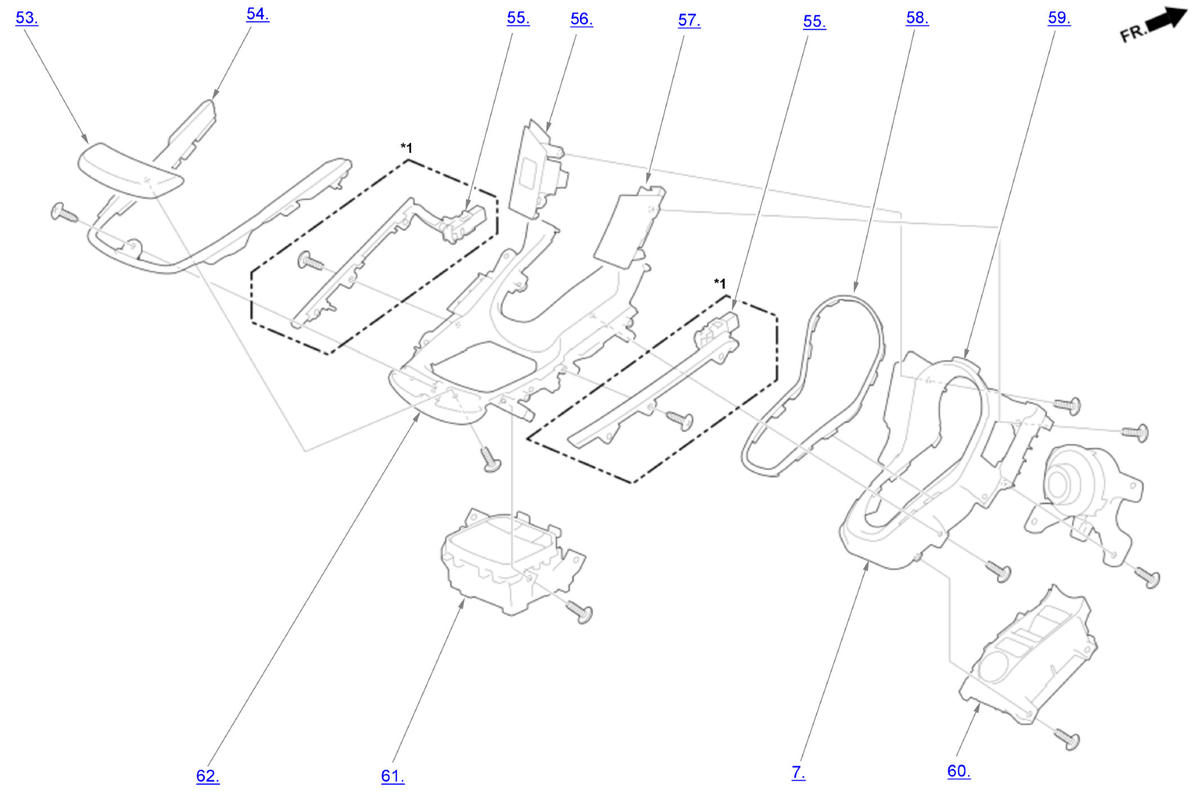

Center Console Outer Trim	54
Console Ambient Light	55
Idle Stop OFF Switch	56
Front Passenger's Airbag Cutoff Indicator	57
Center Console Inner Trim	58
Integrated Dynamics System Switch	59
SBW Shifter Assembly	60
Touchpad Unit	61
Touchpad Panel	62

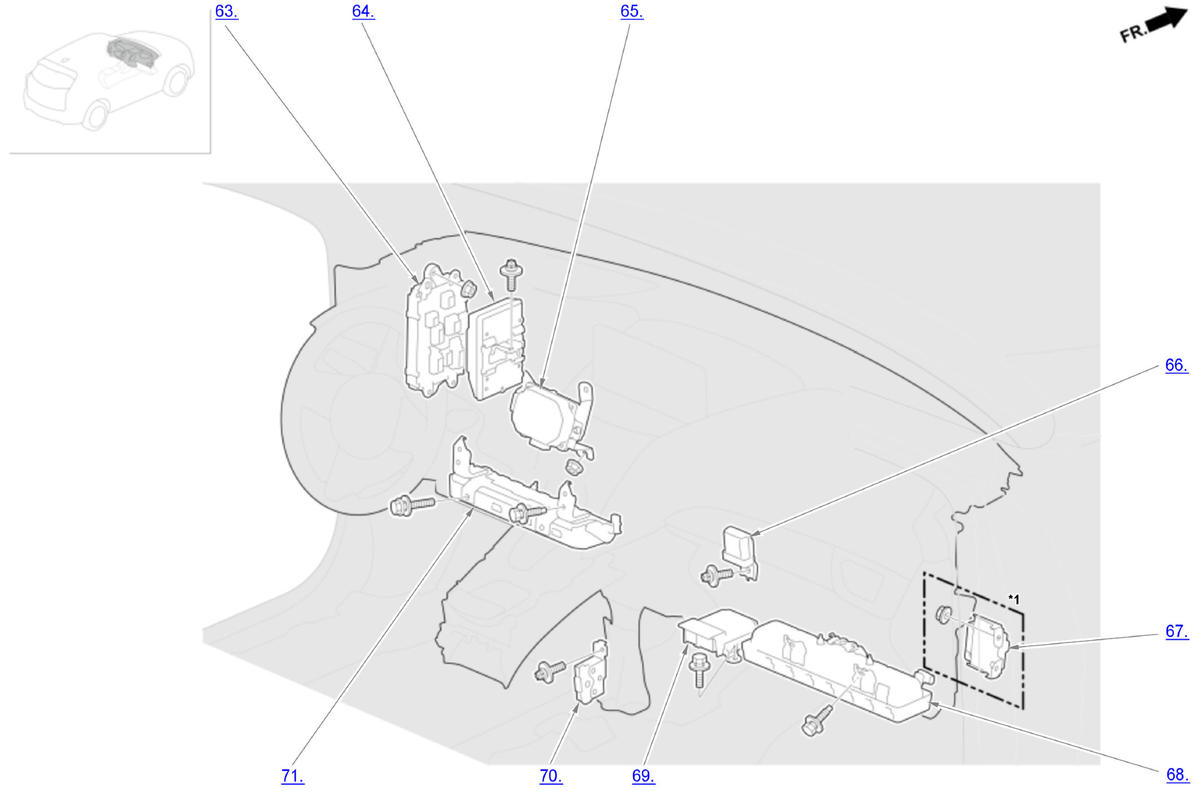

Power Distribution Module	63
Body Control Module	64
DC-DC Converter	65
CAN Gateway	66
Master Lighting Control Unit	67
Front Passenger's Knee Airbag	68
SRS Unit	69
ANC/Active Sound Control Unit	70
Driver's Knee Airbag	71

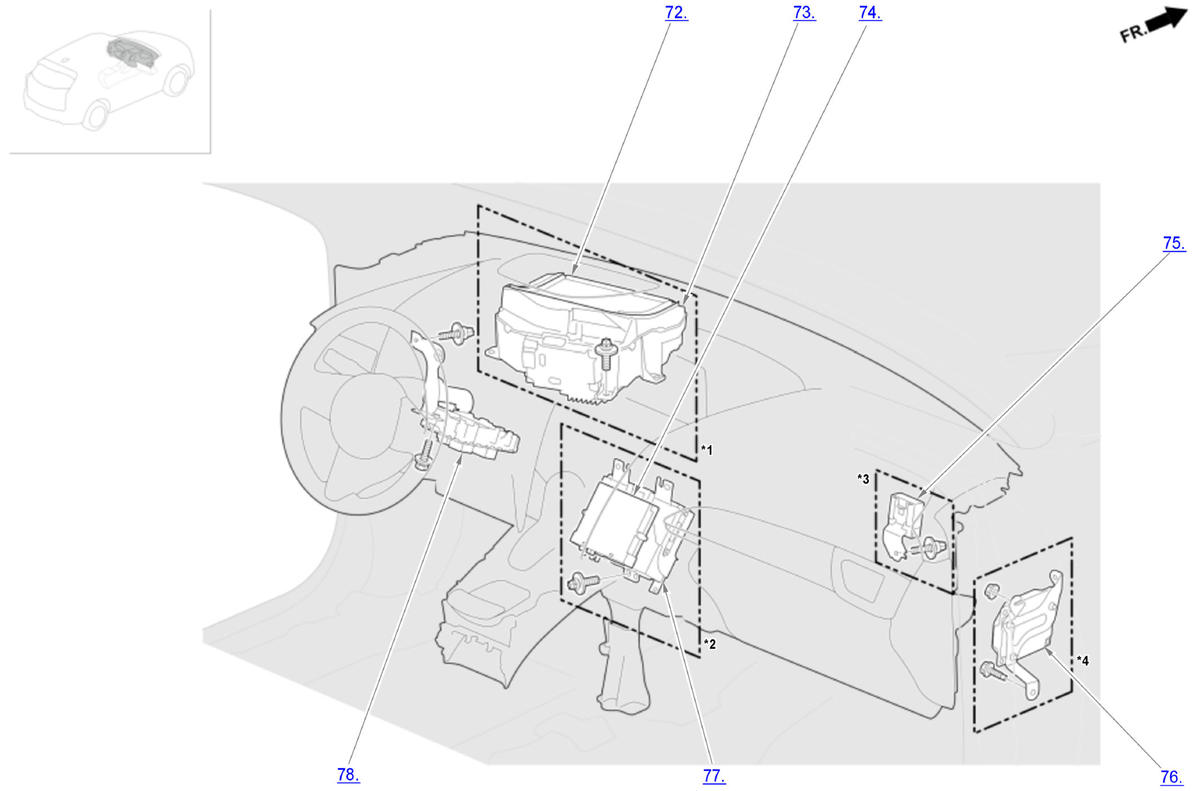

Head Up Display Lens	72
Head Up Display	73

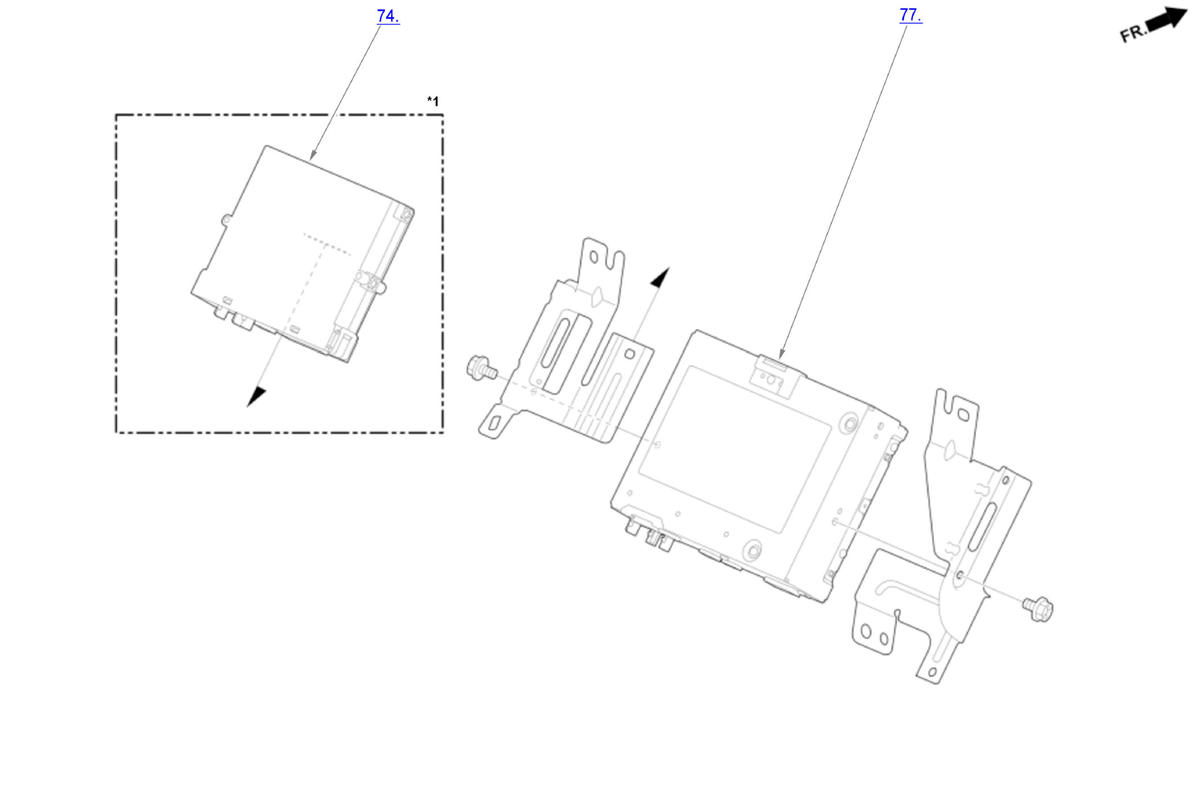

Telematics Control Unit	74
Adaptive Front Lighting Control Unit	75
Multi View Camera Unit	76
Infotainment Control Unit	77
Under-Dash Fuse/Relay Box	78

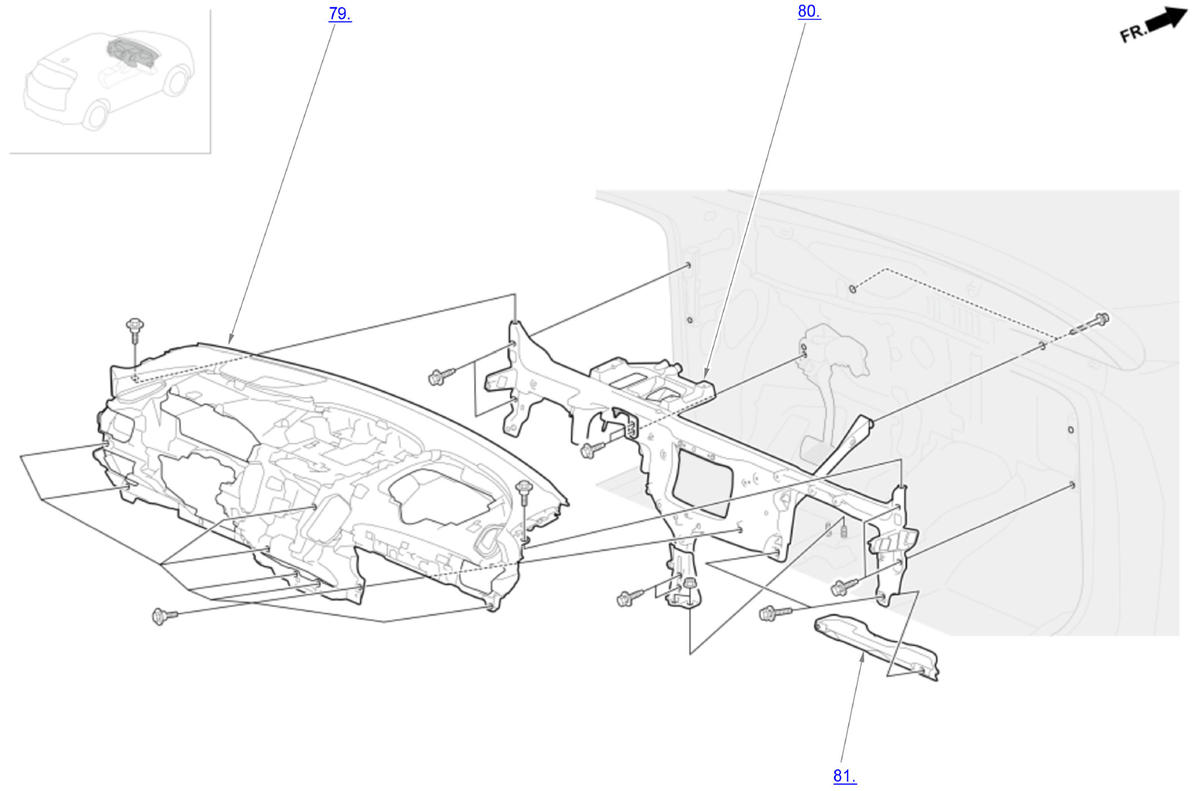

Dashboard	79
Dashboard/Steering Hanger Beam	80
Glove Box Frame	81

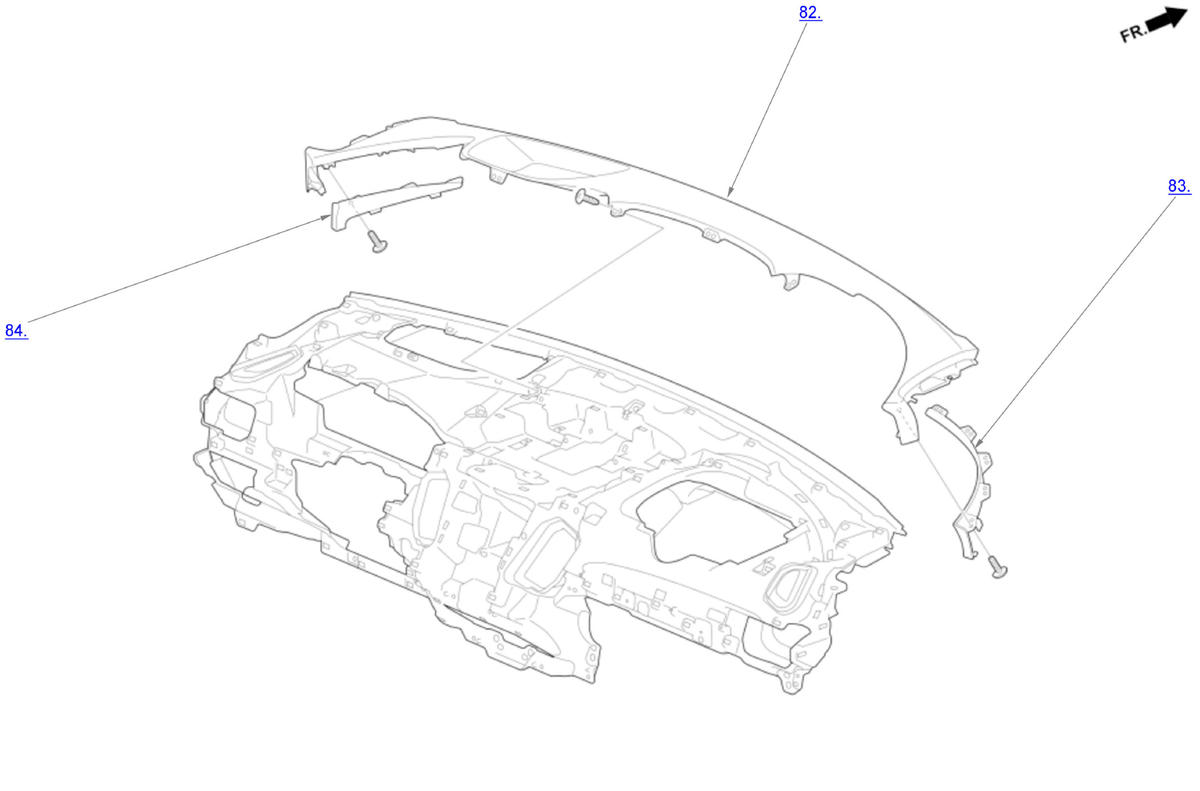

Dashboard Upper Trim	82
Passenger's Upper Trim	83
Driver's Upper Trim	84
