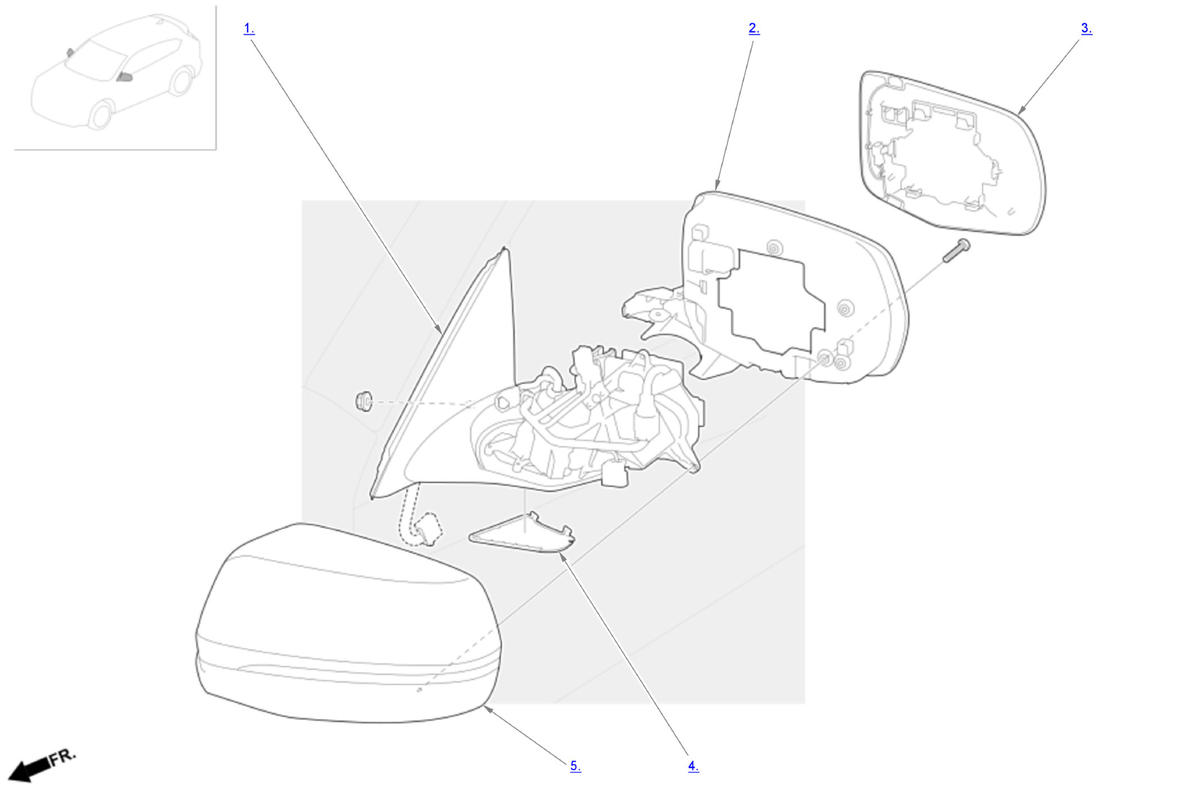

Exploded View
NOTE:
In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.
For replacement of components listed below, see Repair Procedure .

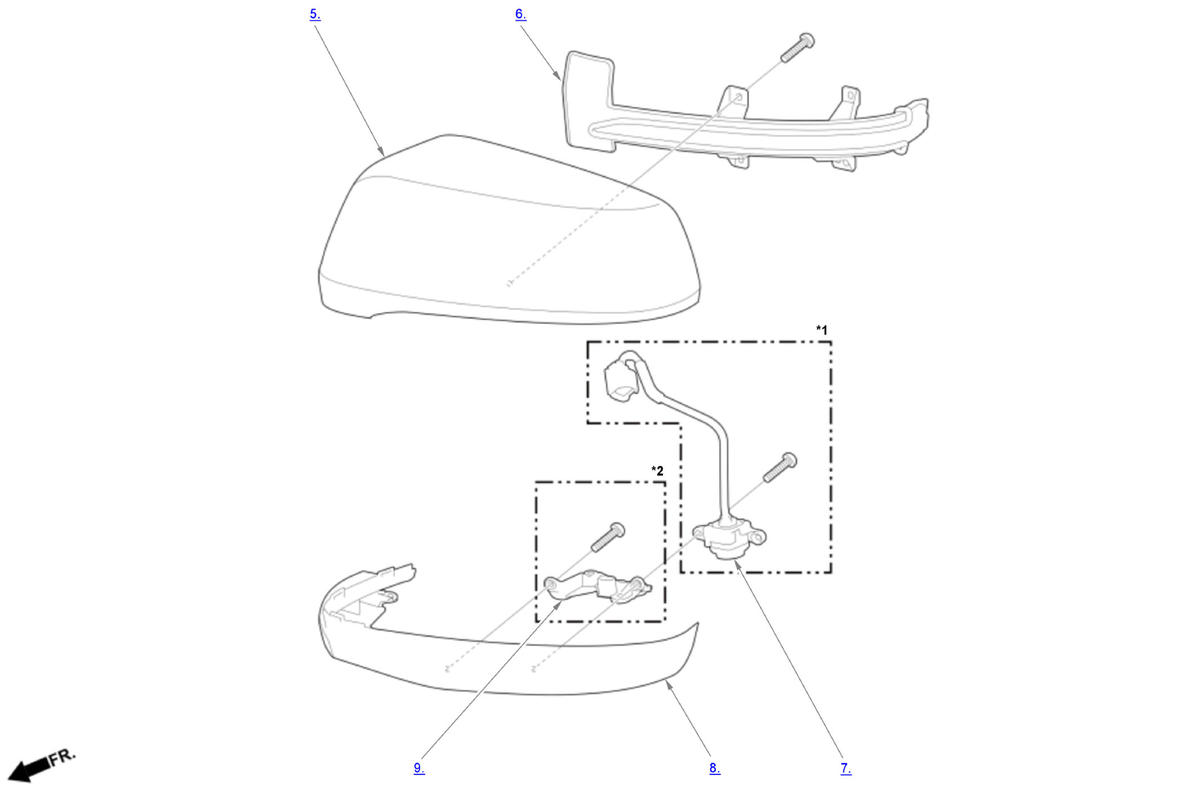

| *1: With multi view camera *2: With door puddle light |
Outside Mirror Area Components
| Component Name | Callout |
|---|---|
| Power Mirror | 1 |
| Mirror Visor | 2 |
| Mirror Holder | 3 |
| Power Mirror Lid | 4 |
| Mirror Housing Cover | 5 |
| Side Turn Signal Light | 6 |
| Multi View Side Camera | 7 |
| Mirror Housing Lower Cover | 8 |
| Door Puddle Light | 9 |

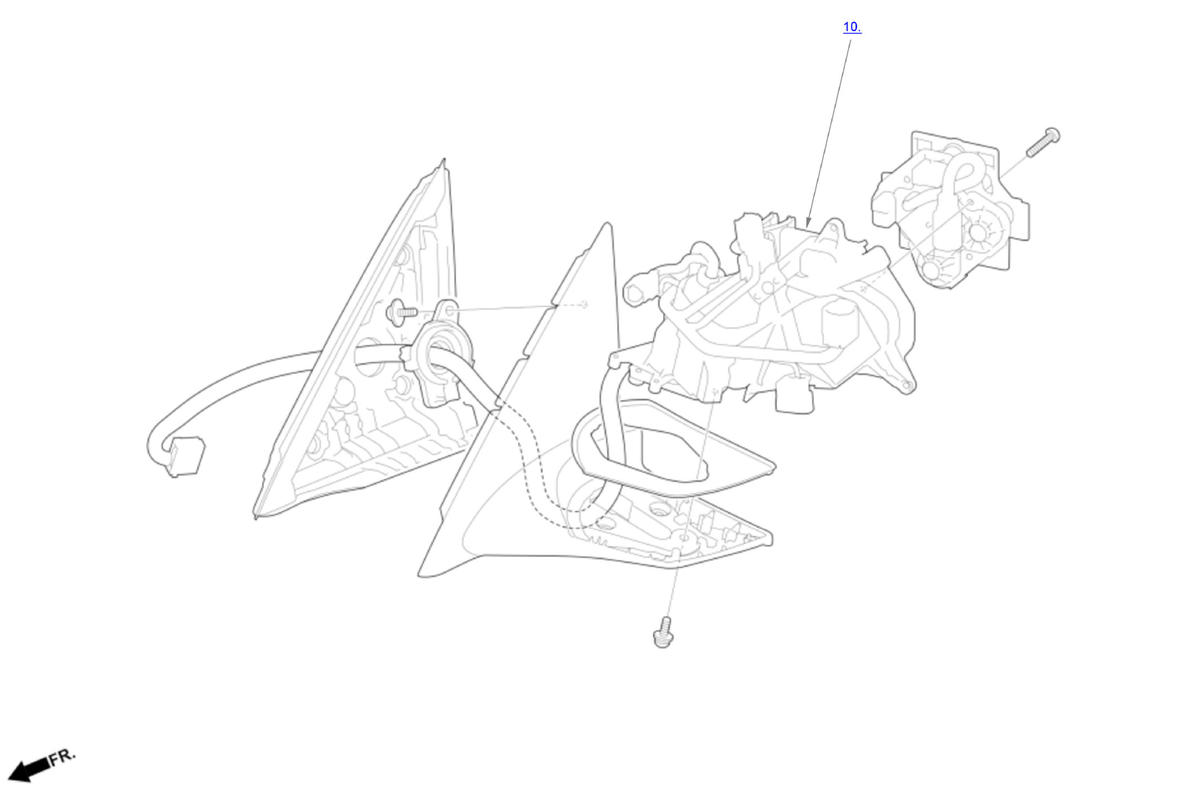

| Power Mirror Retract Actuator Assembly | 10 |
