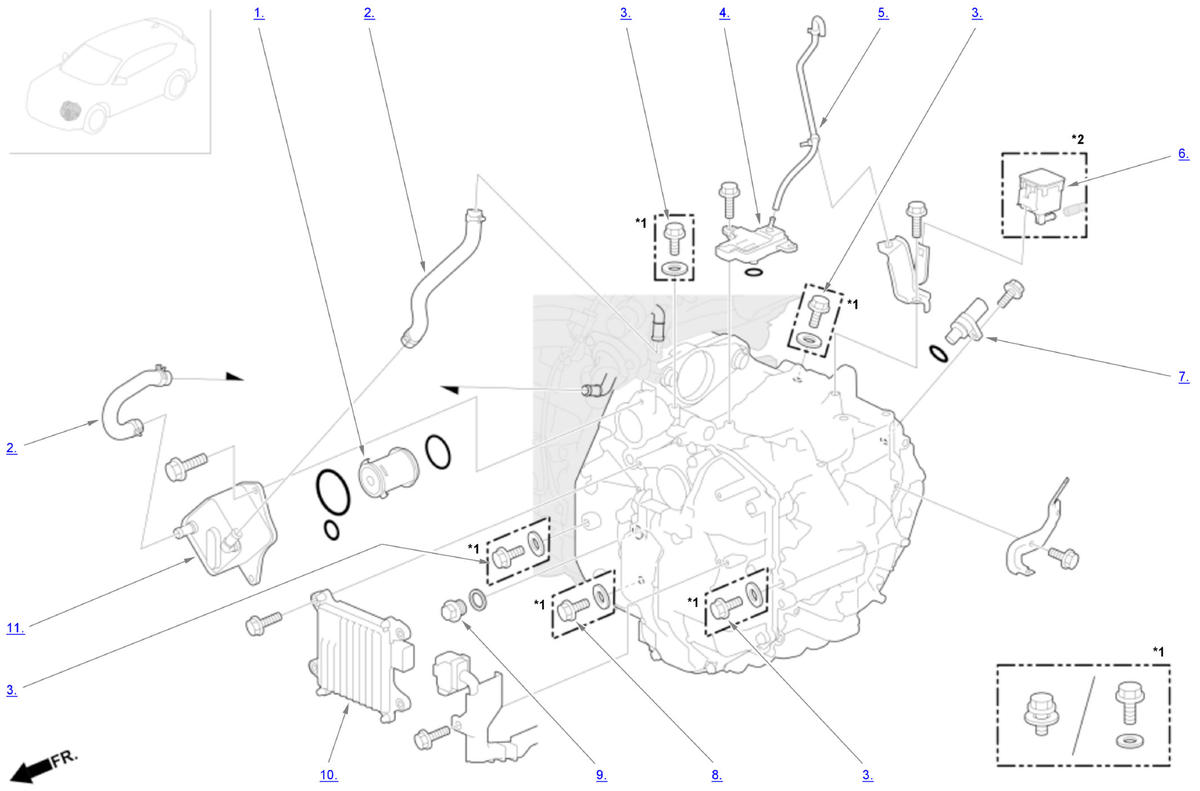

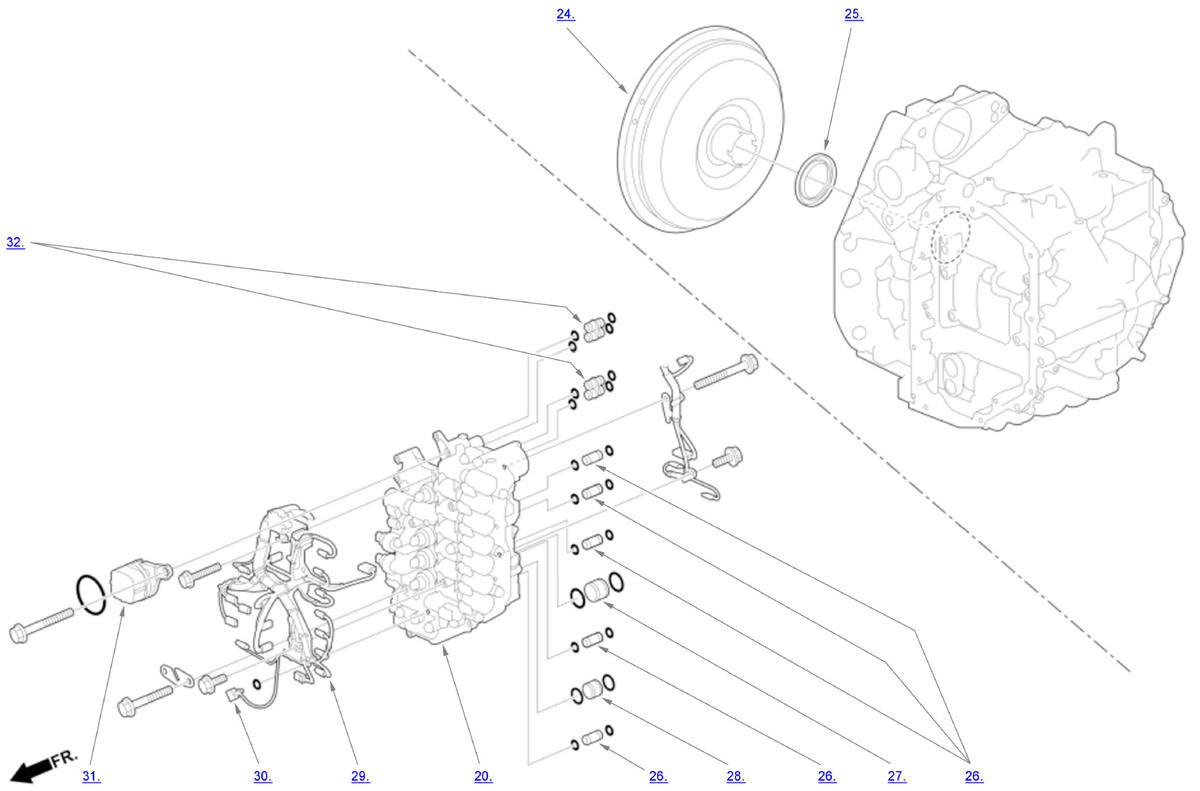

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: 2 types *2: With AWD |
| *1: 2 types *2: Without AWD |
Transmission Area Components
| Component Name | Callout |
|---|---|
| ATF Warmer Strainer | 1 |
| Water Bypass Hose | 2 |
| Sealing Bolt | 3 |
| Breather Box | 4 |
| Breather Tube | 5 |
| Transfer Breather Box | 6 |
| Countershaft Speed Sensor | 7 |
| Level Plug | 8 |
| Filler Plug | 9 |
| Transmission Control Module (TCM) | 10 |
| ATF Warmer | 11 |
| Drive Plate | 12 |
| Differential Oil Seal (Torque Converter Housing Side) | 13 |
| Drain Plug | 14 |
| Transmission Mount | 15 |
| Torque Converter Housing Cover | 16 |
| Differential Oil Seal (Transmission Housing Side) | 17 |
| Control Shaft Oil Seal | 18 |
| Transmission Assembly | 19 |
| Valve Body Assembly | 20 |
| Front Cover | 21 |
| Mainshaft Speed Sensor | 22 |
| Torque Converter Cover | 23 |
| Torque Converter | 24 |
| Torque Converter Oil Seal | 25 |
| 11 x 27 mm Pipe | 26 |
| 25.4 x 19 mm Pipe | 27 |
| 20.4 x 19 mm Pipe | 28 |
| Solenoid Wire Harness | 29 |
| ATF Temperature Sensor (Integrated with Solenoid Wire Harness) | 30 |
| Solenoid Wire Harness Connector | 31 |
| 11 x 24.5 mm Pipe | 32 |
