Communication (F-CAN B_H), Communication (F-CAN B_L) Open Wire Inspection

Communication (F-CAN B_H), Communication (F-CAN B_L) Open Wire Inspection

Test Procedure

• Preparation

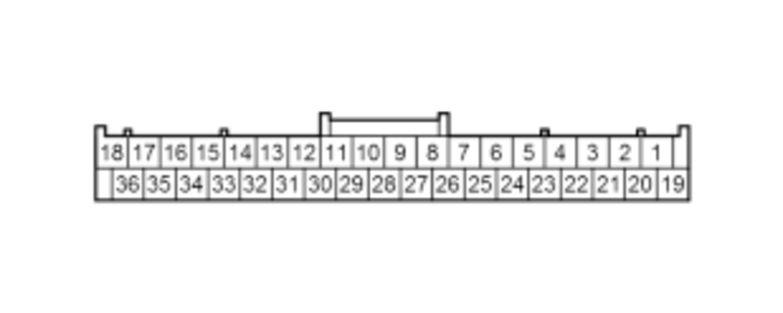

  • Body control module connector B (36P) : disconnected

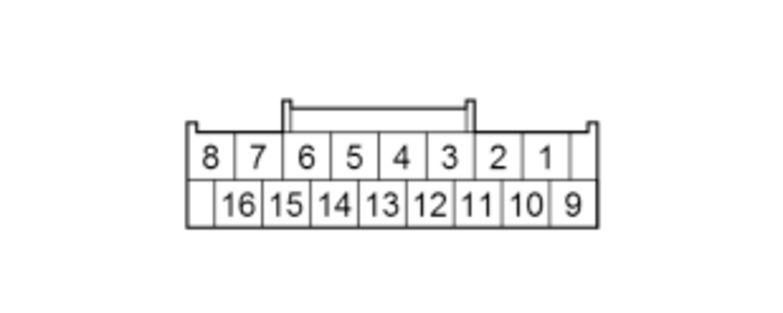

  • CAN gateway 16P connector: disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Body control module connector B (36P) female terminals	(Disconnected) CAN gateway 16P connectorfemale terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	F-CAN B_H open wire inspection	OFF			There is less than 1 Ω
    	F-CAN B_L open wire inspection	OFF			There is less than 1 Ω

Results

• If abnormal, there is a problem in the circuit.
