Body Control Module Inspection

Preconditions

NOTE: This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

External circuit is normal

Test Procedure

Preparation
- Rear bumper LF antenna 2P connector: disconnected

Procedure

Perform the inspection according to the following table.

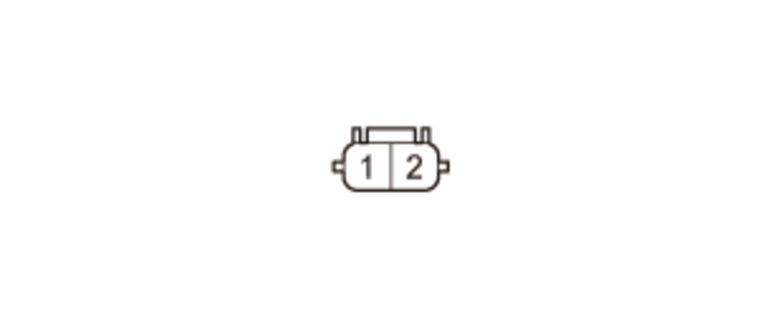

			(Disconnected) Rear bumper LF antenna 2P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Module internal circuit inspection	ON*1		Voltage
*1: If the matter whether the vehicle mode ON or OFF (LOCK) because of the permanent power supply.

Results

If it is abnormal, there is a problem with the body control module.
