Communication (B-CAN_H), Communication (B-CAN_L) Open Wire Inspection
Test Procedure
- Preparation
- Body control module connector B (36P) : disconnected
- Gauge control module connector A (32P) : disconnected
- Procedure
- Perform the inspection according to the following table.
(Disconnected)

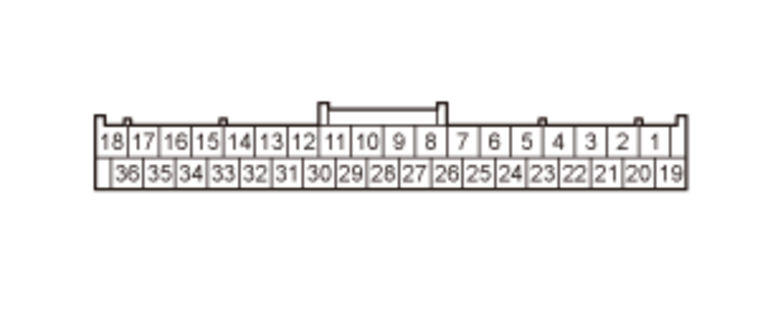

Body control module connector B (36P) female terminals(Disconnected)

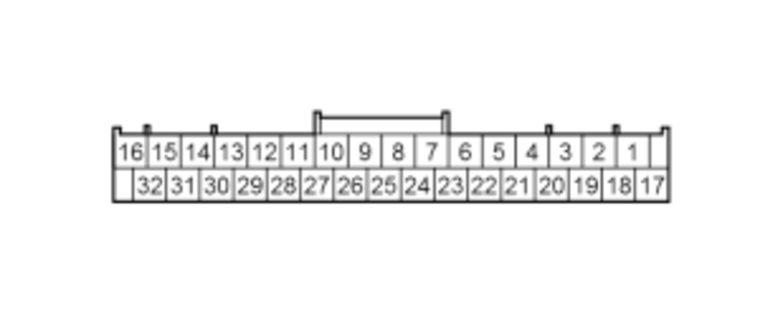

Gauge control module connector A (32P) female terminalsIG Mode Normal Conditions B-CAN_H open wire inspection OFF There is less than 1 Ω B-CAN_L open wire inspection OFF There is less than 1 Ω
- Perform the inspection according to the following table.
Results
- If abnormal, there is a problem in the circuit.
- If normal, there is a problem with the gauge control module.
