Lane Keeping Assist System (LKAS) System Description
Lane Keeping Assist System (LKAS)

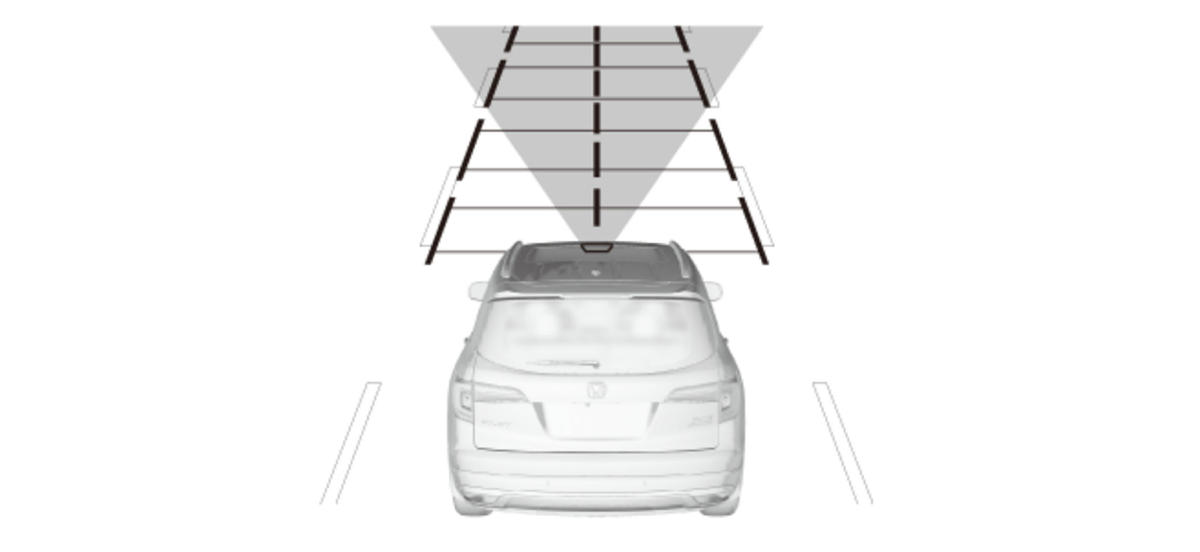

The LKAS uses the multipurpose camera to read the detected lane lines on both sides of the road. The multipurpose camera unit draws an imaginary line at the center between both lane lines, and lane keeping assist control is performed by assisting the steering so that the vehicle is guided along this imaginary line near the center of the lane. The system gets suspended when the system determines that the driver is not holding the steering wheel for a certain period of time while LKAS is in operation.

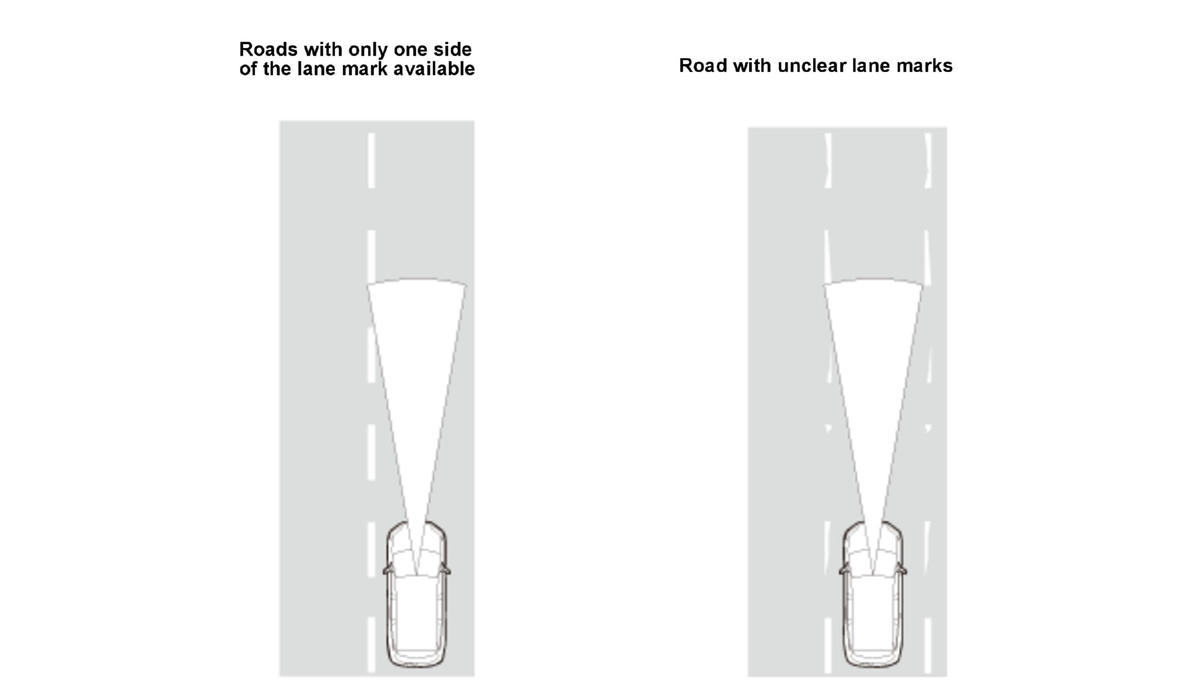

LKAS Inoperative Road Conditions

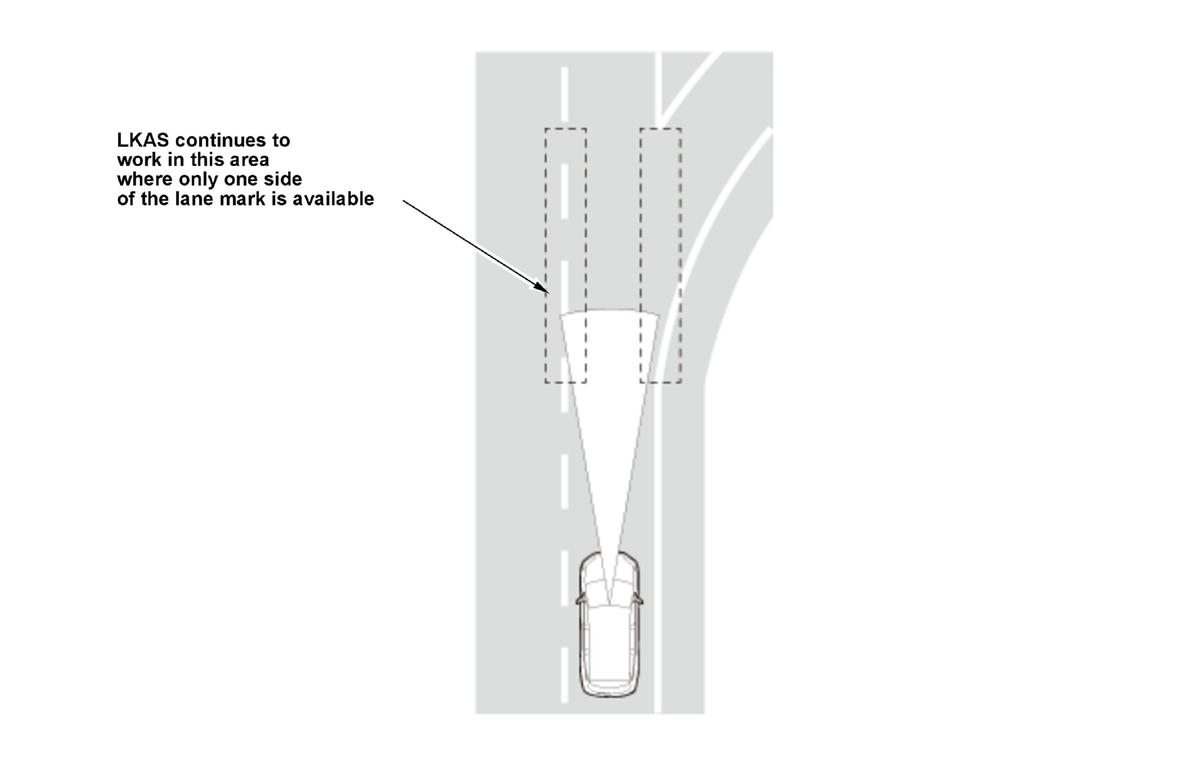

In case one side of lane mark is temporary missing
LKAS will continue to work even when one side of the lane mark is missing temporarily such as an intersection or a junction.
Operation Conditions
| System Operation Conditions | Operation under conditions where lane line recognition is possible on both sides (Lane line recognition may not be possible in bad weather, snow-covered roads, or areas with backlight). | |
| Operation vehicle speed | 45 - 90 mph (72 - 145 km/h) | |
| Object lane line types | Broken lines or solid lines on the road (white and yellow) | |
| Driver operation | The LKAS is cancelled when the driver's intention to control the vehicle, such as intentional steering wheel operation, brake pedal operation, and turn signal operation, is recognized. | |
| LKAS Cancel Alarm | When the LKAS is canceled, a buzzer sounds ("beep") to warn the driver. The alarm can be set ON/OFF. | |
