Blind Spot Information (BSI) System Description - System Diagram

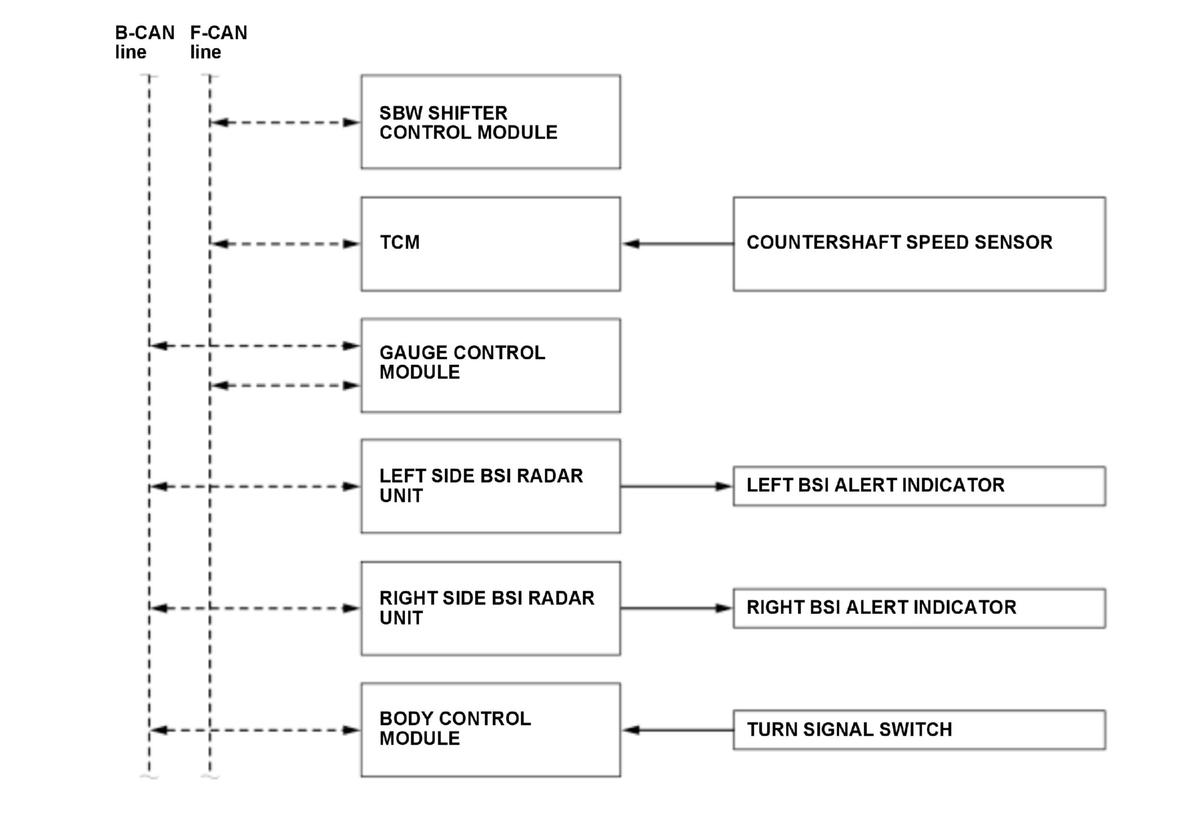

The system diagram of the Blind Spot Information (BSI) system is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- TCM, Countershaft speed sensor, SBW shifter control module
- Gauge control module
- BSI radar unit, BSI alert indicator - Refer to: Blind Spot Information (BSI) System Component Location Index (2019 2020 2021) or Blind Spot Information (BSI) System Component Location Index (2022 2023)
- Body control module, Turn signal switch
