Cross Traffic Monitor System Description - System Diagram

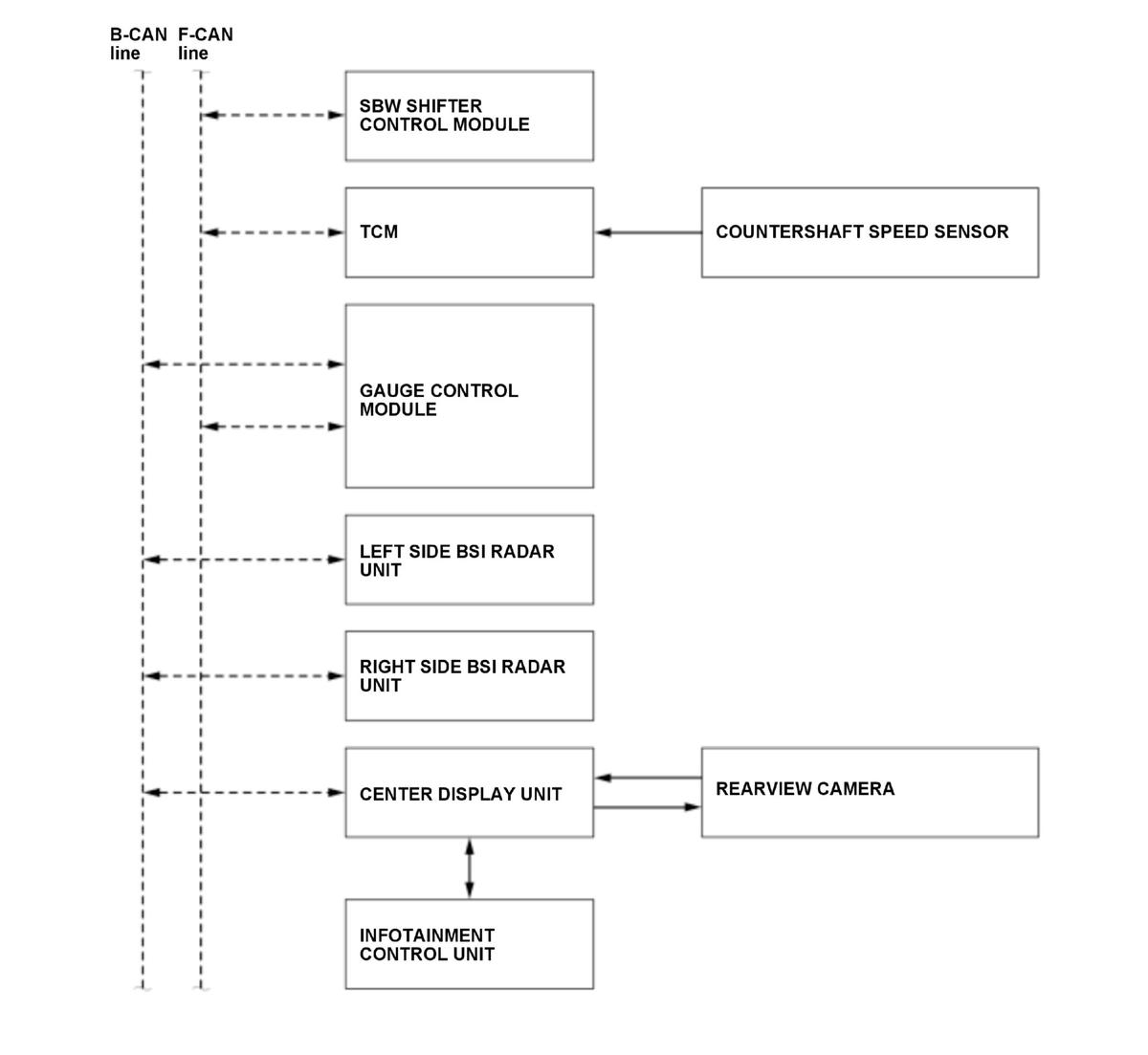

The system diagram of the cross traffic monitor system is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- TCM, Countershaft speed sensor, SBW shifter control module
- Gauge control module
- BSI radar unit - Refer to: Cross Traffic Monitor Component Location Index (2019 2020 2021) or Cross Traffic Monitor Component Location Index (2022 2023)
- Infotainment control unit, Center display unit, Rearview camera - Refer to: Audio and Visual System Component Location Index (2019 2020 2021) or Audio and Visual System Component Location Index (2022 2023)
