Multi View Camera Aiming: Adjustment

How To Use This Service Information .

NOTE:
  • The multi view camera unit must be re-aimed whenever the front camera, the rearview camera, the left side camera, or the right side camera is removed or replaced, or if an aiming error occurs.
    • The multi view camera must also be re-aimed if any of the following components related to the multi view camera were removed/reinstalled or adjusted:
      • Power mirror
      • Front door
      • Tailgate
      • Front bumper or front grille
      • Mirror housing lower cover
  • If DTC B14B3-54 Camera Aiming Incomplete is present, the multi view camera must also be re-aimed.
    • Conditions for the aiming environment:
      • Park the vehicle on level ground (within one degree). Do not do this procedure with the vehicle on a lift or with the tires on steel plates or rollers.
      • Aim the multi view camera on a flat, level ground with the following space around the vehicle:
        1. Front camera aiming with at least 1.5 m (4.9 ft) in front of the vehicle
        2. Rearview camera aiming with at least 1.5 m (4.9 ft) behind the vehicle
        3. Side camera aiming with at least 1.5 m (4.9 ft) in front of, behind and on either side of the vehicle
      • All wheels of the vehicle should touch the ground.
      • Clean the lens surface of each camera.
      • The HDS is required when aiming the multi view camera.
      • Make sure the front grille, the front bumper, and the power mirrors are installed correctly.
      • A person or an object equivalent to the driver must be placed in the driver's seat.
      • There should be no bright lights or reflections on the targets (sunlight, windows, illumination, or reflectors) or designs similar to the target pattern.
  • If aiming is unsuccessful after confirming the conditions and the correct target placement, check for bent or mis-installed components.
NOTE: When marking on the floor surface, use suitable tape to mark the exact locations.
  1. Before Aiming - Set
    GHH556539Courtesy of HONDA, U.S.A., INC.

    Procedure/Specifications

    1. Set the cord along the center-line of the vehicle .

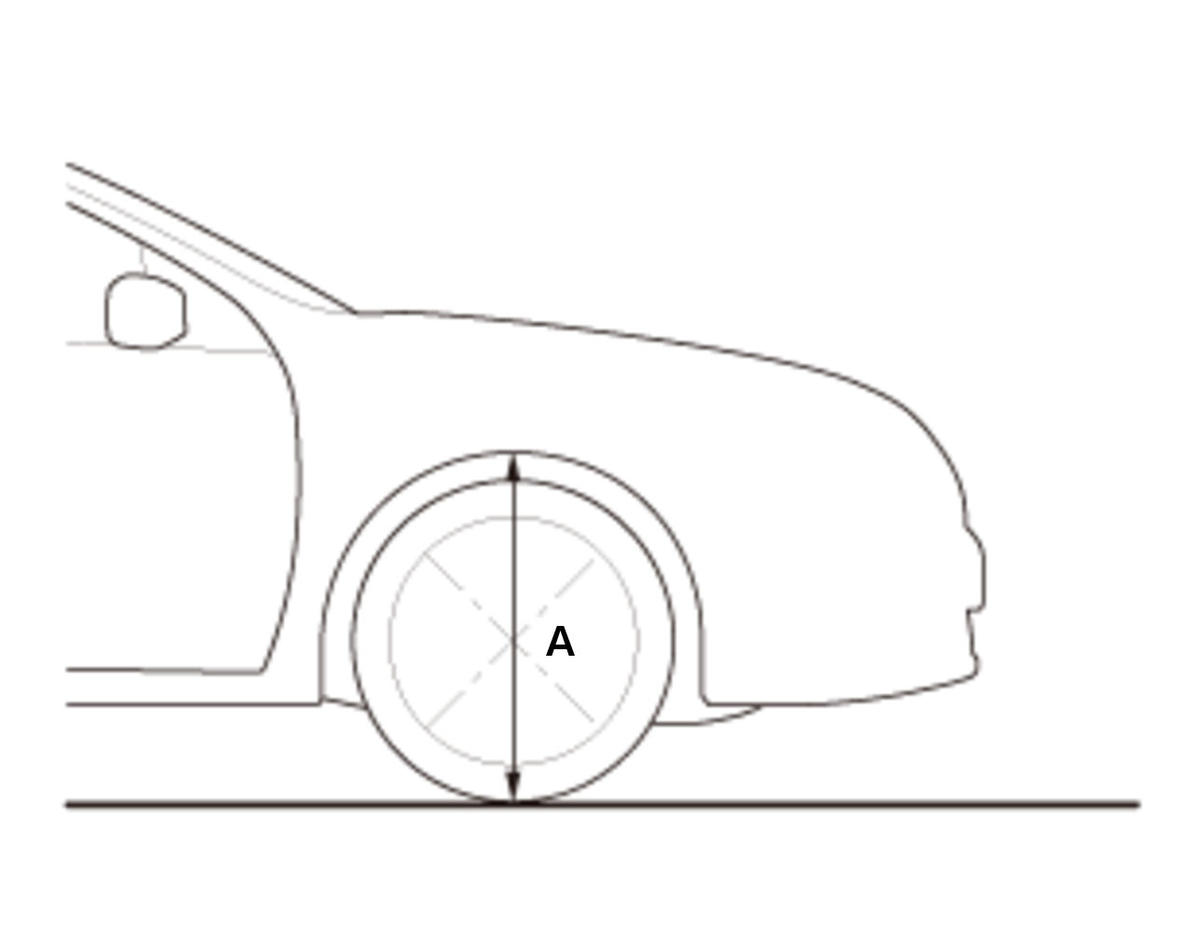

    2. Measure the right and left front wheel arch height (A) from the floor surface to the top-center of the wheel arch.

    NOTE: It is not necessary to do all of the aiming procedures listed in this procedure. Do the aiming procedure that is applicable to the component that was removed or requiring a re-aiming.

    Camera Aiming is Required Components

    Component Removed or Adjusted Aim
    Front camera, front bumper, or front grille. Front Camera
    Side camera, power mirror, mirror housing lower cover, or front door. Side Camera
    Rearview camera or tailgate Rearview Camera

    3. Add the left and right measurements and divide it by 2. This is the average wheel arch height. Record this calculation as it will be used later.

  2. Front Camera - Aim

    Preconditions

    Procedure/Specifications

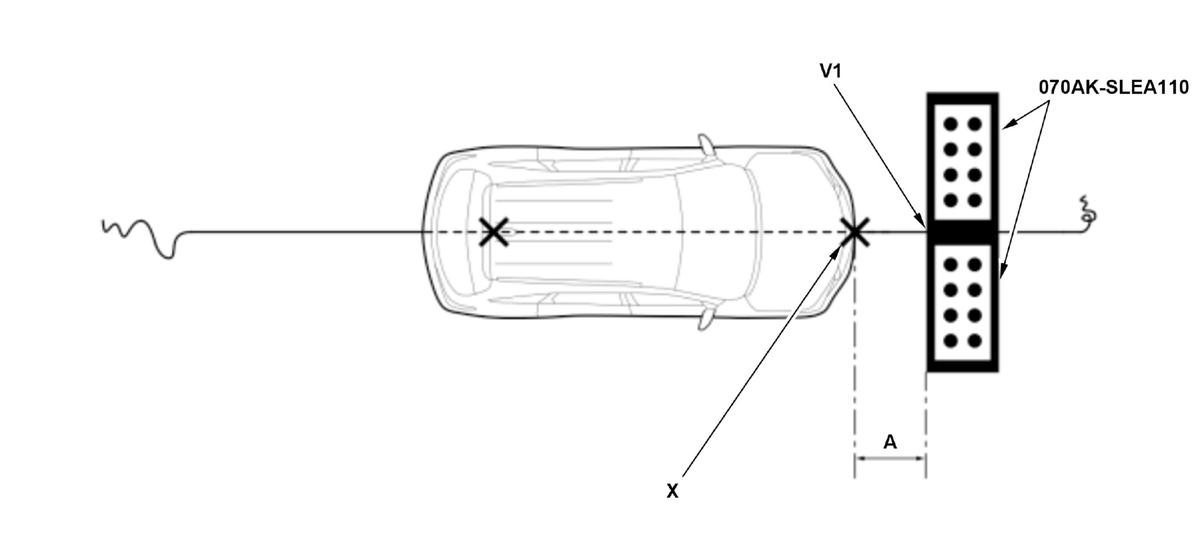

    1. On the cord, mark a new point V1 from point X.

    Distance Between Point X and Point V1

    Position Specifications
    A 603 mm (23.74 in) '19-21
    606 mm (23.86 in) '22-23
    GHH556540Courtesy of HONDA, U.S.A., INC.

    2. Place two, 8 Dot Target Sheets at point V1 on the floor along the center-line.

    3. Select the following menu buttons on the HDS screen in sequence.

    NOTE:
    • During adjustment, check the center display unit when prompted by the HDS. The 8 dots on each target sheet must be within their respective red box.
    • If the aiming procedure cannot be completed properly, review the instructions at the top of this procedure and make sure the instructions are followed correctly.
      • DRIVING SUPPORT (System Selection Menu)
      • Multi View Camera System
      • ADJUSTMENT
      • AUTO CAMERA AIMING

    Result

    • If the aiming procedure cannot be completed properly, go back to the NOTE at the top of this procedure and make sure the instructions are followed correctly.

    After Aiming

  3. Rearview Camera - Aim

    Preconditions

    Procedure/Specifications

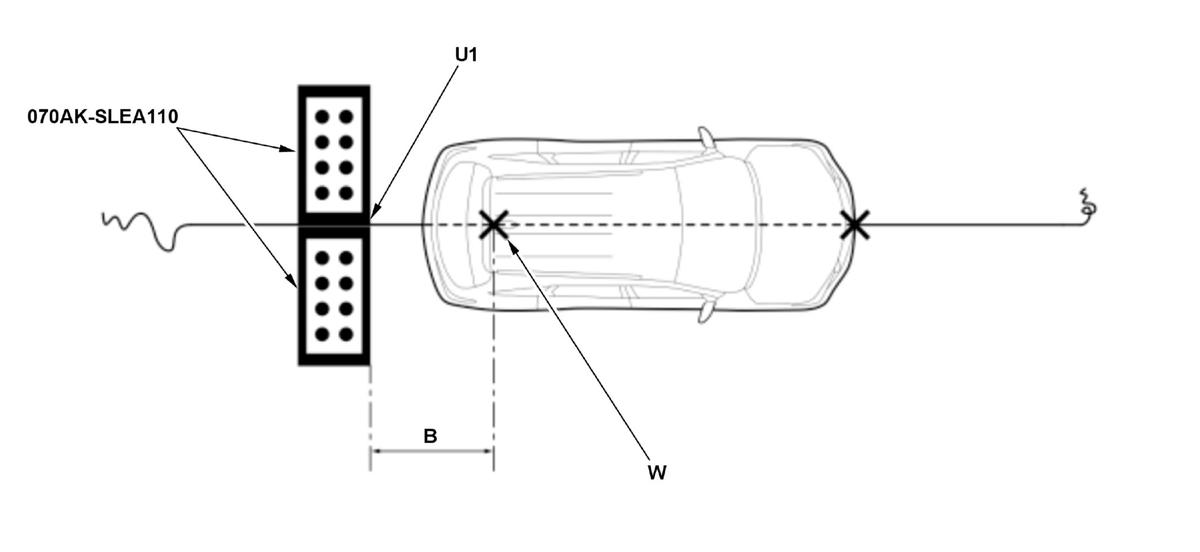

    1. On the cord, mark a new point U1 from point W.

    Distance Between Point W and Point U1

    Position Specifications
    B 1, 333 mm (52.48 in)
    GHH556541Courtesy of HONDA, U.S.A., INC.

    2. Place two, 8 Dot Target Sheets at point U1 on the floor along the center-line.

    3. Select the following menu buttons on the HDS screen in sequence.

    NOTE:
    • During adjustment, check the center display unit when prompted by the HDS. The 8 dots on each target sheet must be within their respective red box.
    • If the aiming procedure cannot be completed properly, review the instructions at the top of this procedure and make sure the instructions are followed correctly.
      • DRIVING SUPPORT (System Selection Menu)
      • Multi View Camera System
      • ADJUSTMENT
      • AUTO CAMERA AIMING

    Result

    • If the aiming procedure cannot be completed properly, go back to the NOTE at the top of this procedure and make sure the instructions are followed correctly.

    After Aiming

  4. Side Camera - Aim

    Preconditions

    Procedure/Specifications

    1. On the cord, mark a new point V1 in front of point X. (Figure 1)

    Distance Between Each Point (Figure 1)

    Position Specifications
    A 603 mm (23.74 in) '19-21
    606 mm (23.86 in) '22-23
    B 1, 333 mm (52.48 in)
    C 1, 400 mm (55.12 in)
    D 500 mm (19.69 in)
    E 2, 500 mm (98.43 in)

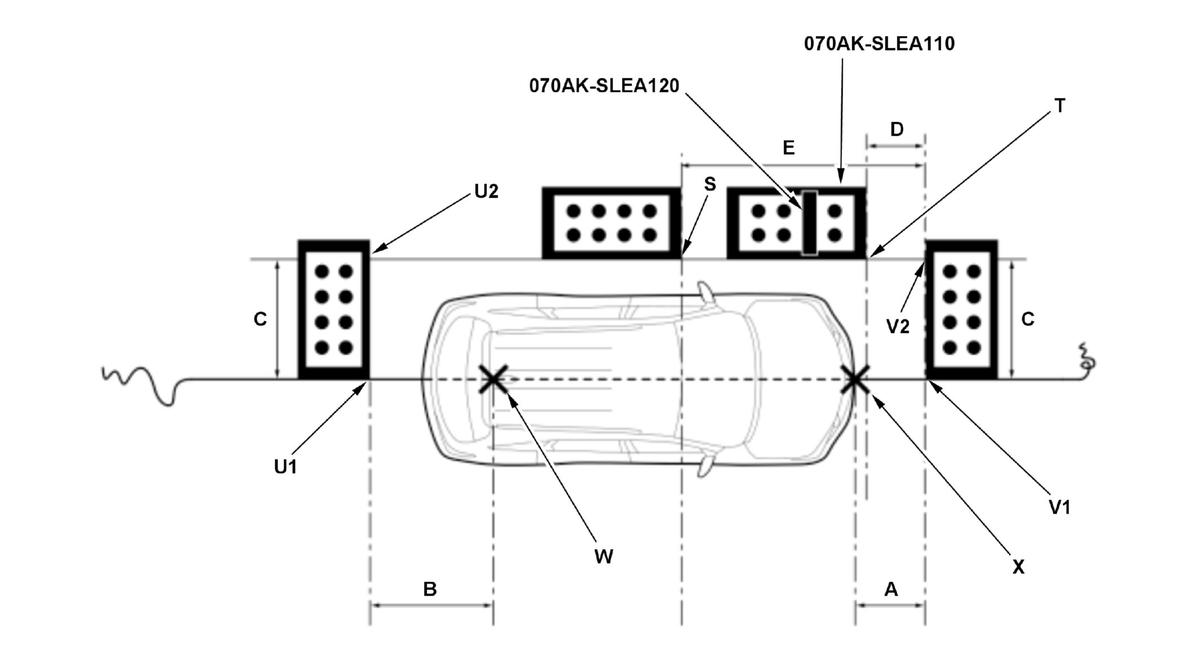

    Figure 1

    GHH556542Courtesy of HONDA, U.S.A., INC.

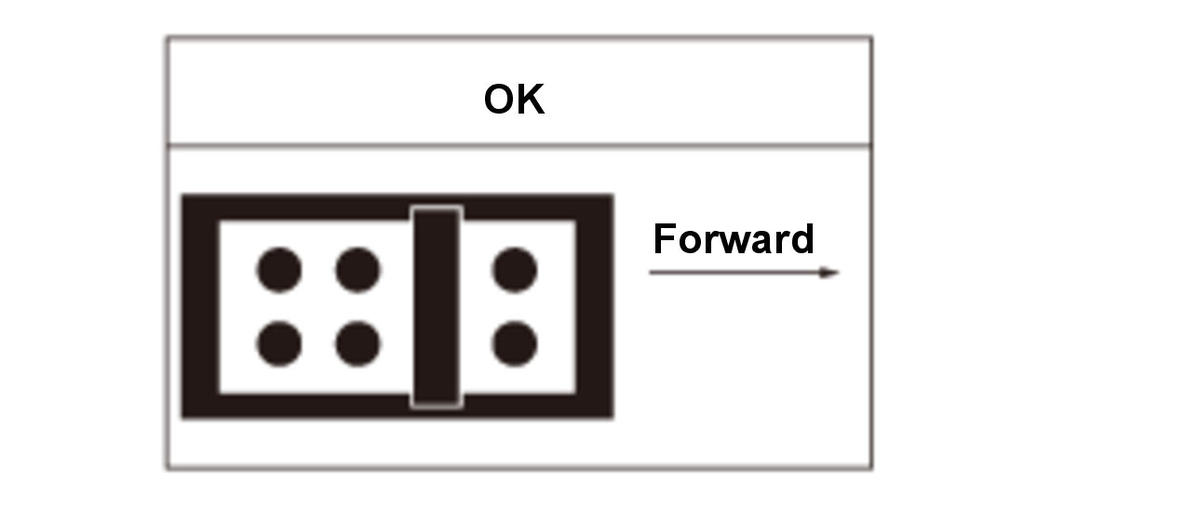

    Figure 2

    GHH556543Courtesy of HONDA, U.S.A., INC.
    NOTE:
    • This illustration shows how to place the target sheets on the left side of the vehicle. Placement of the target sheets on the right side is symmetrical.
    • The aiming of the side camera only requires 2 target sheets.
    • Although 4 target sheets are shown, the target sheets in the front and back of the vehicle are used to help make the additional reference lines for the placement of the target sheets on the side of the vehicle.

    2. On the cord, mark a new point U1 in front of point W. (Figure 1)

    3. Place one, 8 Dot Target Sheet at point V1 on the floor along the center-line. (Figure 1)

    4. Mark a new point V2 from V1 in the lateral direction next to the target sheet, then remove the target sheet. (Figure 1)

    5. Place one, 8 Dot Target Sheet at point U1 on the floor along the center-line. (Figure 1)

    6. Mark a new point U2 from U1 in the lateral direction next to the target sheet, then remove the target sheet. (Figure 1)

    7. Carefully align a string along points, V2 and U2 and tape both ends securely to the floor with tape. (Figure 1)

    8. On the string, mark a new point S and T. (Figure 1)

    9. Place the 8 Dot Target Sheets and one Mask Sheet at points S and T. (Figure 1 and 2)

    10. Select the following menu buttons on the HDS screen in sequence.

    NOTE:
    • During adjustment, check the center display unit when prompted by the HDS. The 8 dots on one target sheet and the 6 dots on the other target sheet must be within their respective red box.
    • If the aiming procedure cannot be completed properly, review the instructions at the top of this procedure and make sure the instructions are followed correctly.
      • DRIVING SUPPORT (System Selection Menu)
      • Multi View Camera System
      • ADJUSTMENT
      • AUTO CAMERA AIMING

    Result

    • If the aiming procedure cannot be completed properly, go back to the NOTE at the top of this procedure and make sure the instructions are followed correctly.

    After Aiming
