ANC/Active Sound Control Microphone Connector for Inputs and Outputs
NOTE:
The front ANC/active sound control microphone, front HFL-ANC/active sound control microphone, and the HFL microphone are the same parts.

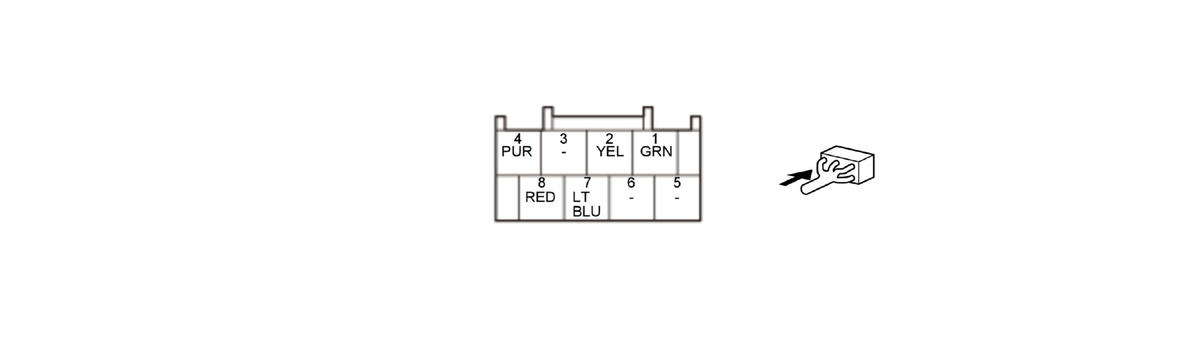

Front ANC/Active Sound Control Microphone 8P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | MIC- | Outputs HFL microphone signal |
| 2 | MIC+ | Outputs HFL microphone signal |
| 3 | Not used | --- |
| 4 | MIC_PWR | Power source for front HFL-ANC/active sound control microphone |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | HFT_MUTE | Inputs HFL microphone directivity switching signal |
| 8 | ANC_F_MIC+8V | Outputs front ANC/active sound control microphone signal |

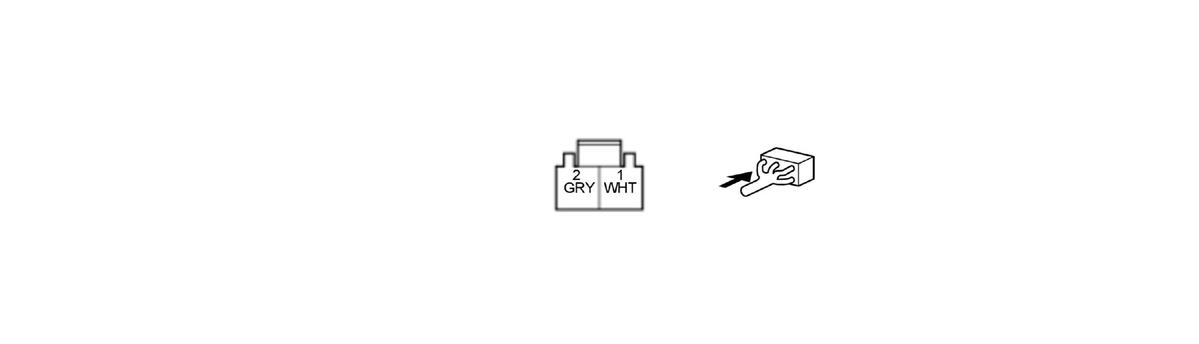

Middle ANC/Active Sound Control Microphone 2P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ANC_S_MIC+8V | Outputs middle ANC/active sound control microphone signal |
| 2 | SH_ANC_S_MIC | Shield for terminal No. 1 |

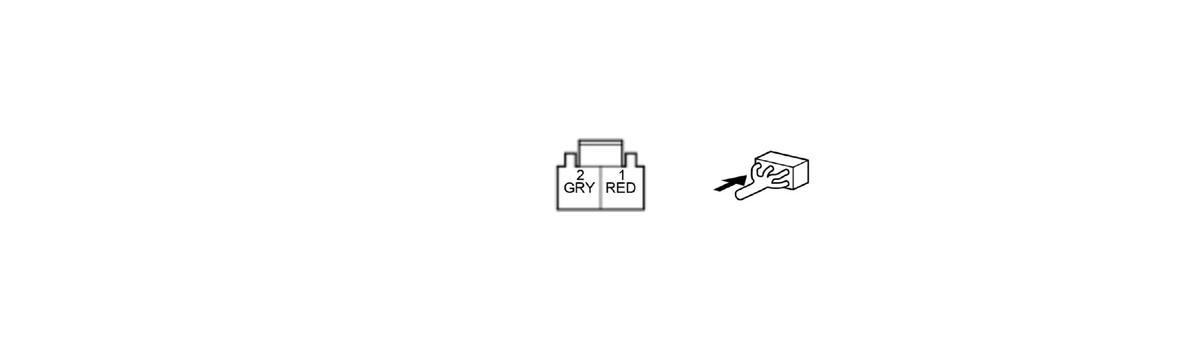

Rear ANC/Active Sound Control Microphone 2P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ANC_R_MIC+8V | Outputs rear ANC/active sound control microphone signal |
| 2 | SH_ANC_R_MIC | Shield for terminal No. 1 |
