Audio Remote-HFL Switch Connector for Inputs and Outputs

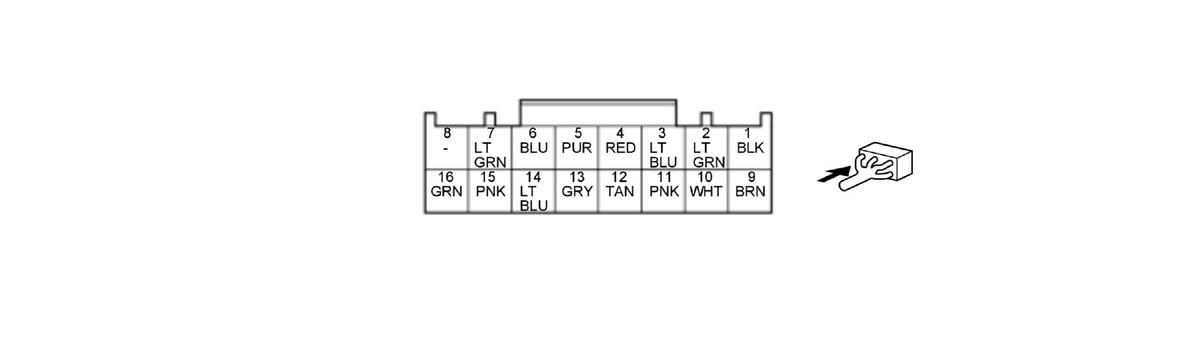

Audio Remote-HFL Switch 16P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | SGND | Ground for audio remote-HFL switch |
| 2 | R_PUSH/LEFT/RIGHT | Detects multi-information switch operation signal |
| 3 *1 | R_STRG_ILL+ | Outputs illumination signal for paddle shifter |
| 4 | R_STRG_ILL+ | Outputs illumination signal for ACC combination switch |
| 5 *2 | HSW_INDICATOR | Outputs heated steering wheel switch indicator on signal |
| 6 | LIN (METER) | Communication signal for gauge control module |
| 7 *2 | LIN (METER) | Communication signal for heated steering wheel control unit |
| 8 | Not used | --- |
| 9 *2 | SGND | Ground for heated steering wheel control unit |
| 10 | R_PHASE_A | Inputs right selector wheel control signal |
| 11 | R_PHASE_B | Inputs right selector wheel control signal |
| 12 *1 | R_STRG_ILL- | Illumination control signal for paddle shifter |
| 13 | R_STRG_ILL- | Illumination control signal for ACC combination switch |
| 14 *2 | HSW_SWITCH | Outputs heated steering wheel switch operation signal |
| 15 *2 | HSW_SW_+B | Inputs power source for heated steering wheel switch |
| 16 | +B_BACKUP | Continuous power source |
| *1: With paddle shifter illumination *2: With heated steering wheel |
||
