Auxiliary Jack Assembly Connector for Inputs and Outputs

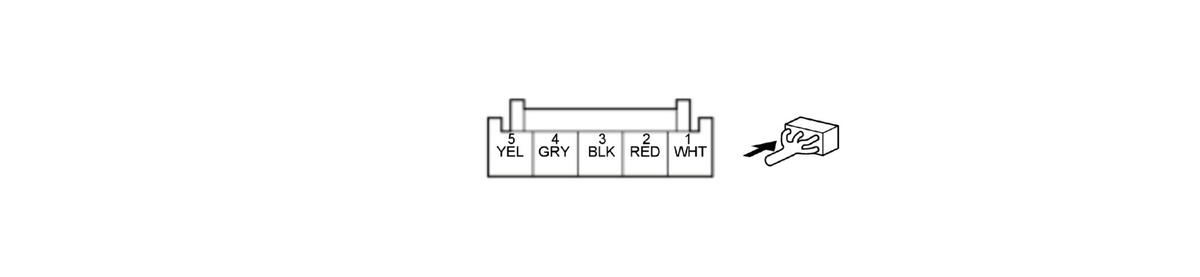

Auxiliary Jack Assembly 5P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
1	AUX_R_CH	Outputs auxiliary sound signal
2	AUX_L_CH	Outputs auxiliary sound signal
3	AUX_SGND	Ground for auxiliary sound signal
4	SH_AUX	Shield for terminals No. 1, No. 2, and No. 3
5	AUX_DET	Inputs detection signal for auxiliary jack assembly
