How to Check MOST Bus Condition

If the MOST bus network is broken, it is not possible to diagnose on the System Diagnostic Mode. To check the MOST bus connection, do the ECL test using the multi-information display (MID) in the gauge control module. This test is performed using the diagnostic function of the MOST_ECL line.

1. Close all doors and the tailgate.

2. Turn the vehicle to the ON mode.

3. Press the right selector wheel on the ACC combination switch to dismiss all warning or information messages displayed on the multi-information display (MID).

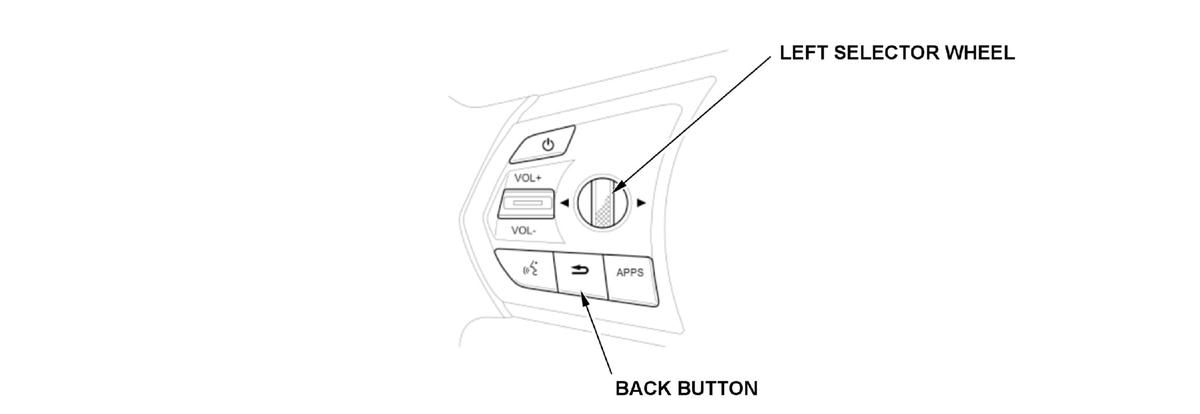

4. Hold down the left selector wheel on the audio remote-HFL switch and then press and hold the BACK button until the MOST bus diagnosis screen is displayed (for about 5 seconds).

Courtesy of HONDA, U.S.A., INC.

5. This diagnosis checks Pwr (power) and Sig (signal) status for each control unit on the MOST bus network.

• Meter (Gauge control module)
• Infotainment (Infotainment control unit)
• Amplifier (Stereo amplifier)
• Remote Tuner (Tuner unit)

Symbols

Symbol		Status
Courtesy of HONDA, U.S.A., INC.	GREEN (OK)	The power or MOST signal status is OK at this time.
Courtesy of HONDA, U.S.A., INC.	RED (NG)	The control unit lost power or cannot receive a MOST signal. If the control unit lost power, both the PWR and SIG symbol indicates it. If the unit is not equipped to the vehicle, or is not connected to the module using the bus, both the PWR and SIG symbol indicates it.

Check for Pwr and Sig indication pattern.

Indication Pattern

PWR	SIG	Solution
Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	If all control units indicate this pattern, the power and MOST signal status are OK at this time.

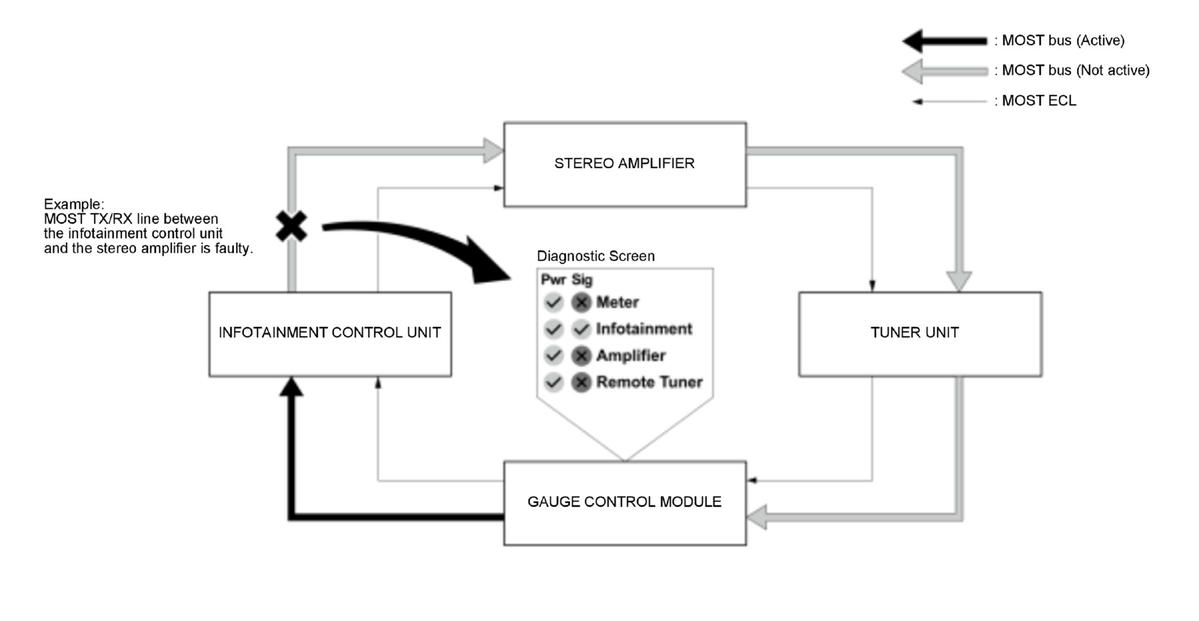

Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	The unit is online but is not receiving signal on the network. Check the MOST TX+/MOST RX+ and MOST TX-/MOST RX- lines between the first control unit (RED) and the last control unit (GREEN) in the MOST bus network. If the wire is OK, substitute these items to a known-good one - Refer to: Audio and Visual System Component Location Index or Audio and Visual System Component Location Index (2022 2023) , and recheck:
Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Check for ground circuit for the RED symbol control unit. If the wires are OK, the control unit's internal power circuit may be faulty. Substitute a known-good control unit - Refer to: Audio and Visual System Component Location Index or Audio and Visual System Component Location Index (2022 2023) , and recheck.
Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	The control unit is either offline or not equipped. NOTE: If all units indicate double dashes, the MOST_ECL line may be shorted. Check the power and ground circuits for the control unit. If the wires are OK, substitute a known-good control unit - Refer to: Audio and Visual System Component Location Index or Audio and Visual System Component Location Index (2022 2023) , and recheck.

Courtesy of HONDA, U.S.A., INC.

6. To exit the ECL test, press the BACK button on the audio remote-HFL switch, or turn the vehicle to the OFF (LOCK) mode.
