Start-Up Procedure and Diagnostic Menu
1. Turn the vehicle to the ON mode. If needed, start the engine.
2. Press and hold the BACK, HOME, and MENU buttons until the Dealer Diagnostics menu screen is displayed (for about 10 seconds).
NOTE:
Swipe the touchpad to move the pointer (A) to the item you want to select, and click on the touchpad.
- SELF-DIAGNOSIS MODE (runs the automatic diagnosis of the audio and visual system)
- DETAIL INFORMATION and SETTING (allows you to manually diagnose the audio and visual system)

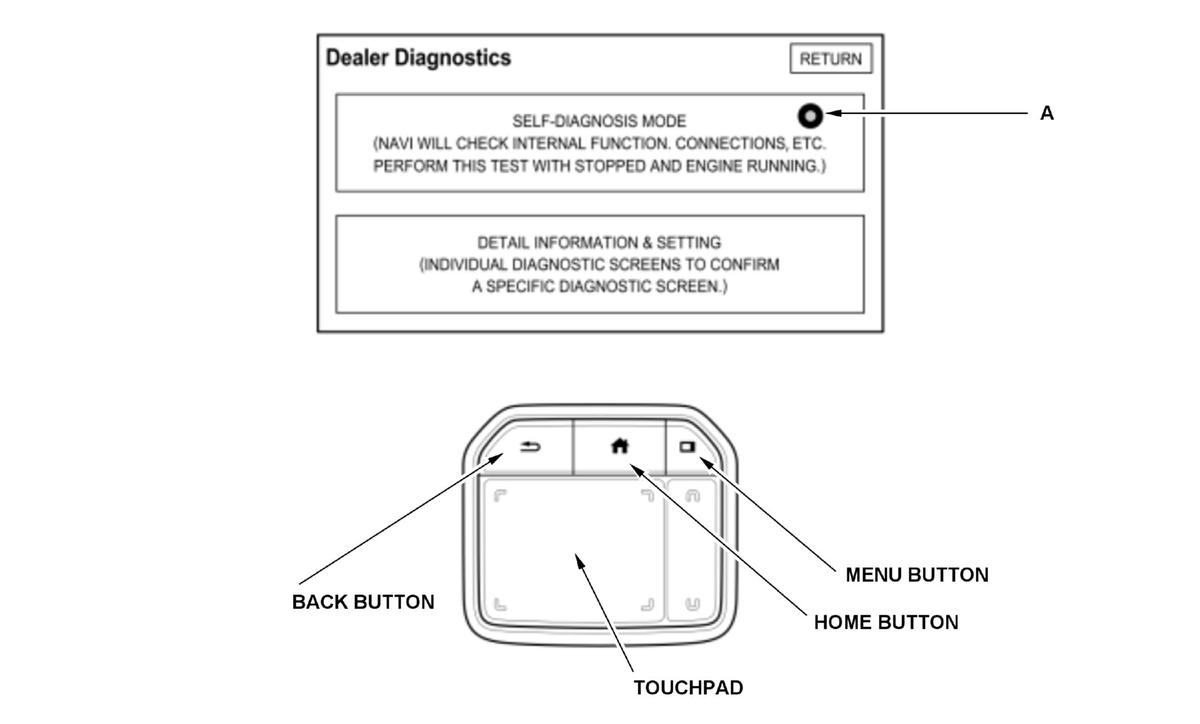

Displaying Dealer Diagnostics Menu Screen
