CAN Gateways

NOTE: This diagnosis must have the engine running.

This diagnosis checks whether the infotainment control unit has received specific B-CAN or F-CAN data using the MOST bus.

If OK, an error is not detected between the B-CAN bus or the F-CAN bus and the infotainment control unit via the gateway.
If NOK (not OK), an error is detected on the gateway or each F-CAN or B-CAN data.

Select the item you want to check, and the test begins. To return to the previous screen, select the RETURN icon.

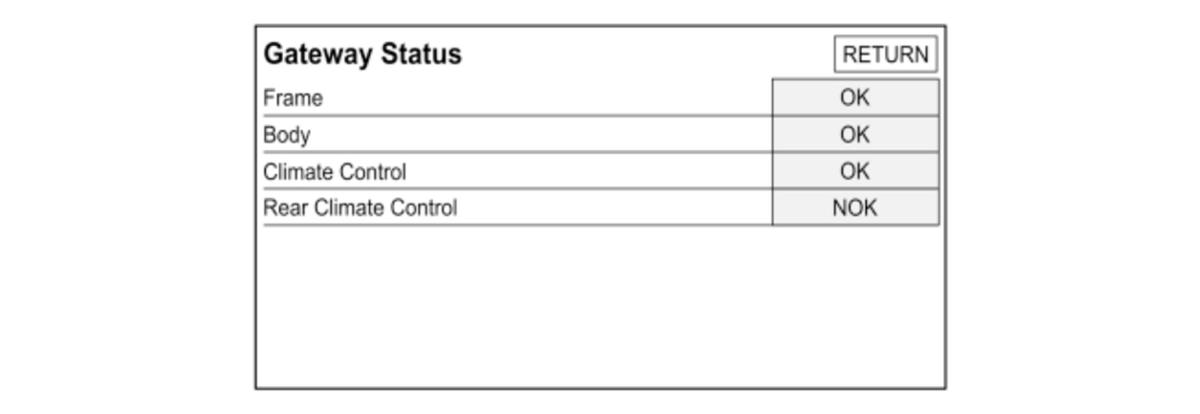

Gateway Status

Courtesy of HONDA, U.S.A., INC.
