Signal (CAMERA_BIT1), Signal (CAMERA_BIT0) Circuit Inspection

Test Procedure

• Preparation

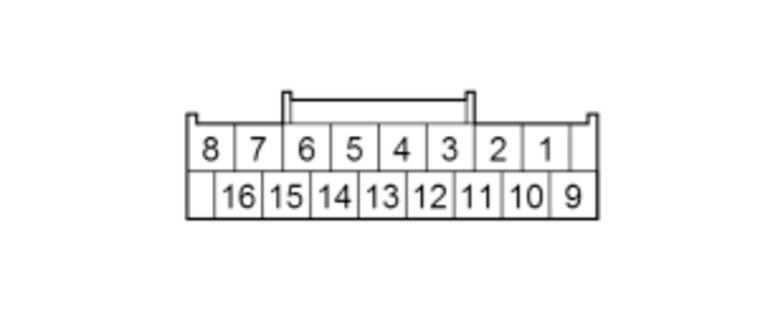

  • Center display unit connector C (16P) : disconnected

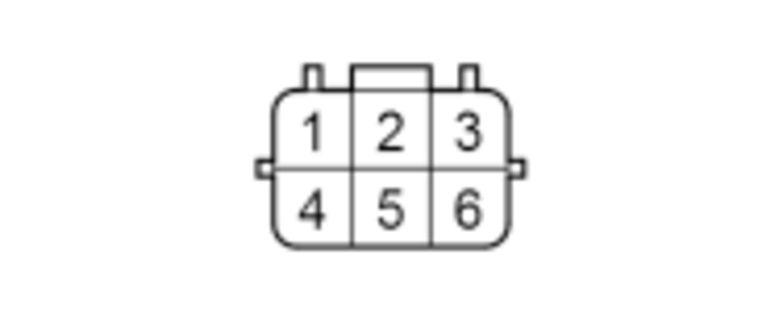

  • Rearview camera 6P connector : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Center display unit connector C (16P) female terminals	(Disconnected) Rearview camera 6P connector female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	CAMERA_BIT1 open wire inspection	OFF			There is less than 1 Ω
    	CAMERA_BIT0 open wire inspection	OFF			There is less than 1 Ω
    	CAMERA_BIT1, CAMERA_BIT0 shorted wire to wire inspection	OFF			There is more than 1 MΩ
    	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	CAMERA_BIT1 shorted to ground inspection	OFF			Not shorted
    	CAMERA_BIT0 shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.
