Infotainment Control Unit Connector for Inputs and Outputs (2019 2020 2021)
| Connector Index |
| Infotainment Control Unit Connector A (20P) |
| Infotainment Control Unit Connector B (3P) |
| Infotainment Control Unit Connector C (5P) |
| Infotainment Control Unit Connector D (2P) |
| Infotainment Control Unit Connector E (2P) |
| Infotainment Control Unit Connector F (2P) |
| Infotainment Control Unit Connector J (2P) |

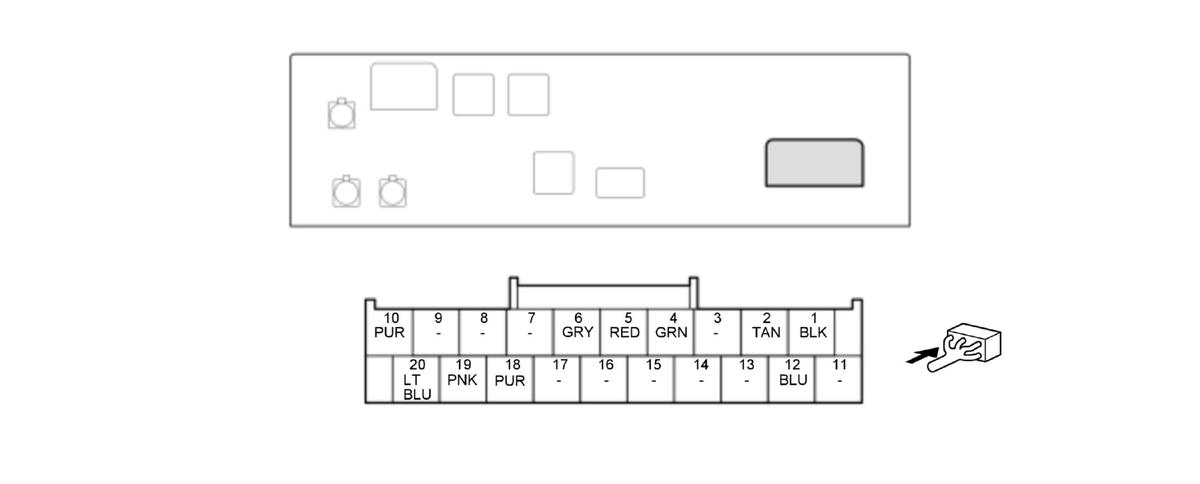

Infotainment Control Unit Connector A (20P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GND |
Ground for infotainment control unit (G404) |
| A2 |
+B_AUDIO |
Continuous power source |
| A3 |
Not used |
--- |
| A4 |
RS485+ |
Communication signal to touchpad unit |
| A5 |
RS485- |
Communication signal to touchpad unit |
| A6 |
SH_RS485 |
Shield for terminals No. 4 and No. 5 |
| A7 |
Not used |
--- |
| A8 |
Not used |
--- |
| A9 |
Not used |
--- |
| A10 |
DISP_CONT |
Outputs signal for center display unit switching on/off |
| A11 |
Not used |
--- |
| A12 |
TOUCHPAD_CONT |
Outputs signal for touchpad unit switching on/off |
| A13 |
Not used |
--- |
| A14 |
Not used |
--- |
| A15 |
Not used |
--- |
| A16 |
Not used |
--- |
| A17 |
Not used |
--- |
| A18 |
MOST_ECL |
Inputs ECL signal |
| A19 |
MOST_ECL |
Outputs ECL signal |
| A20 |
K-LINE |
Detects scan tool signal (serial data) |

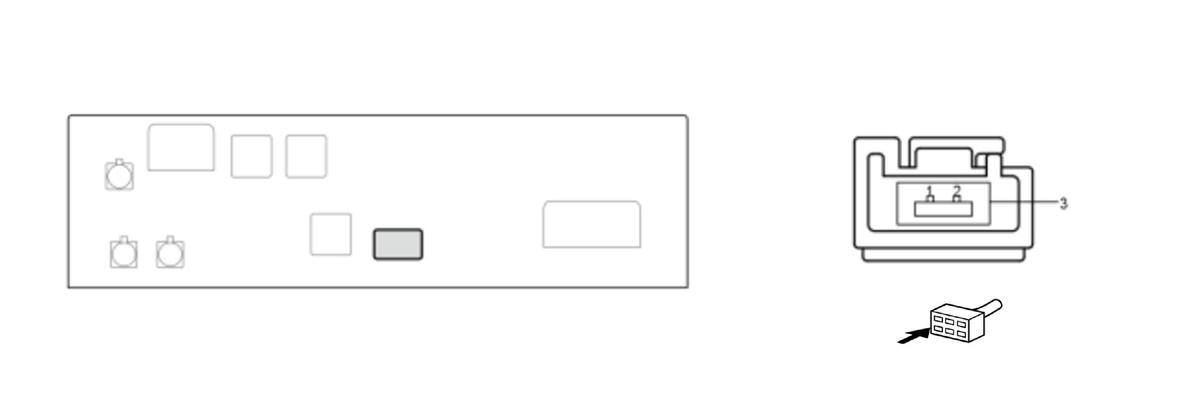

Infotainment Control Unit Connector B (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
LVDS + |
Communication signal for center display unit |
| B2 |
LVDS - |
Communication signal for center display unit |
| B3 |
LVDS SH |
Shield for terminals No. 1 and No. 2 |

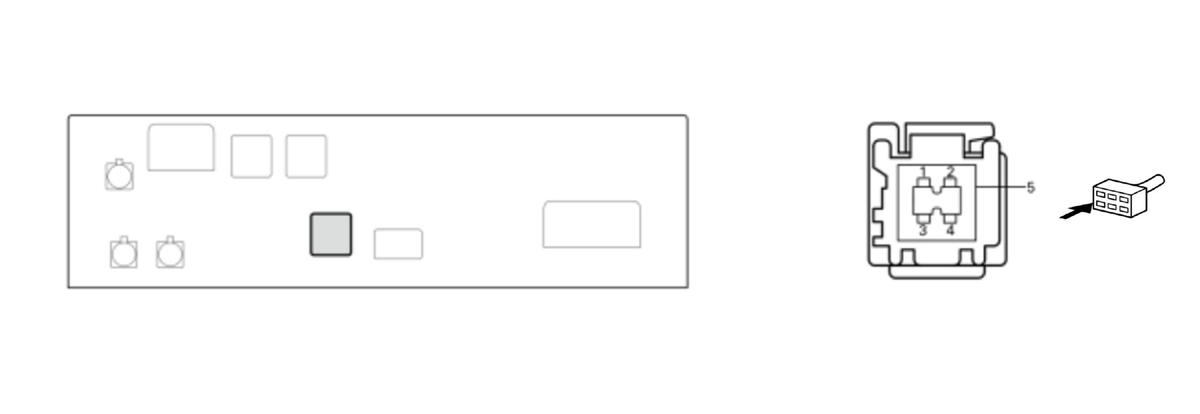

Infotainment Control Unit Connector C (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
USB GND |
Ground for USB port A |
| C2 |
USB VBUS |
Outputs power source for USB port A |
| C3 |
USB DATA+ |
Communication signal |
| C4 |
USB DATA- |
Communication signal |
| C5 |
USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

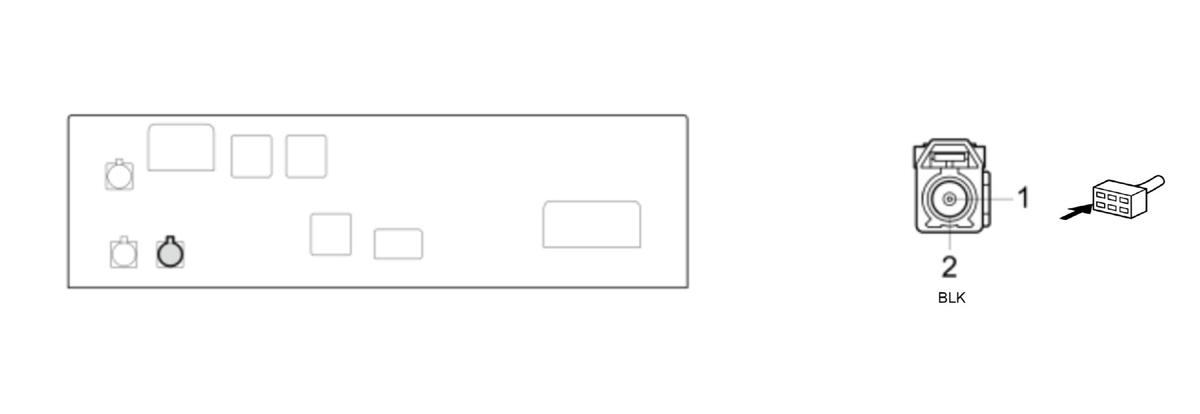

Infotainment Control Unit Connector D (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| D1 |
MOST RX+ |
Inputs MOST communication signal |
| D2 |
MOST RX- |
Shield for terminal No. 1 |

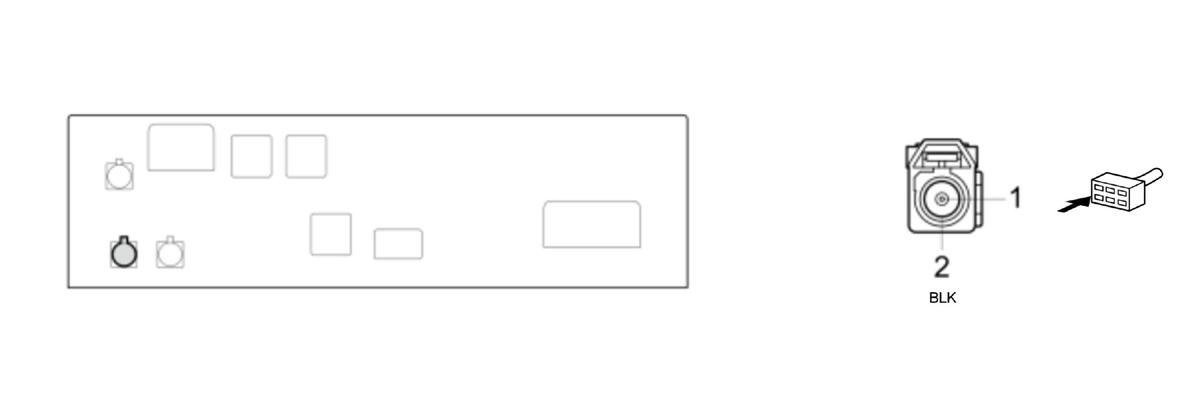

Infotainment Control Unit Connector E (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| E1 |
MOST TX+ |
Outputs MOST communication signal |
| E2 |
MOST TX- |
Shield for terminal No. 1 |

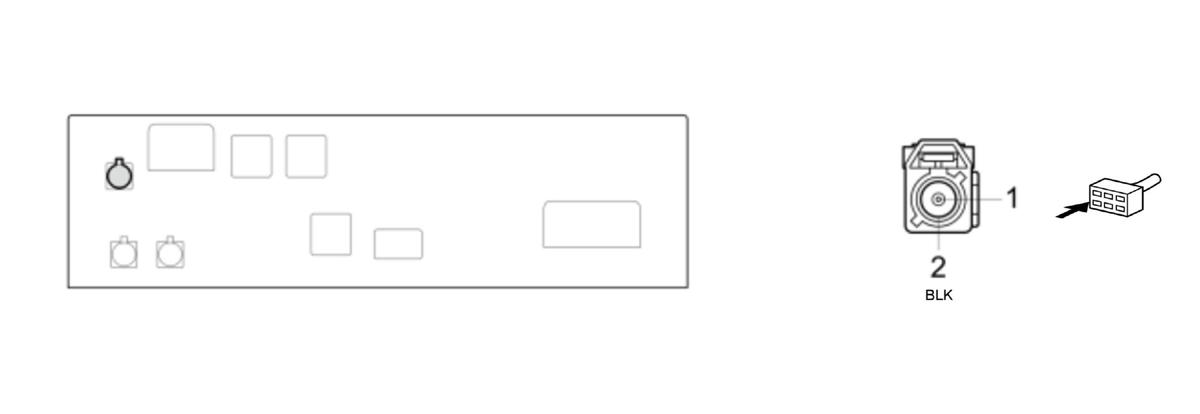

Infotainment Control Unit Connector F (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| F1 |
GNSS (NAVI) |
Inputs GPS signal |
| F2 |
SH (GNSS (NAVI)) |
Shield for terminal No. 1 |

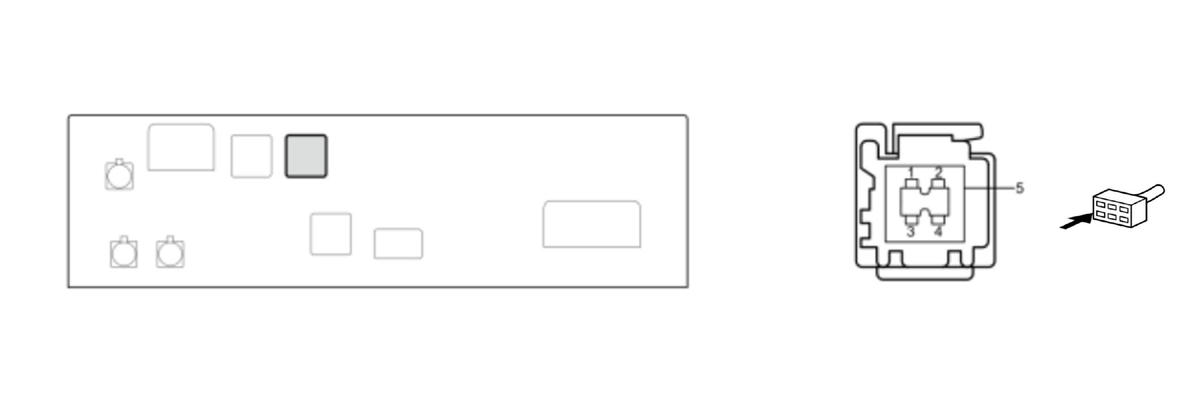

Infotainment Control Unit Connector J (5P) (female terminals) (With AcuraLink™)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| J1 |
USB GND |
Ground for USB |
| J2 |
USB VBUS |
Outputs power source for USB |
| J3 |
USB DATA+ |
Communication signal |
| J4 |
USB DATA- |
Communication signal |
| J5 |
USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
