XM (With XM)

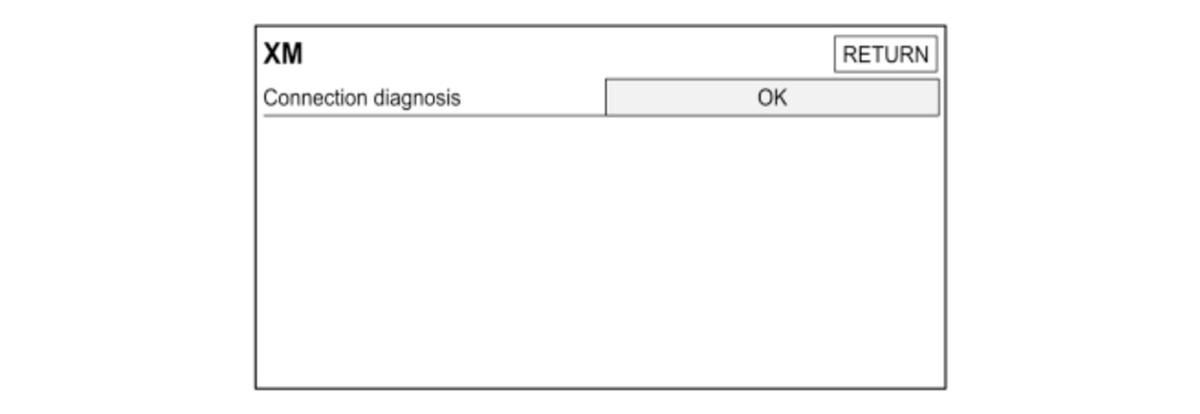

This diagnosis checks the XM tuner connection. The XM tuner is built into the tuner unit.

If the Connection diagnosis shows NOK (not OK), substitute a known-good tuner unit, and recheck - Refer to: Audio and Visual System Component Location Index or Audio and Visual System Component Location Index (2022 2023) .

GHH553943Courtesy of HONDA, U.S.A., INC.
