Entry Lights Control System Component Location Index

GHH334935Courtesy of HONDA, U.S.A., INC.

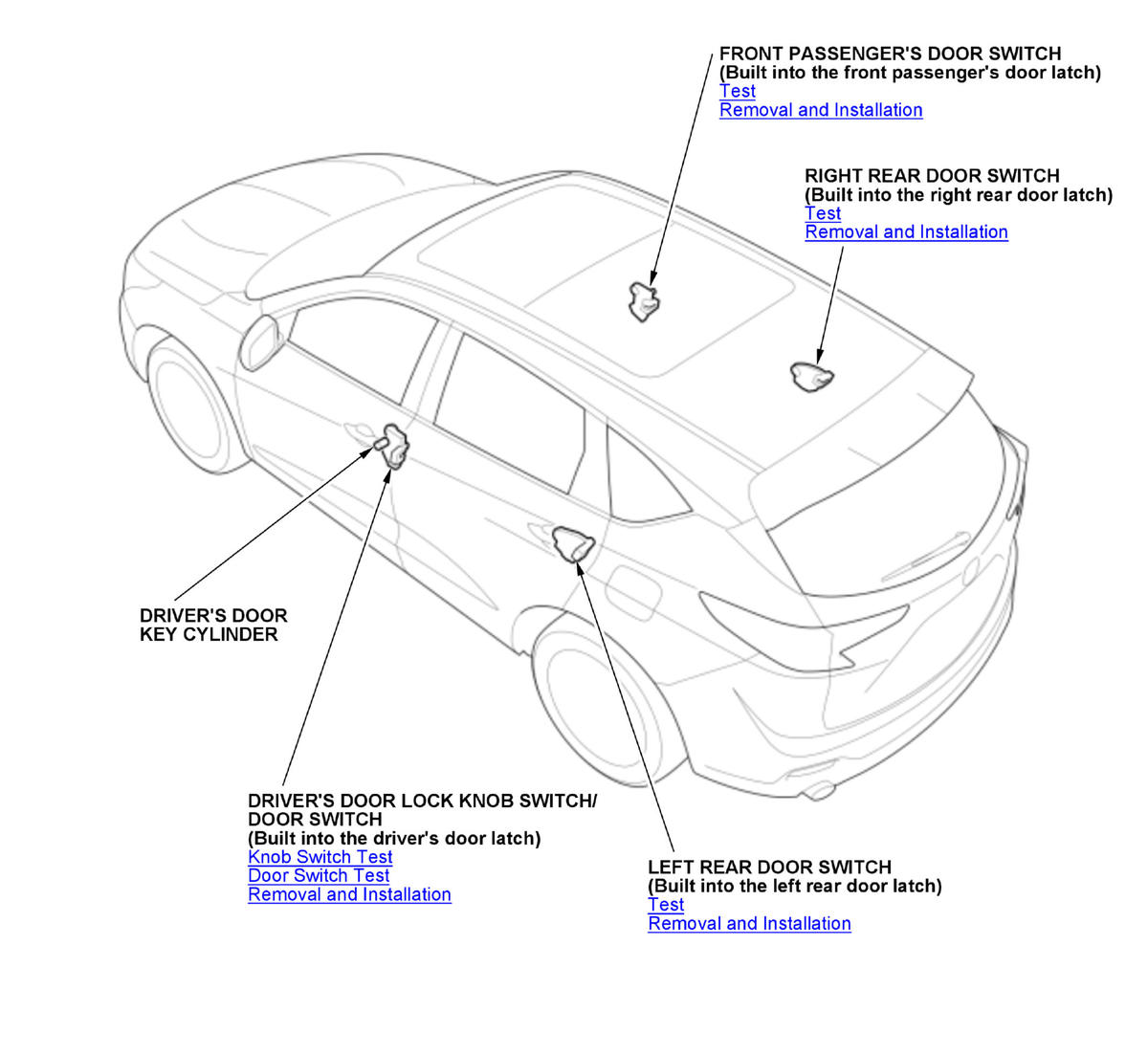

GHH334936Courtesy of HONDA, U.S.A., INC.

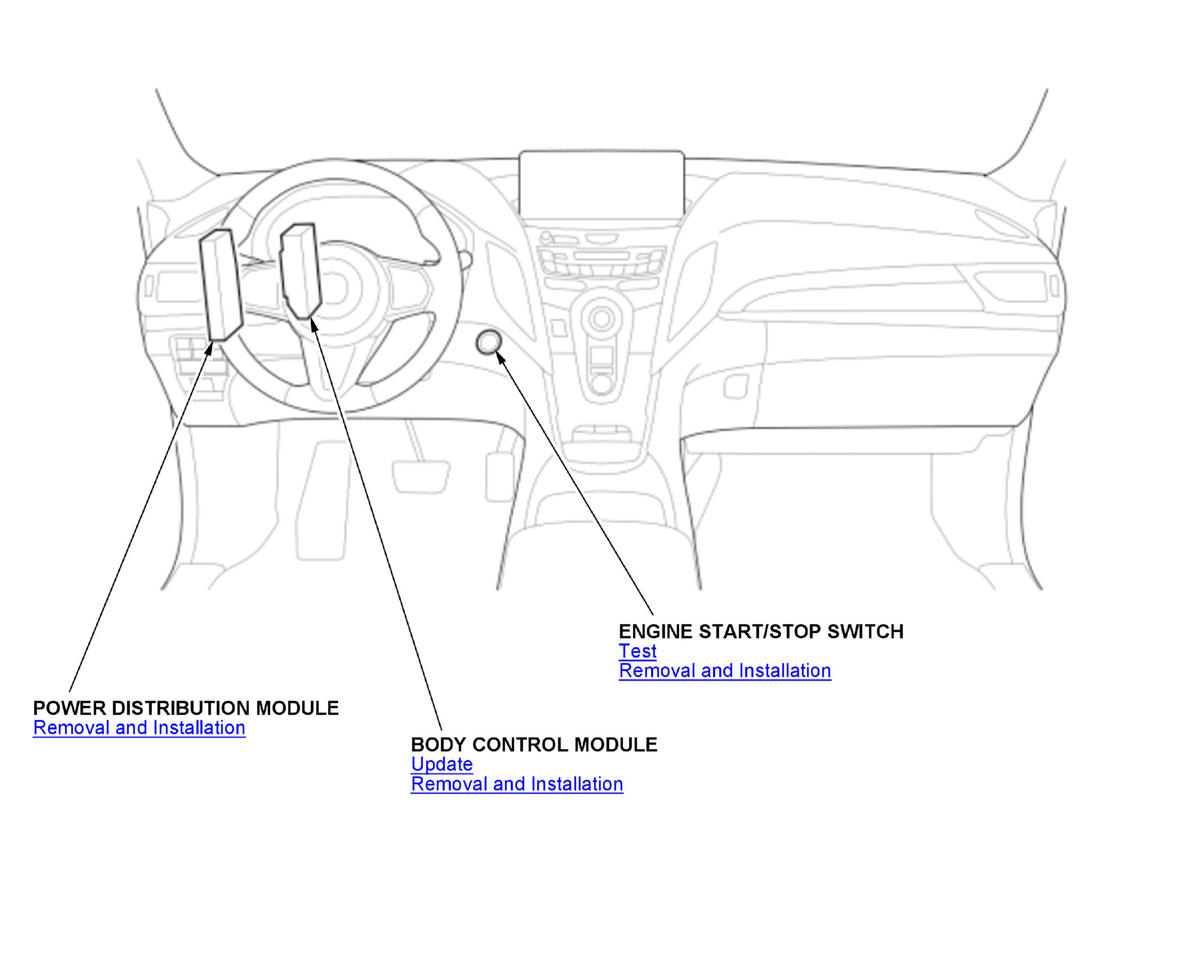

GHH334937Courtesy of HONDA, U.S.A., INC.
