Repair Procedure: Notes

How to use this Service Information .

NOTE:
  • Clean the disassembled parts with solvent, then dry the disassembled parts with compressed air. Do not wash the rubber parts with solvent.

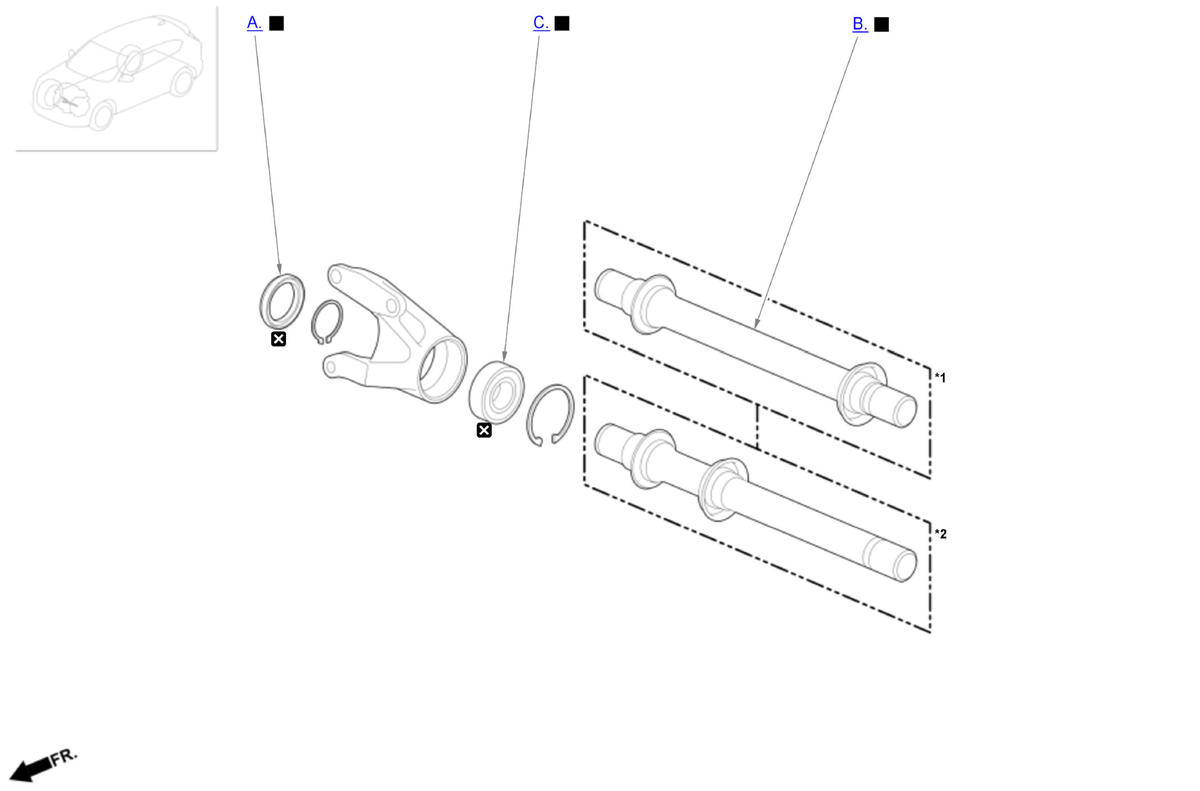

GHH339940Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: Without AWD
*2: With AWD
