Under-Dash Fuse/Relay Box

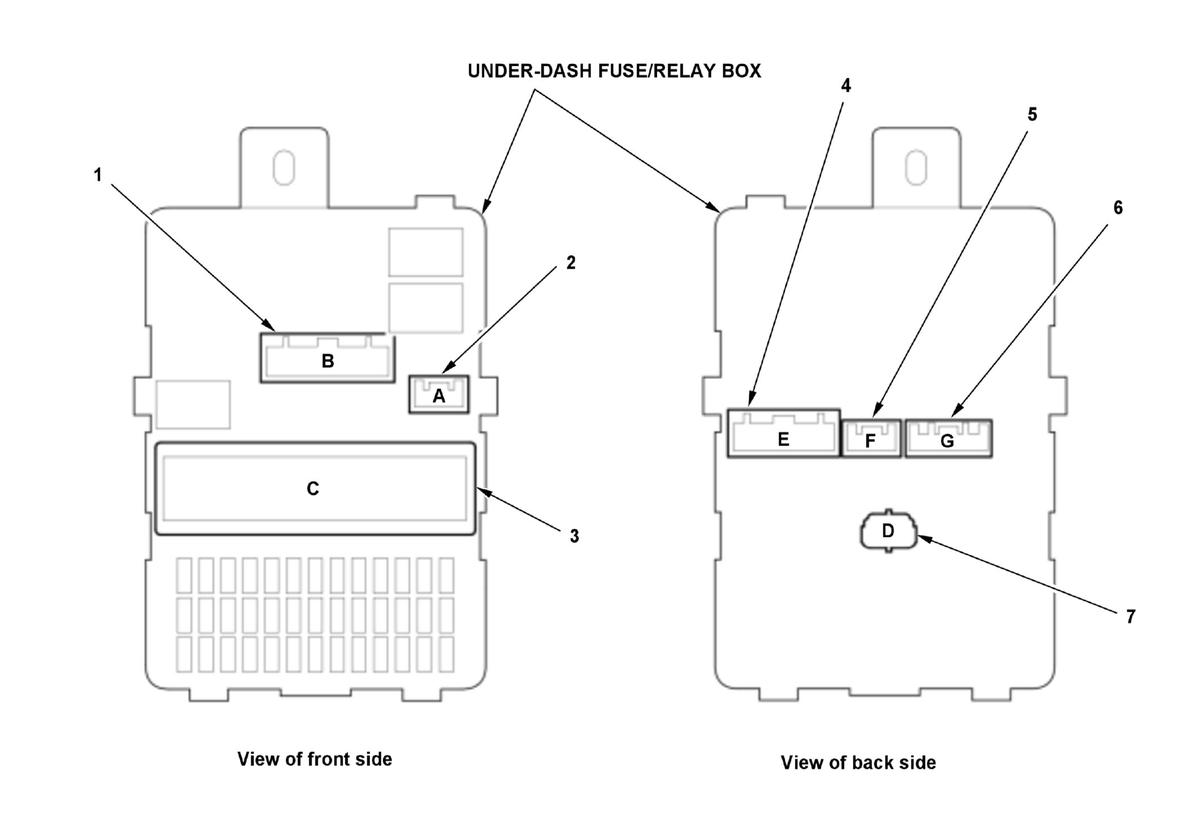

GHH331776Courtesy of HONDA, U.S.A., INC.
Socket Ref Terminal Connects to Notes
A (optional connector) 2 4 Not used
B 1 22 Floor wire harness
C 3 27 Engine compartment wire harness
D 7 4 Dashboard wire harness
E 4 18 Dashboard wire harness
F 5 12 Dashboard wire harness
G 6 20 Dashboard wire harness
