Exploded View
NOTE:
- Unless otherwise indicated, illustrations used in the procedure are for the adaptive damper system.
- In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.
For replacement of components listed below, see Repair Procedure .
| *1: Left side of the vehicle *2: Right side of the vehicle *3: Without AWD *4: With AWD |

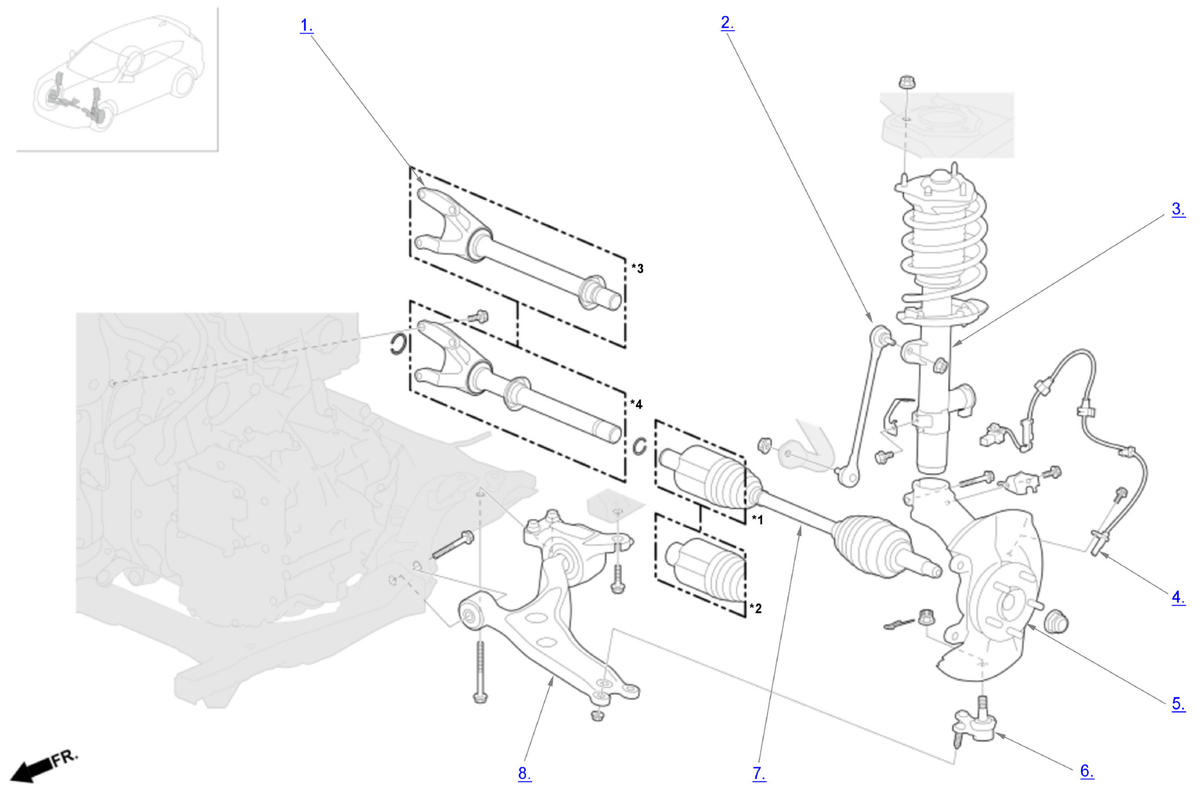

Front Suspension Area Components
| Component Name | Callout |
|---|---|
| Intermediate Shaft | 1 |
| Front Stabilizer Link | 2 |
| Front Damper/Spring | 3 |
| Wheel Speed Sensor | 4 |
| Front Knuckle/Hub/Wheel Bearing | 5 |
| Front Lower Arm Ball Joint | 6 |

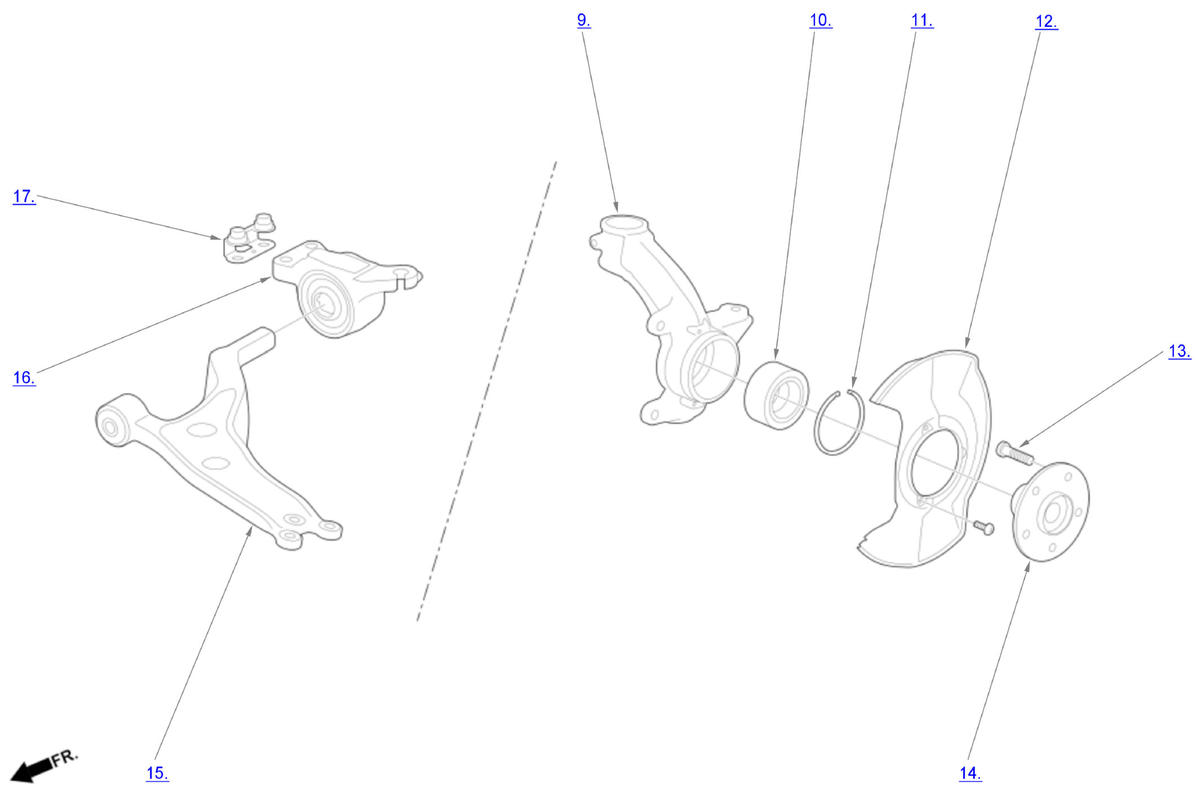

| Front Driveshaft | 7 |
| Front Lower Arm Assembly | 8 |
| Front Knuckle | 9 |
| Wheel Bearing | 10 |
| Snap Ring | 11 |
| Splash Guard | 12 |
| Wheel Bolt | 13 |
| Front Hub | 14 |
| Front Lower Arm | 15 |
| Front Lower Arm Compliance Bush | 16 |
| Front Lower Arm Compliance Bracket Clamp | 17 |
