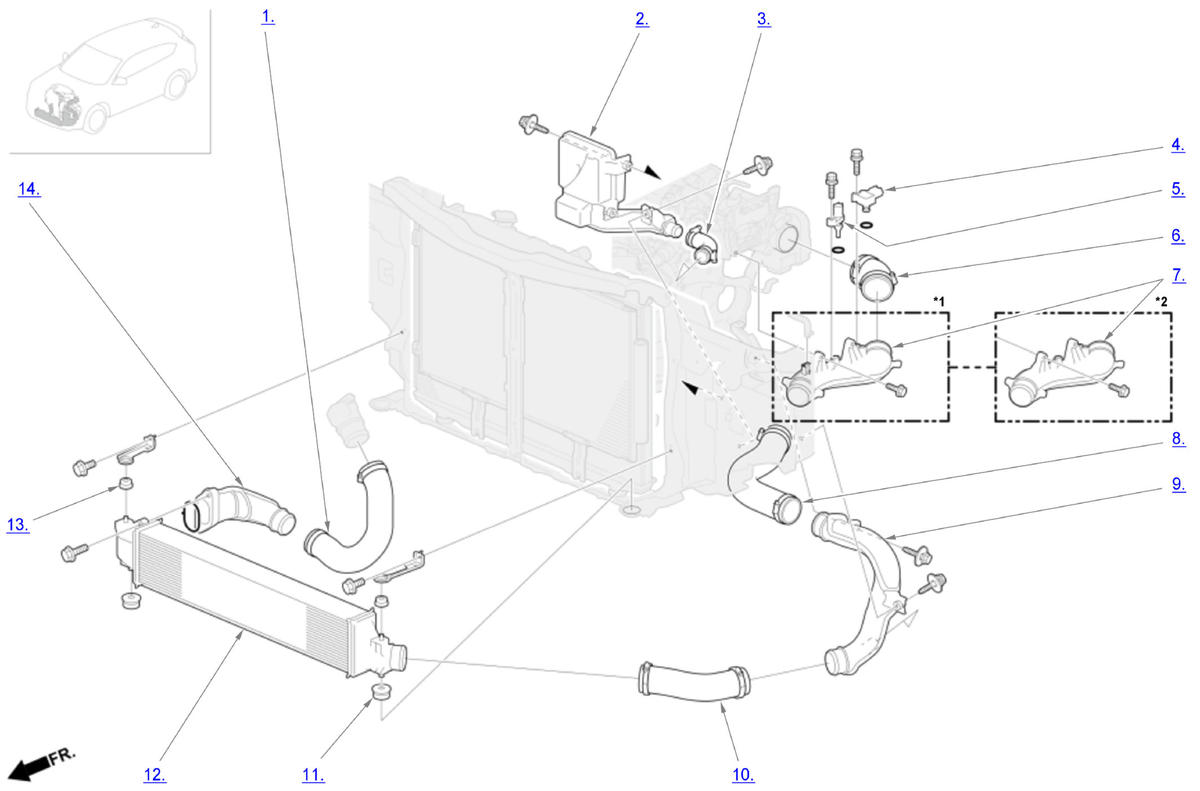

Exploded View
| *1: USA and Canada models *2: Mexico models |
Intercooler Area Components
| Component Name | Callout |
|---|---|
| Turbocharger Outlet Hose | 1 |
| Intake Air Resonator A | 2 |
| Resonator Hose | 3 |
| Turbocharger Boost Sensor | 4 |
| Intake Air Temperature (IAT) Sensor 2 | 5 |
| Throttle Body Inlet Hose | 6 |
| Throttle Body Inlet Pipe | 7 |
| Intercooler Outlet Hose B | 8 |
| Intercooler Outlet Pipe | 9 |
| Intercooler Outlet Hose | 10 |
| Lower Cushion | 11 |
| Intercooler | 12 |
| Upper Cushion | 13 |
| Intercooler Inlet Pipe | 14 |
