Repair Procedure: Notes

How to use this Service Information .

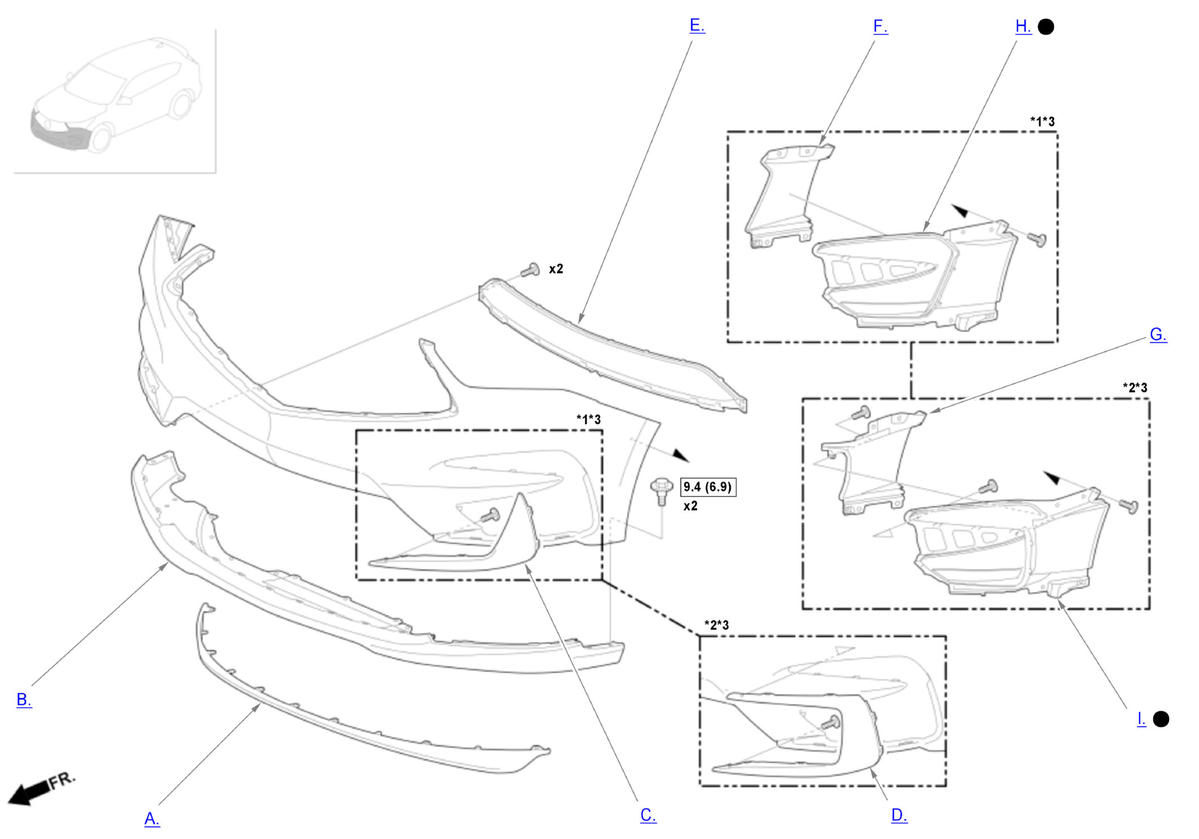

Fig 1: Front Bumper Components Replacement Components With Torque Specifications
GHH339522Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : SPL Tool : Required Removal
*1: Except A-SPEC Type
*2: A-SPEC Type
*3: Part(s) are shown for one side only as the procedure is the same for both sides.
