Climate Control Unit Connector for Inputs and Outputs
| Connector Index |
|---|
| Climate Control Unit Connector A (32P) |
| Climate Control Unit Connector B (24P) |

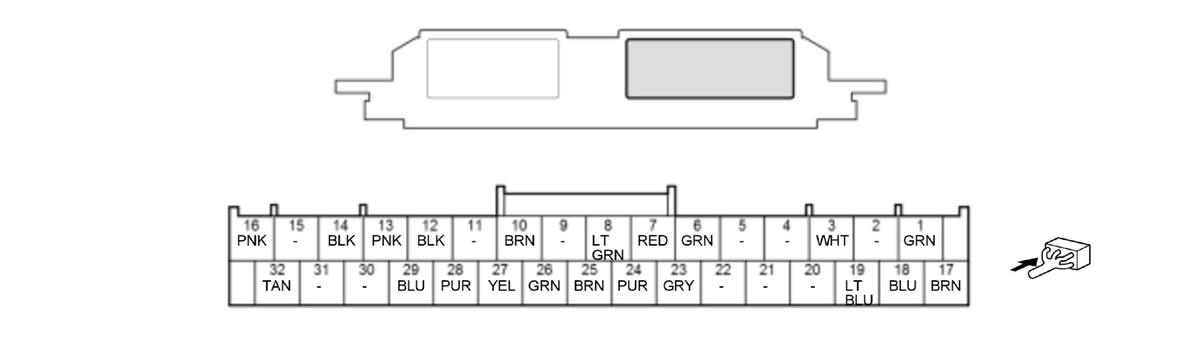

Climate Control Unit Connector A (32P) (female terminals)
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | IG1_BACKUP(VST) | IG1 power source |
| 2 | Not used | ---- |
| 3 | BUS-DATA | BUS-DATA communication signal |
| 4 | Not used | ---- |
| 5 | Not used | ---- |
| 6 | MDD-P | Detects potentiometer signal of mode control motor (door position) |
| 7 | AMD-P_DR | Detects potentiometer signal of driver's air mix control motor (door position) |
| 8 *1 | AMD-P_RR | Detects potentiometer signal of rear air mix control motor (door position) |
| 9 | Not used | ---- |
| 10 *1 | RR_SW_VOL | Detects potentiometer signal of rear temperature control dial (dial position) |
| 11 | Not used | ---- |
| 12 | S_5V | Outputs sensor 5 V |
| 13 | SENSOR_COM | Sensor ground |
| 14 | GND | Ground for climate control unit (G405) |
| 15 | Not used | ---- |
| 16 | B-CAN_H | B-CAN communication signal |
| 17 | IG2_OPTION | IG2 power source |
| 18 | BLOWER_V | Feedback signal of power transistor drain voltage |
| 19 | BLOWER_G | Outputs power transistor gate voltage |
| 20 | Not used | ---- |
| 21 | Not used | ---- |
| 22 | Not used | ---- |
| 23 | AMD-P_AS | Detects potentiometer signal of passenger's air mix control motor (door position) |
| 24 | RFD-P | Detects potentiometer signal of recirculation control motor (door position) |
| 25 | TEVA | Detects evaporator temperature sensor signal |
| 26 | TR | Detects in-car temperature sensor signal |
| 27 | HUM_DATA | Detects humidity sensor signal |
| 28 *2 | TSUN | Detects sunlight sensor signal |
| 29 | TAM | Detects outside air temperature sensor signal |
| 30 | Not used | ---- |
*1: With rear temperature control *2: With automatic wiper
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 31 | Not used | ---- |
| 32 | B-CAN_L | B-CAN communication signal |
*1: With rear temperature control *2: With automatic wiper
Climate Control Unit Connector B (24P) (female terminals)
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | SOL_IN | Outputs to A/C compressor variable capacity control solenoid |
| 2 | M-HOT_DR | Outputs to drive driver's air mix control motor to HOT side |
| 3 | M-COOL_DR | Outputs to drive driver's air mix control motor to COOL side |
| 4 | M-HOT_AS | Outputs to drive passenger's air mix control motor to HOT side |
| 5 | M-COOL_AS | Outputs to drive passenger's air mix control motor to COOL side |
| 6 * | M-HOT_RR | Outputs to drive rear air mix control motor to HOT side |
| 7 * | M-COOL_RR | Outputs to drive rear air mix control motor to COOL side |
| 8 | MODE_MTR_DEF | Outputs to drive mode control motor to DEF side |
| 9 | MODE_MTR_VENT | Outputs to drive mode control motor to VENT side |
| 10 | Not used | ---- |
| 11 | Not used | ---- |
| 12 | Not used | ---- |
| 13 | SOL_OUT | Detects feedback signal of A/C compressor variable capacity control solenoid |
| 14 | F/R_MTR(FRESH) | Outputs to drive recirculation control motor to FRESH side |
| 15 | F/R_MTR(REC) | Outputs to drive recirculation control motor to RECIRCULATE side |
| 16 | Not used | ---- |
| 17 | Not used | ---- |
| 18 | Not used | ---- |
| 19 | Not used | ---- |
| 20 | Not used | ---- |
| 21 | Not used | ---- |
| 22 | Not used | ---- |
| 23 | Not used | ---- |
| 24 | Not used | ---- |
*: With rear temperature control
