Repair Procedure: Procedure

A.
■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

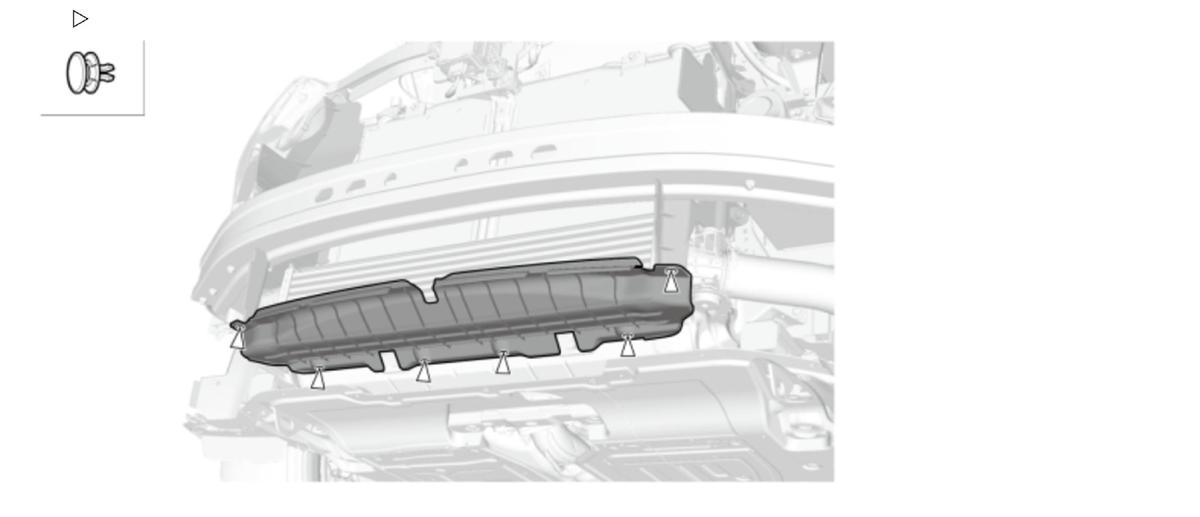

• Removal
- Refer to the figure.
B.

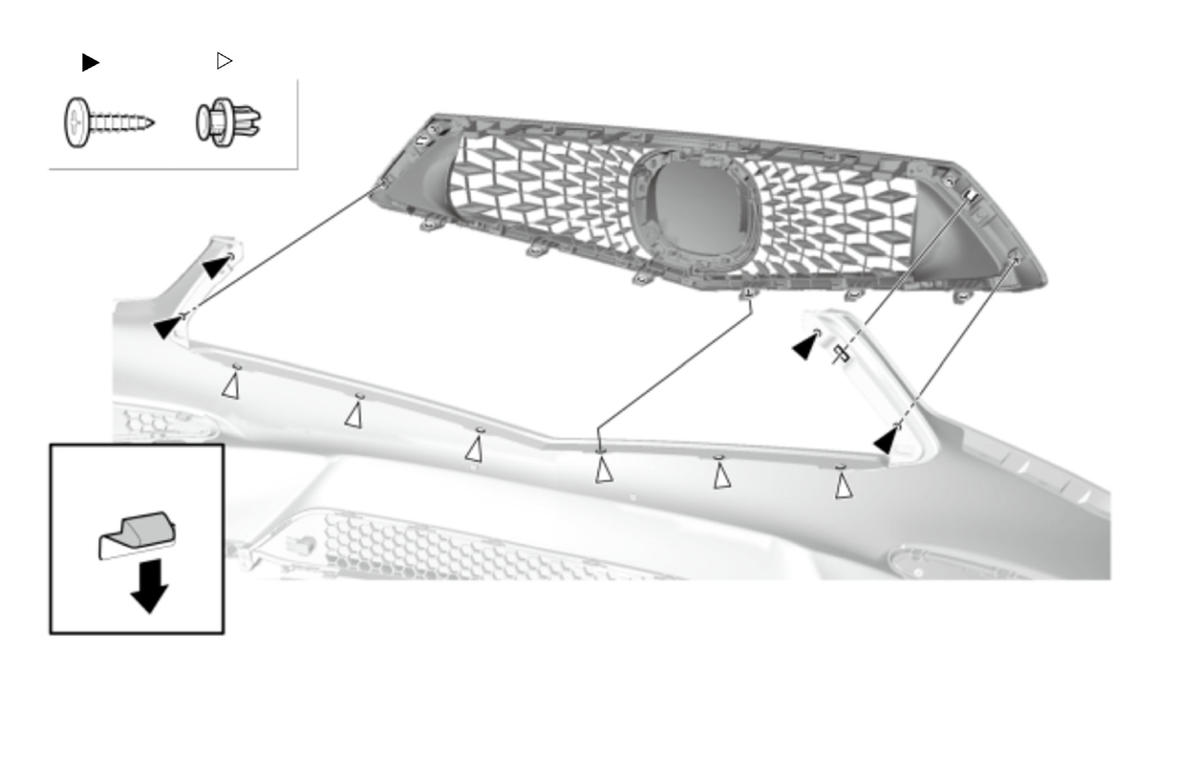

■ Sub-Procedure

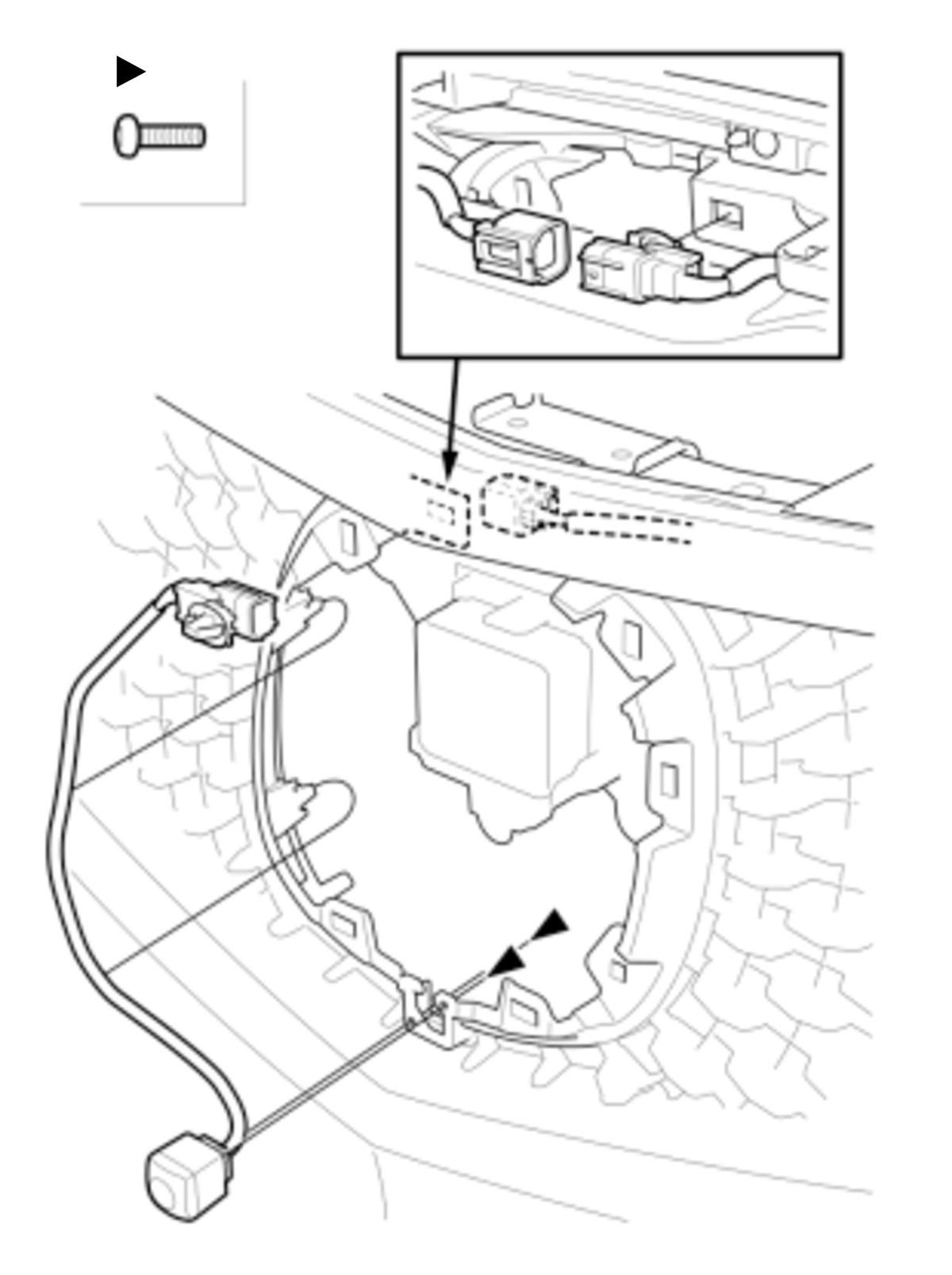

Courtesy of HONDA, U.S.A., INC.

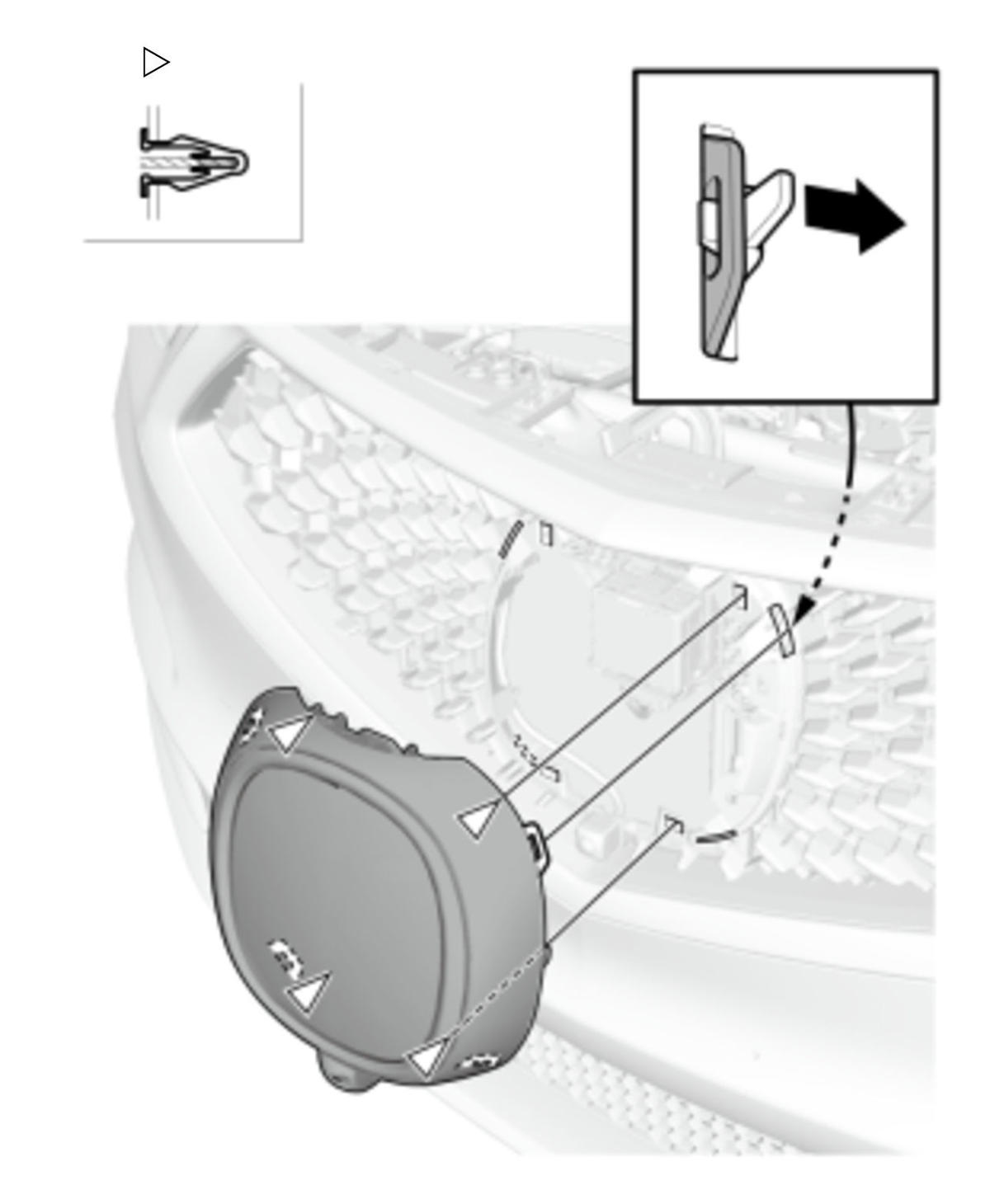

• Removal
- Refer to the figure.
■ After Installation
- With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Picture Inspection or Multi View Camera Aiming
C.
■ Key Information

Do the following before starting your work.

Remove:
- Front "A" Emblem Assembly
■ Sub-Procedure

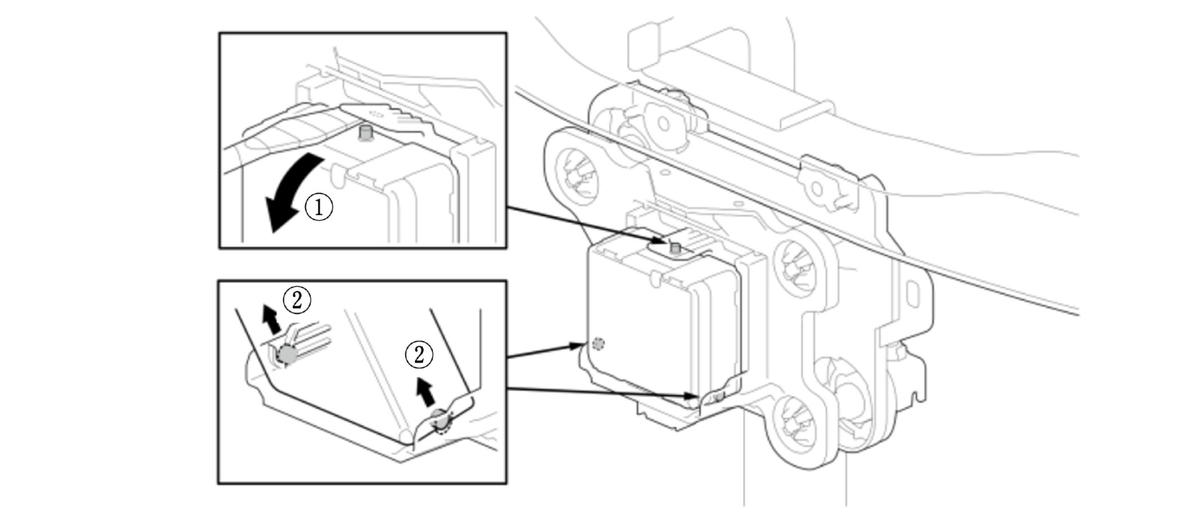

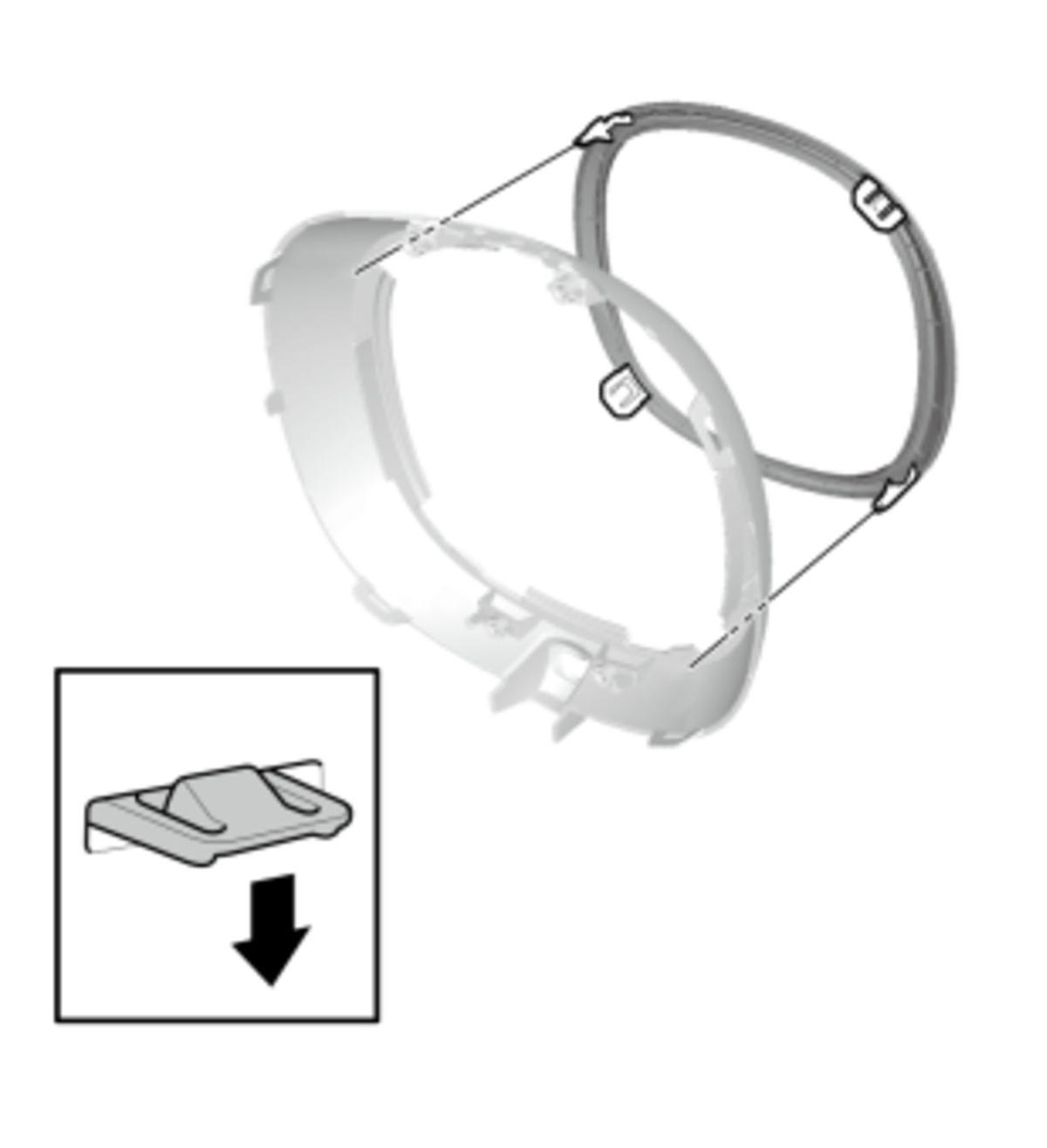

• Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.

■ After Installation
- Millimeter Wave Radar Update - Refer to: Millimeter Wave Radar Mounting Position Inspection or Millimeter Wave Radar Update or Millimeter Wave Radar Aiming
- Millimeter Wave Radar Aiming - Refer to: Millimeter Wave Radar Mounting Position Inspection or Millimeter Wave Radar Update or Millimeter Wave Radar Aiming

NOTE: The front bumper can be removed without removing the front "A" emblem assembly.

■ Key Information

Do the following before starting your work.

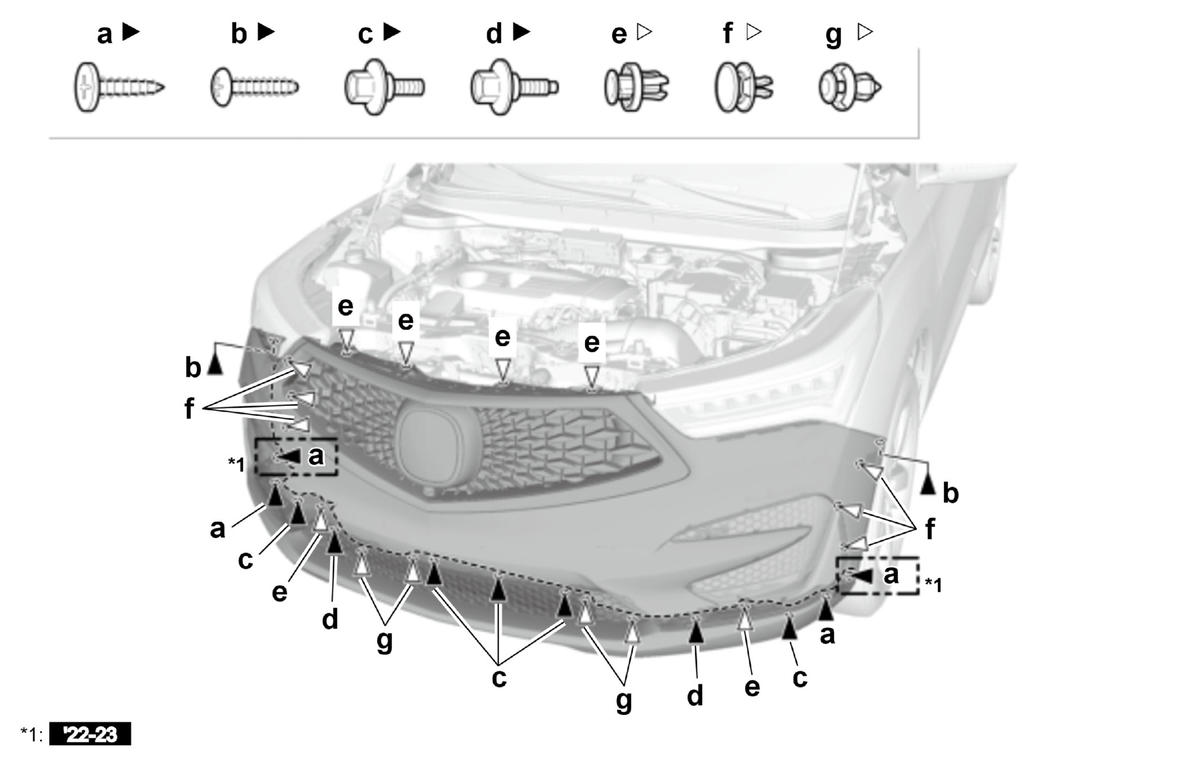

Remove:

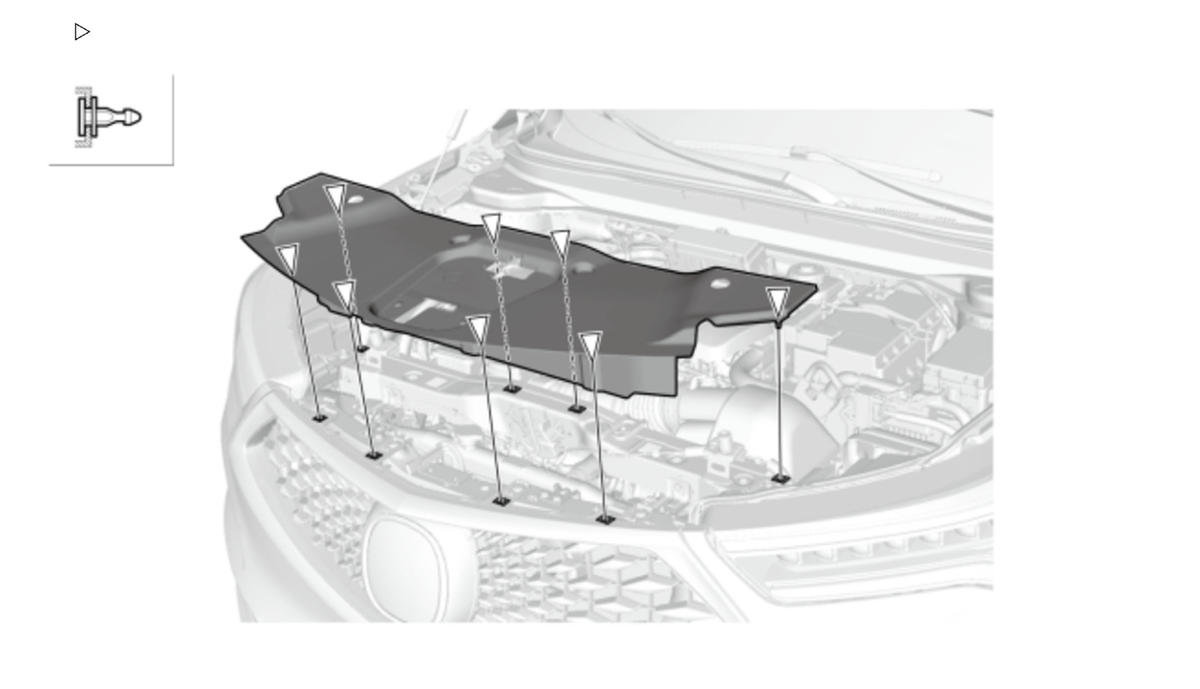

Front Grille Cover

■ Sub-Procedure

• Removal

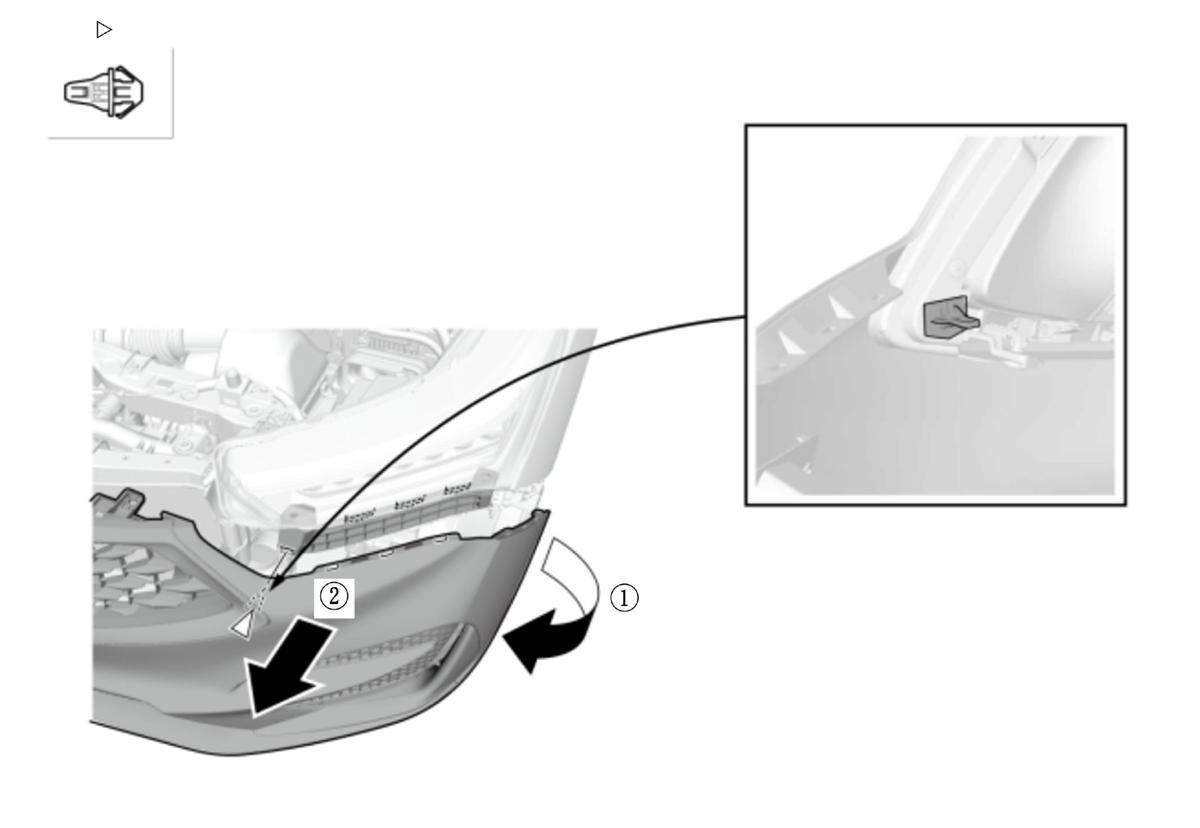

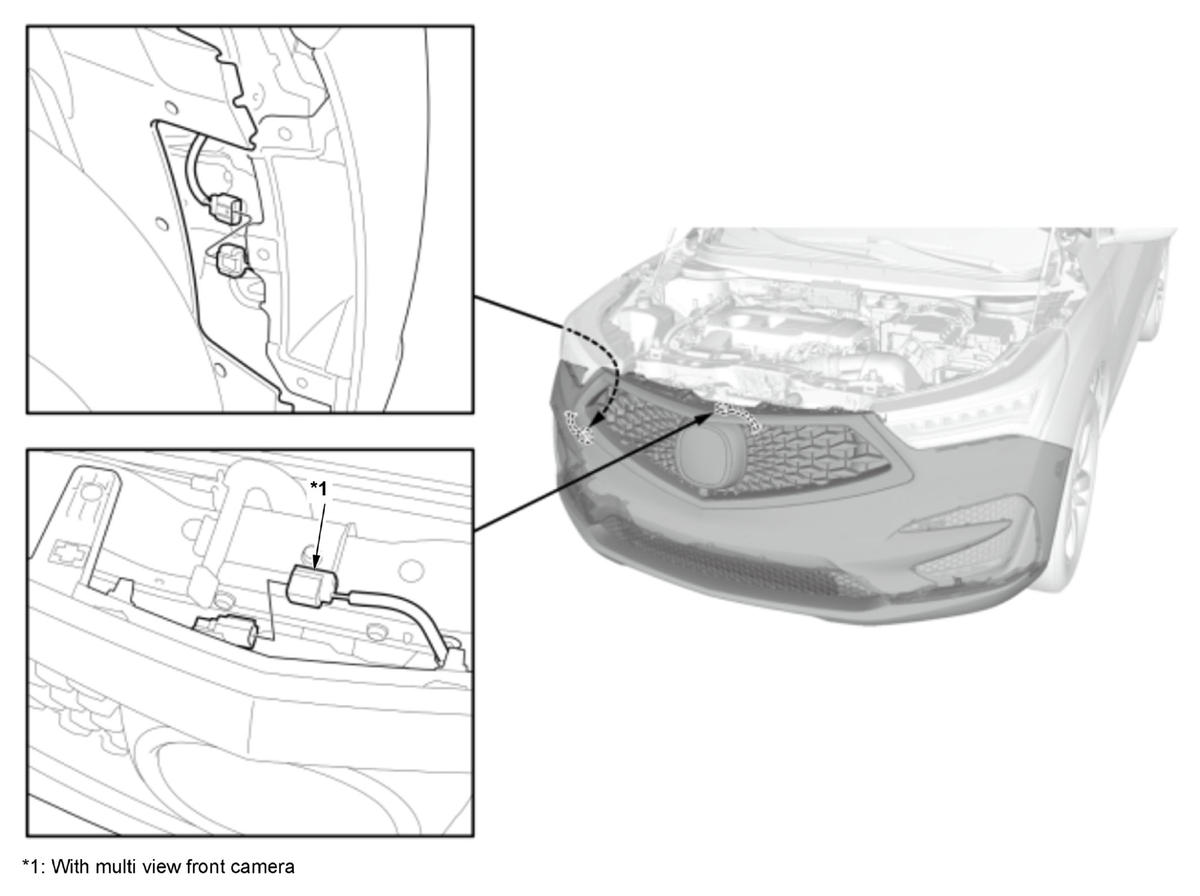

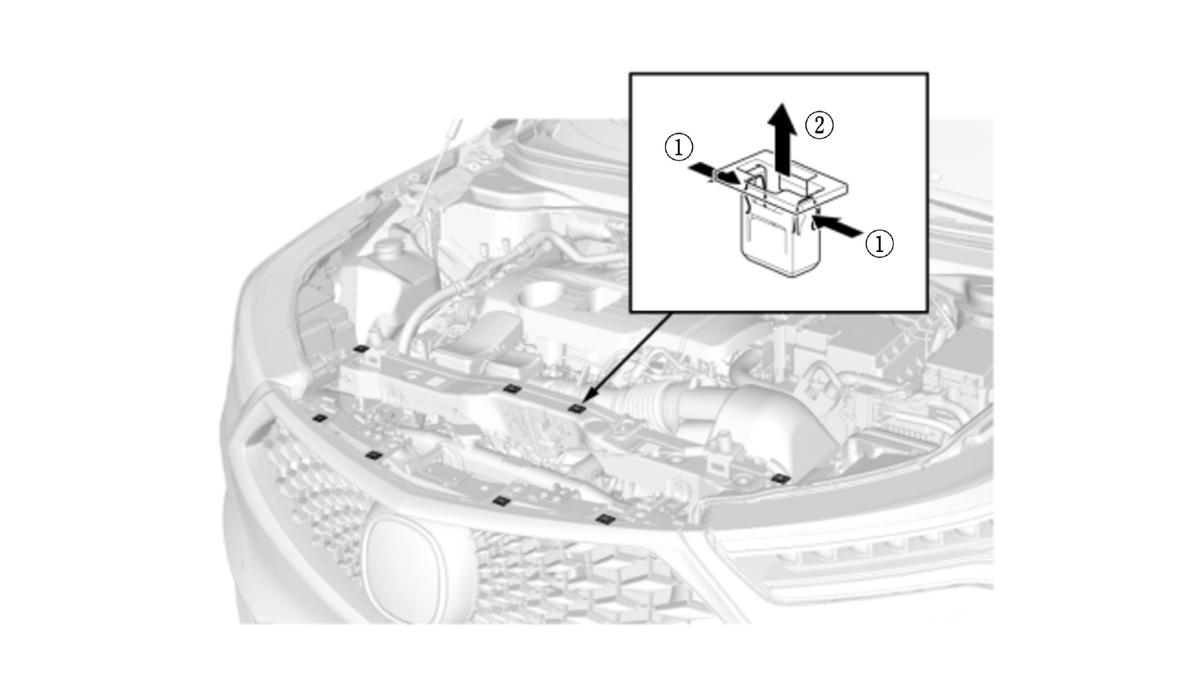

1. Refer to the figure 1.

Figure 1

Courtesy of HONDA, U.S.A., INC.

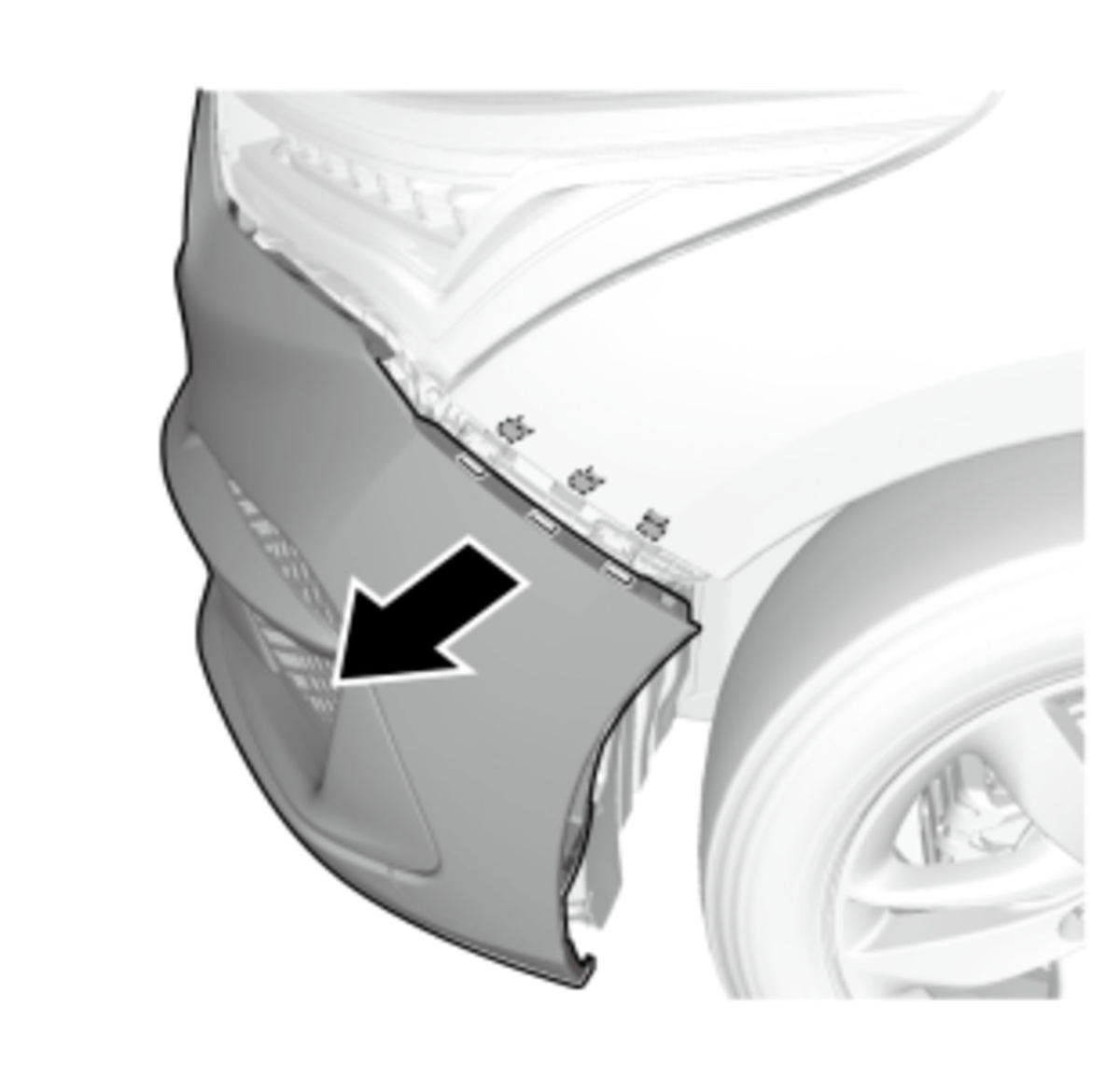

2. Refer to the figure 2.

Figure 2

Courtesy of HONDA, U.S.A., INC.

3. Refer to the figure 3.

Figure 3

Courtesy of HONDA, U.S.A., INC.

4. Refer to the figure 4.

Figure 4

Courtesy of HONDA, U.S.A., INC.

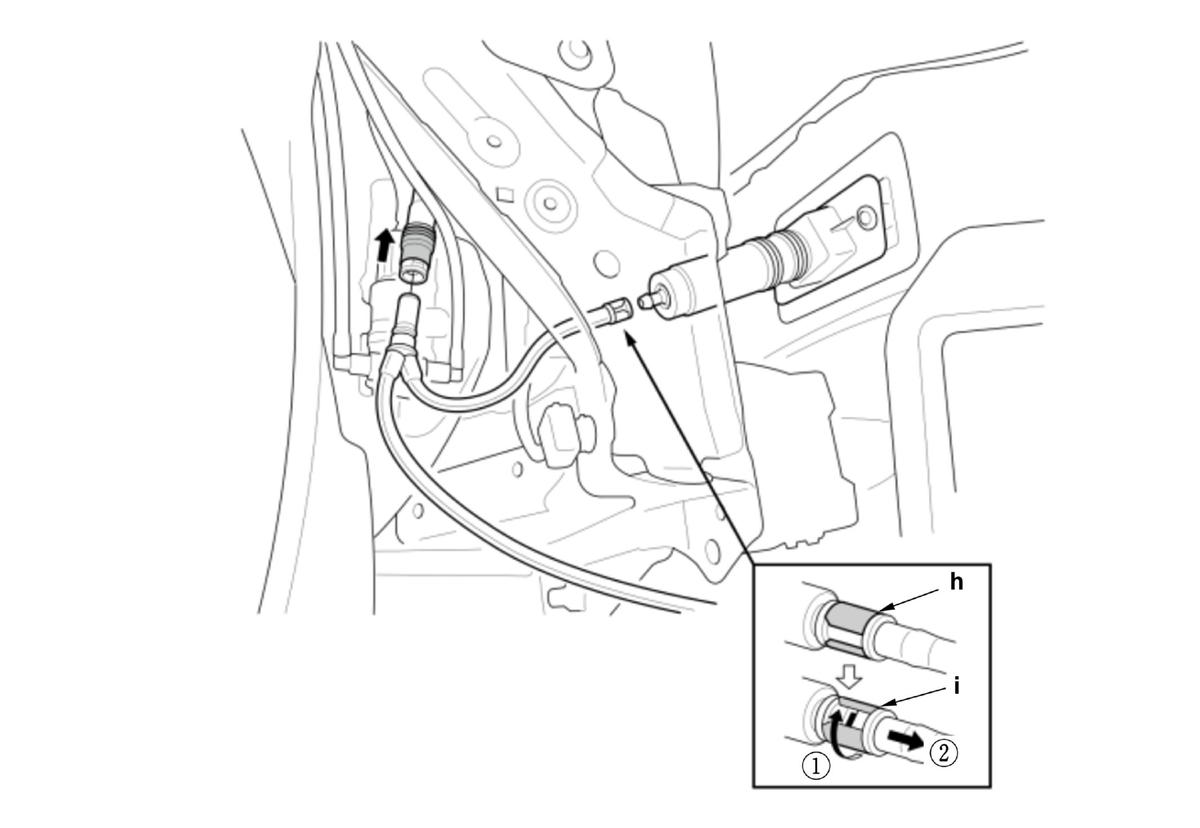

5. With headlight washer: Refer to the figure 5.

Tube Joint Details (Figure 5)

Position	Condition
h	Lock
i	Unlock

Figure 5 (Right Side)

Courtesy of HONDA, U.S.A., INC.

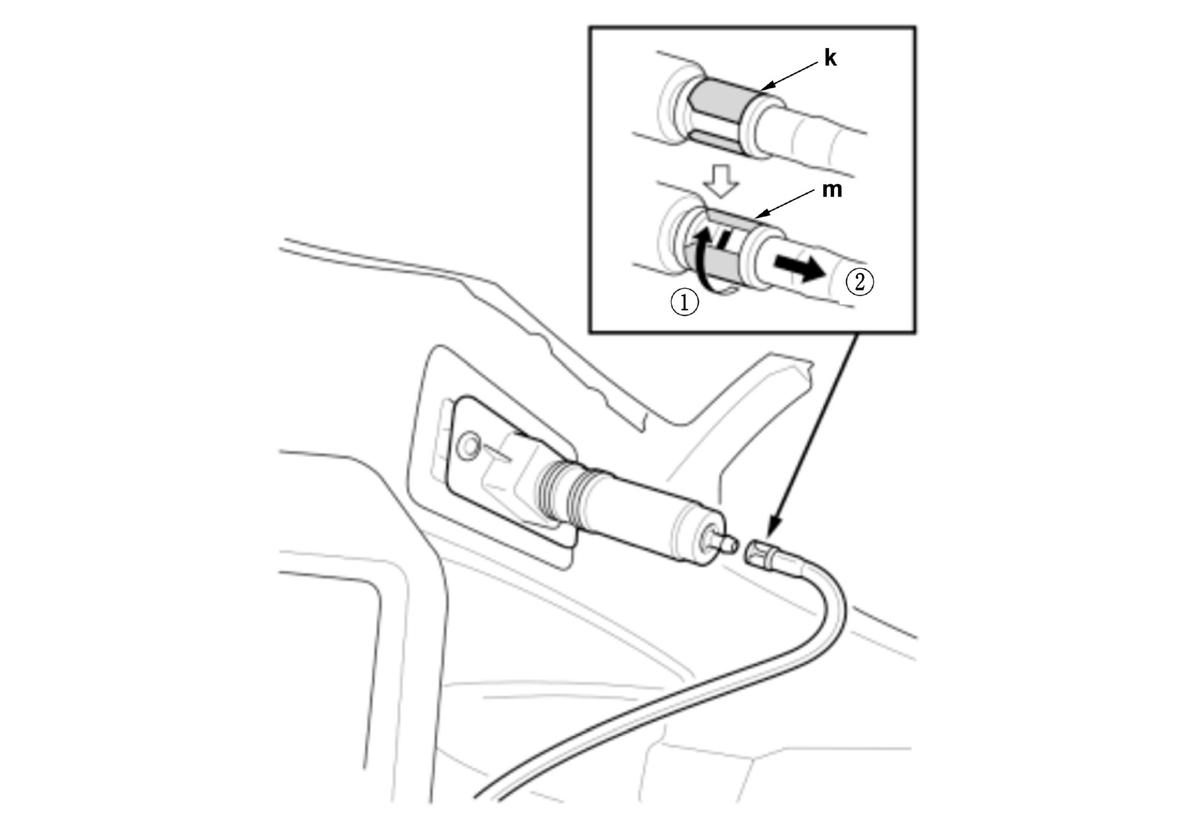

6. With headlight washer: Refer to the figure 6.

Tube Joint Details (Figure 6)

Position	Condition
k	Lock
m	Unlock

Figure 6 (Left Side)

Courtesy of HONDA, U.S.A., INC.

■ After Installation

With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Picture Inspection or Multi View Camera Aiming
With Fog Light: Fog Light Adjustment

E.
■ After Installation
- Headlight Adjustment
F.

Courtesy of HONDA, U.S.A., INC.
G.

Courtesy of HONDA, U.S.A., INC.
H.
■ Key Information

Do the following before starting your work.

Remove:
- Front Bumper

■ Sub-Procedure

Figure 1

Courtesy of HONDA, U.S.A., INC.

• Removal

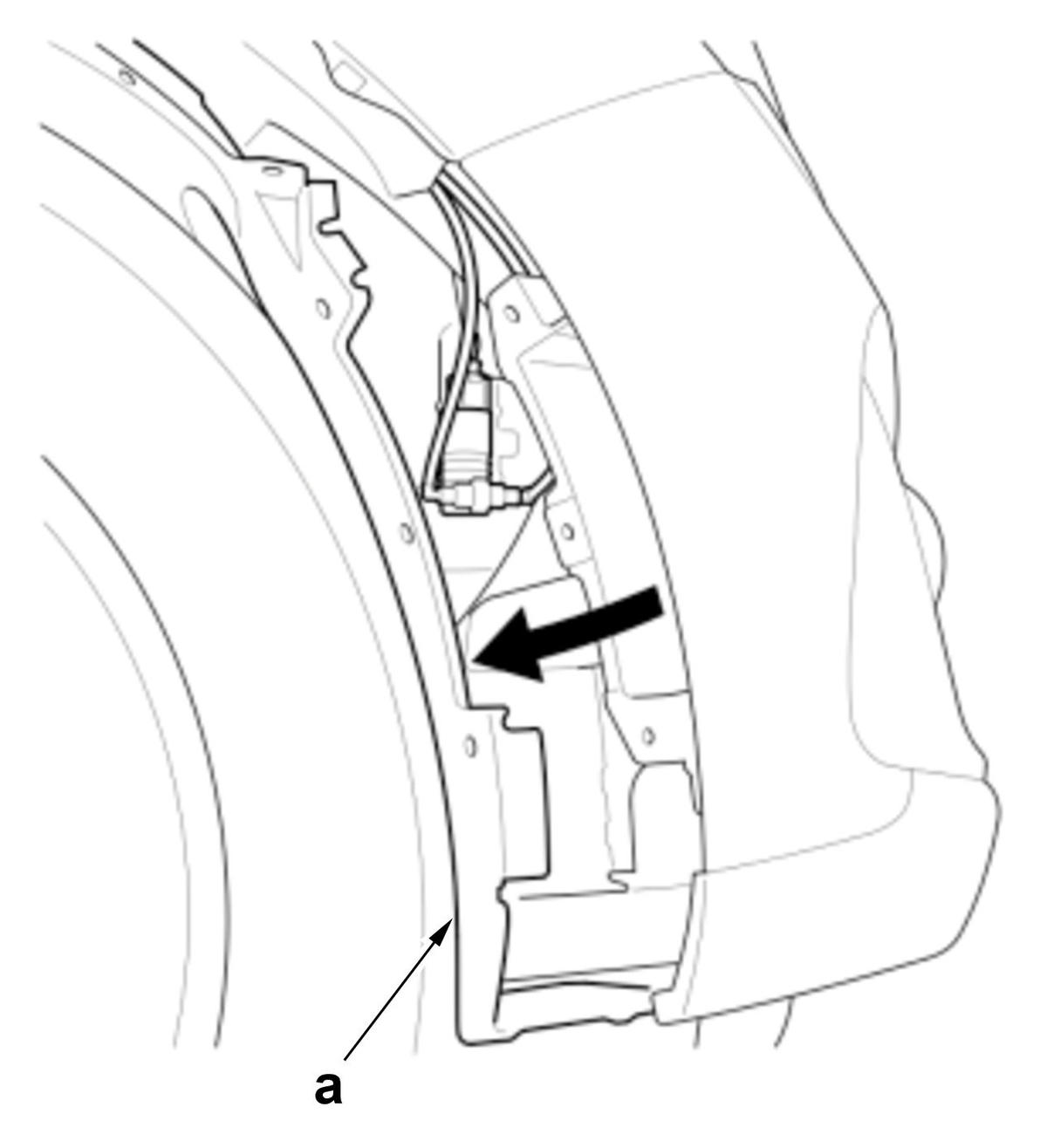

1. Remove the right front inner fender (a) as needed. (Figure 1)

Figure 2

Courtesy of HONDA, U.S.A., INC.

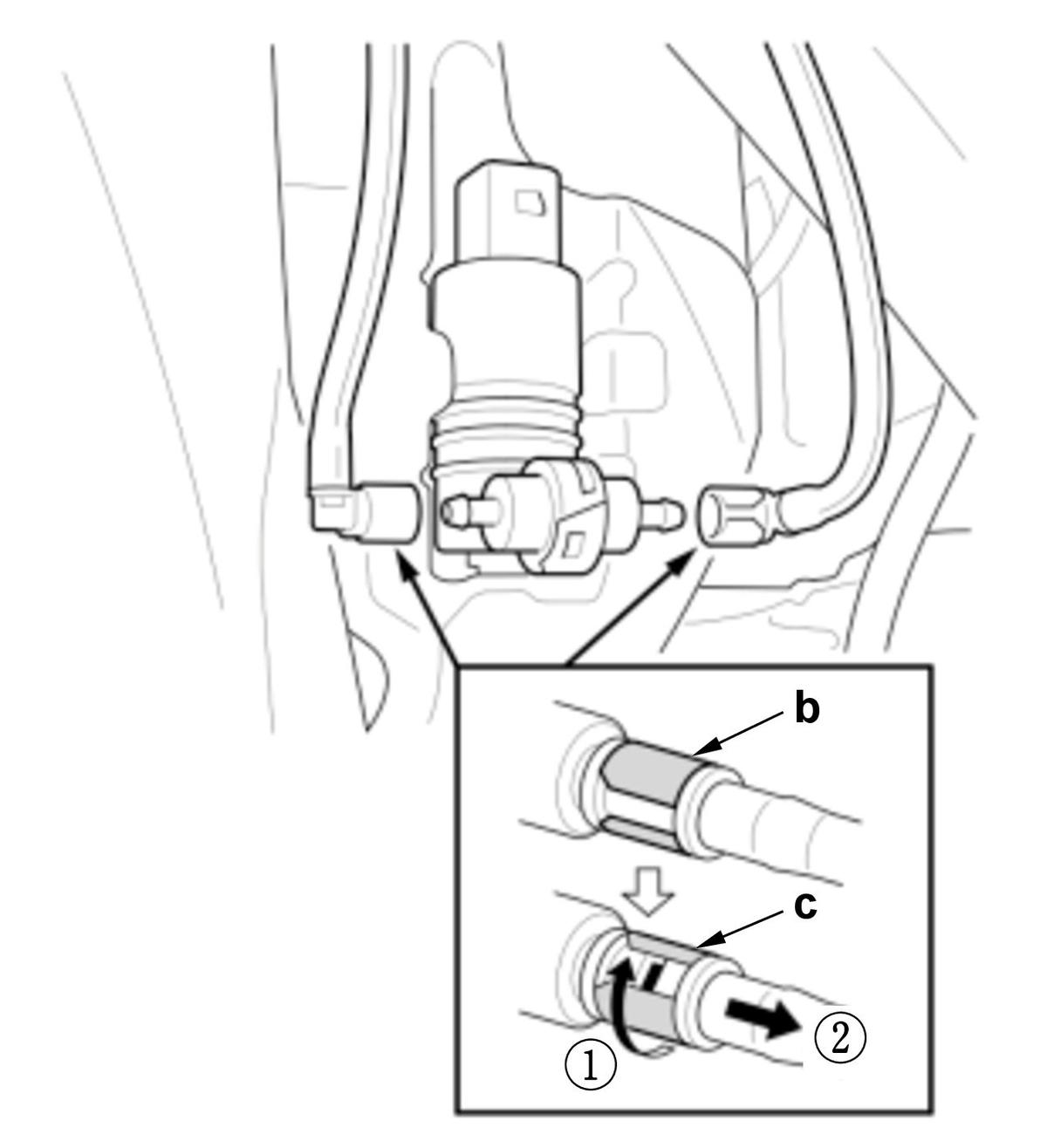

2. Refer to the figure 2.

Tube Joint Details (Figure 2)

Position	Condition
b	Lock
c	Unlock

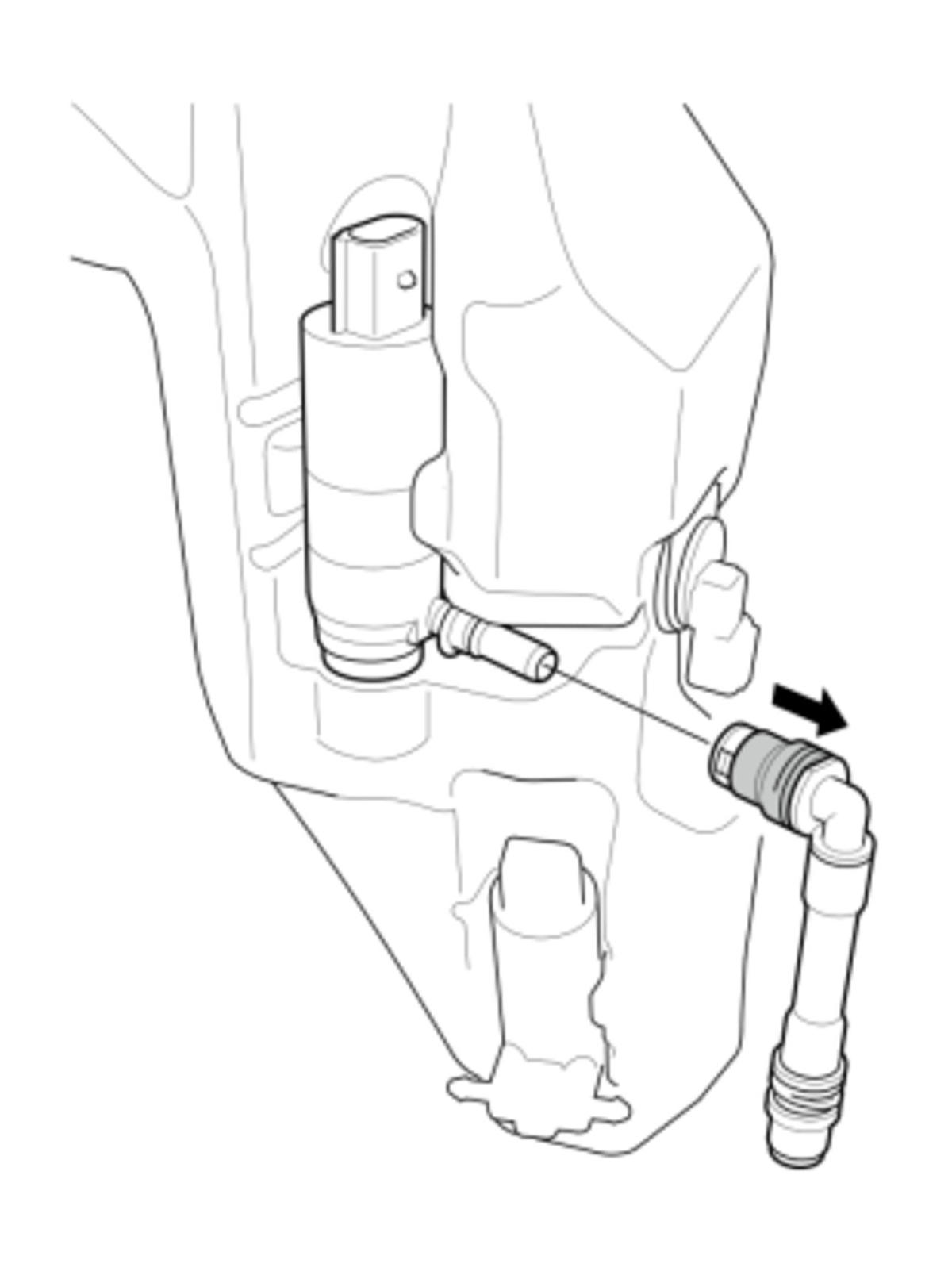

Figure 3

Courtesy of HONDA, U.S.A., INC.

3. With headlight washer: Refer to the figure 3.

• Installation

Washer Reservoir Capacity

Applicable Area	Specifications
USA and Mexico models	2.5 L (2.6 Us qt)
Canada models	5.5 L (5.8 Us qt)

J.
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
If you are replacing the front impact sensor after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal for a complete list of other parts that must also be replaced.

■ Preconditions
- 12 Volt Battery Negative Terminal Disconnected
■ Key Information

Do the following before starting your work.

Remove:
- Front Bumper
■ Sub-Procedure

• Installation

Be careful not to bump (by impact wrench, hammer, etc.) the area around the front impact sensor.
NOTE:
- Before installing the front bumper, make sure the SRS indicator works normally.
■ After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
K.
■ Sub-Procedure

• Removal

1. Refer to the figure 1.

Figure 1

Courtesy of HONDA, U.S.A., INC.

2. Refer to the figure 2.

Figure 2

Courtesy of HONDA, U.S.A., INC.

■ Sub-Procedure

• Installation

After cleaning, keep oil, grease, and water from getting on the surface.

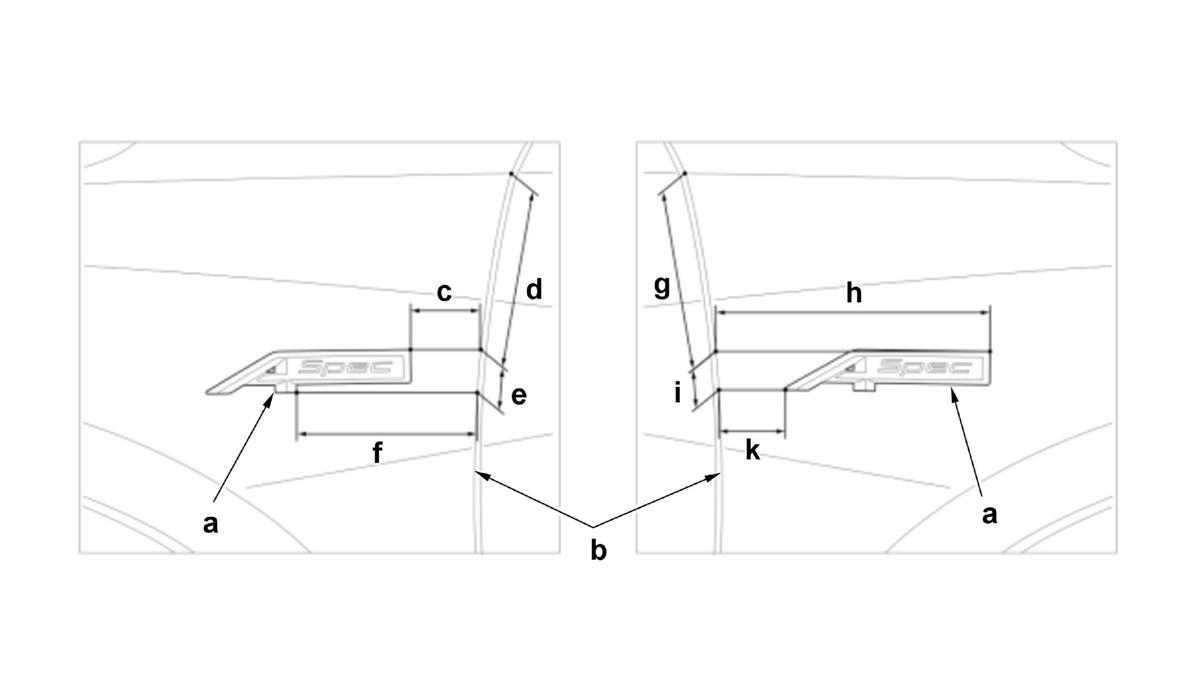

Tape Specifications

Standard Value
a	Adhesive tape thickness 0.8 mm (0.031 in)
b	Edge of the front fender
c	61.7 mm (2.429 in)
d	142.5 mm (5.610 in)
e	28.7 mm (1.130 in)
f	140.3 mm (5.524 in)
g	145.1 mm (5.713 in)
h	205.9 mm (8.106 in)
i	24.8 mm (0.976 in)
k	57.8 mm (2.276 in)

Courtesy of HONDA, U.S.A., INC.

M.
■ Sub-Procedure

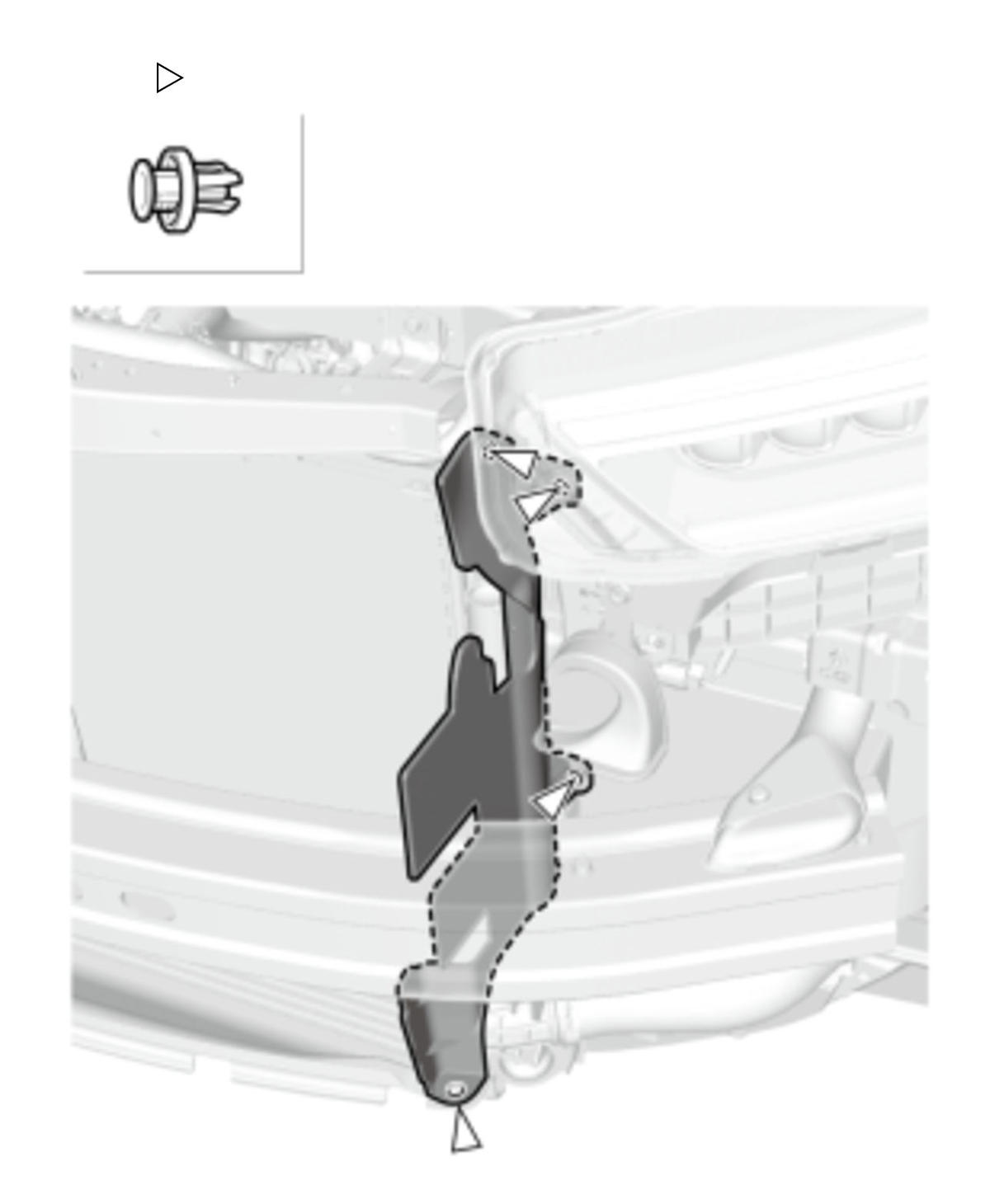

• Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.

■ After Installation
- With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Picture Inspection or Multi View Camera Aiming
N.

Courtesy of HONDA, U.S.A., INC.
O.

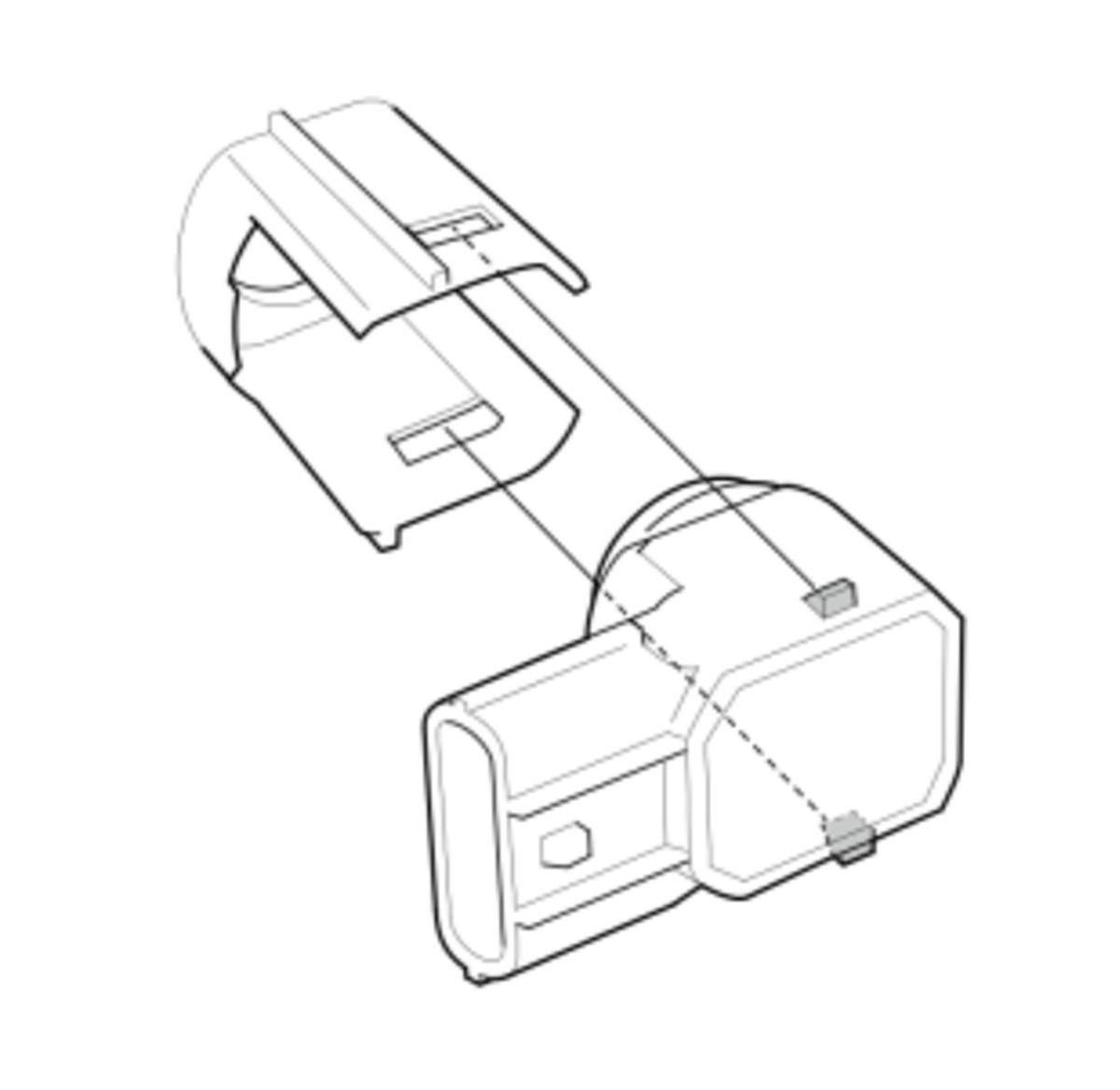

■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

• Removal
- Refer to the figure.
■ After Installation

NOTE: '19-21: Reset the parking and back-up sensor control unit after doing any of the following actions - Refer to: Resetting the Parking and Back-Up Sensor Control Unit or Parking and Back-Up Sensor Control Unit Update :
- When you replace the parking and back-up sensor.
- When you change the parking and back-up sensor mounting location from the original location.
P.

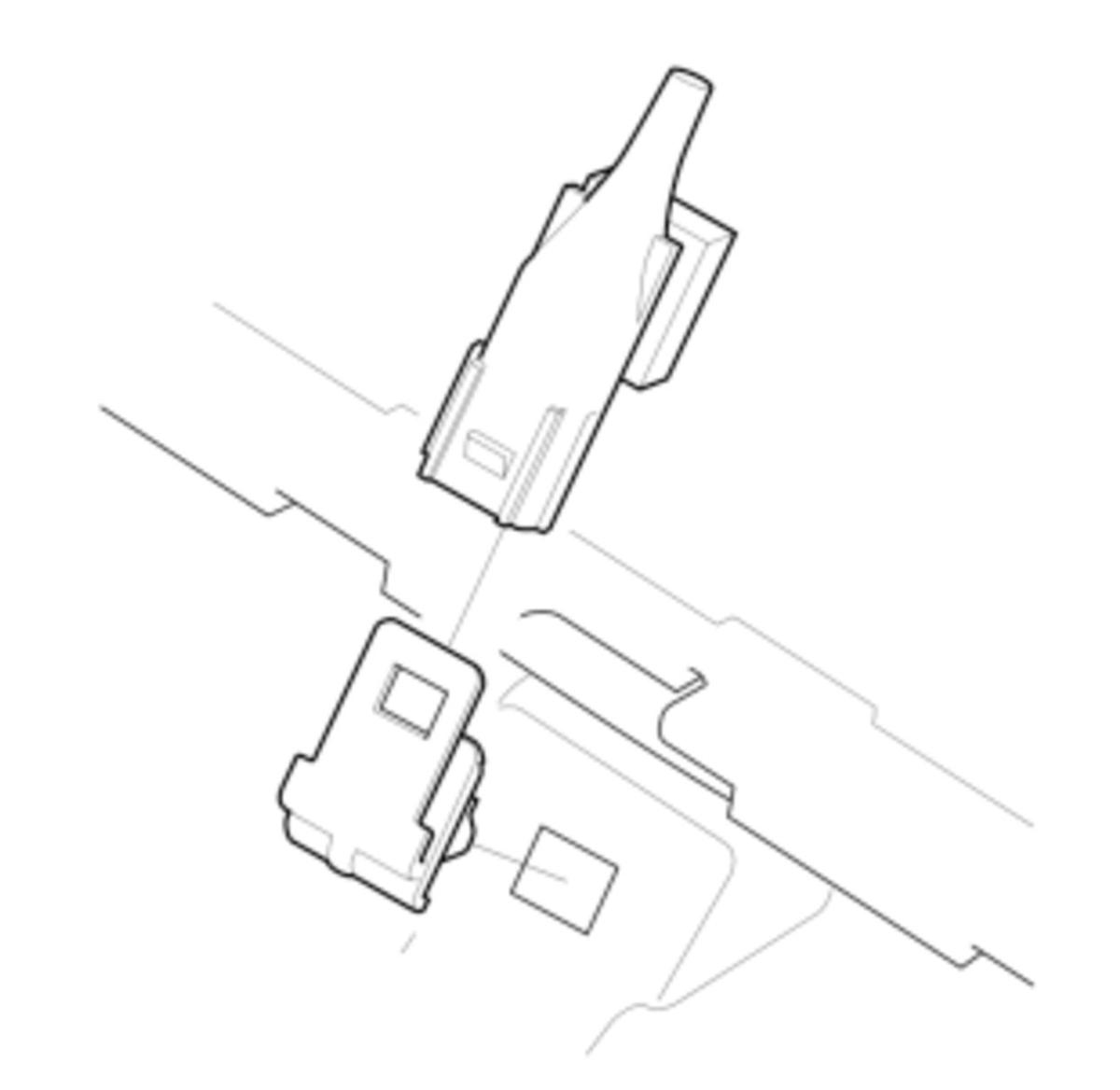

■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

• Removal
- Refer to the figure.
Q.

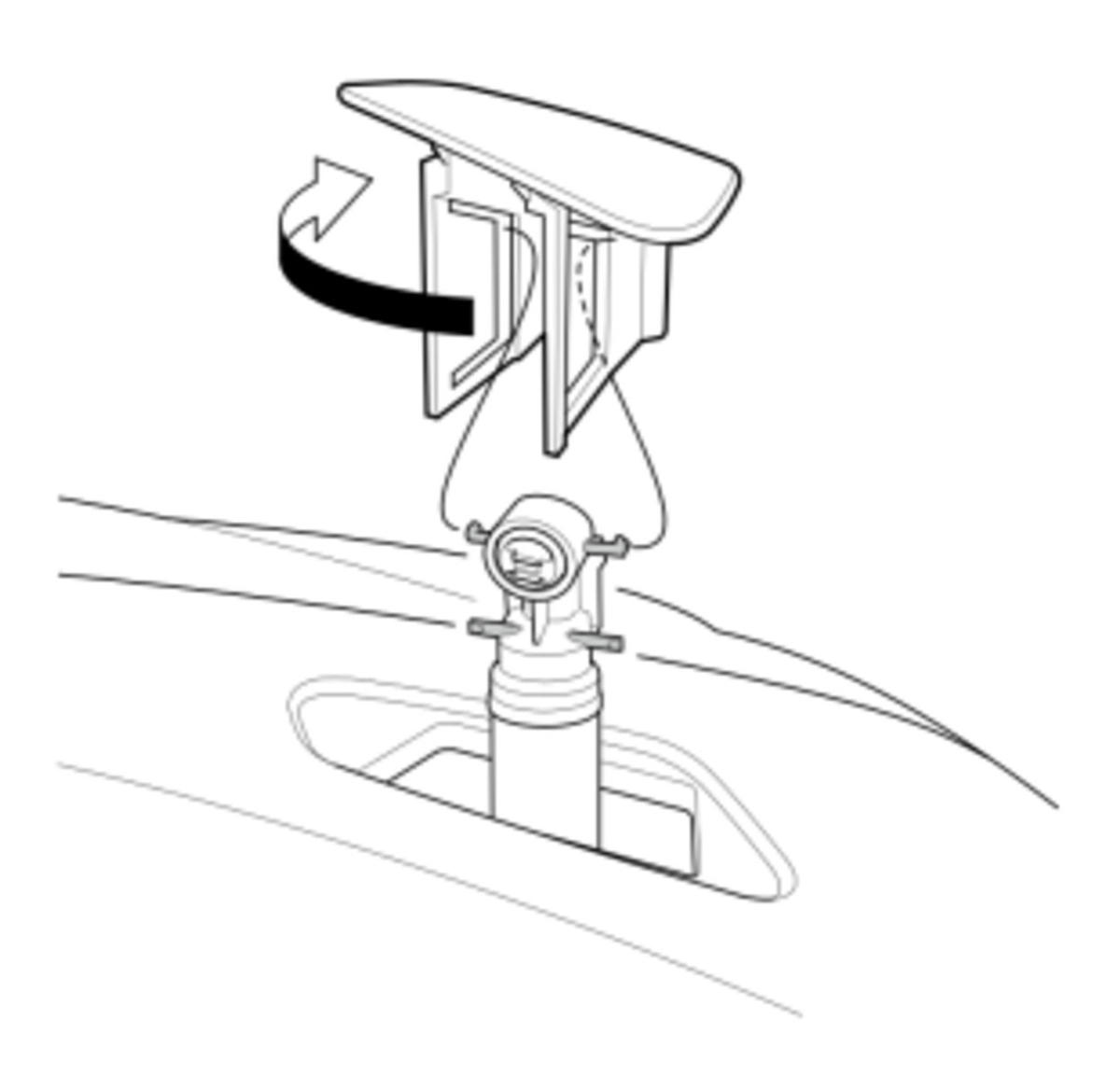

■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

• Removal
- Refer to the figure.
R.
■ After Installation
- Fog Light Adjustment
