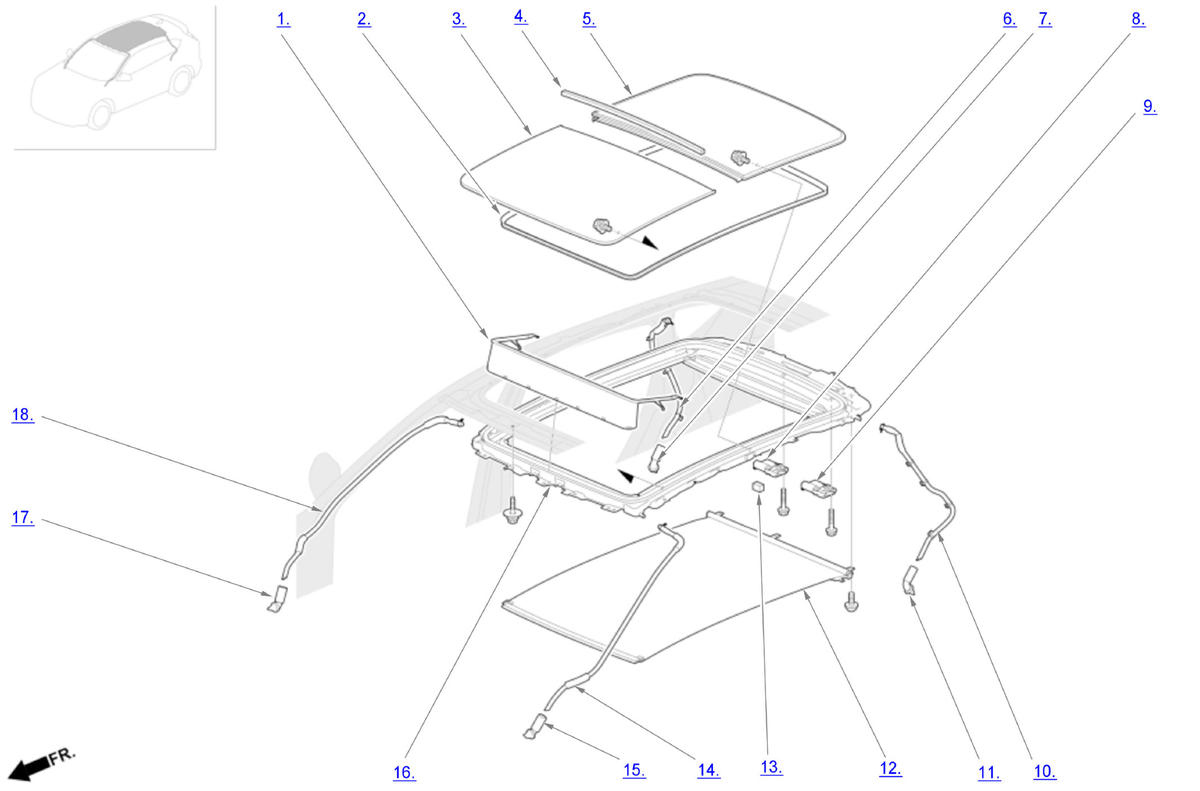

Exploded View
For replacement of components listed below, see Repair Procedure .
Panoramic Glass Roof Area Components
| Component Name | Callout |
|---|---|
| Wind Deflector | 1 |
| Acoustic Seal | 2 |
| Panoramic Front Glass | 3 |
| Drain Channel Form | 4 |
| Panoramic Rear Glass | 5 |
| Rear Drain Tube | 6 |
| Rear Drain Valve | 7 |
| Panoramic Glass Roof Motor-Control Unit | 8 |
| Power Sunshade Motor-Control Unit | 9 |
| Rear Drain Tube | 10 |
| Rear Drain Valve | 11 |
| Sunshade Assembly | 12 |
| Motor Form | 13 |
| Front Drain Tube | 14 |
| Front Drain Valve | 15 |
| Panoramic Glass Roof Frame | 16 |
| Front Drain Valve | 17 |
| Front Drain Tube | 18 |
| Primary Seal | 19 |
| Sunshade | 20 |
| Sunshade Bracket | 21 |
