Repair Procedure: Procedure
- A.WARNING:

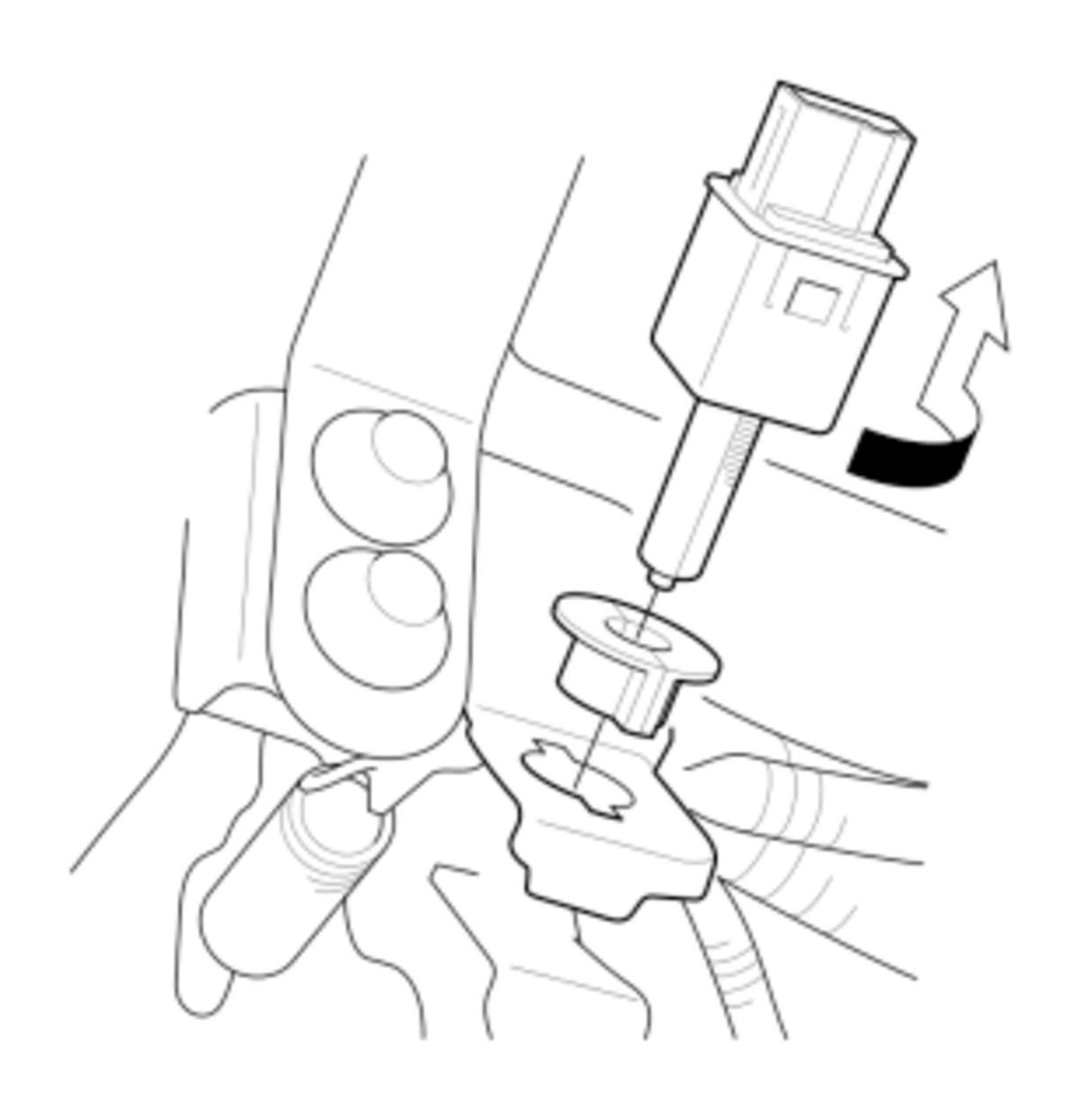

Do not connect the brake pedal position switch connector with the brake pedal position switch removed. The engine may start if the start/stop button is pressed as the system interprets that the brake pedal is depressed. Unintended starting of the engine is dangerous.
■ Key Information
Do the following before starting your work.
Remove:
■ Sub-Procedure
• Removal
- Refer to the figure.
■ After Installation
- B.
■ Key Information
Do the following before starting your work.
Remove:
■ Sub-Procedure
Figure 1
• Removal

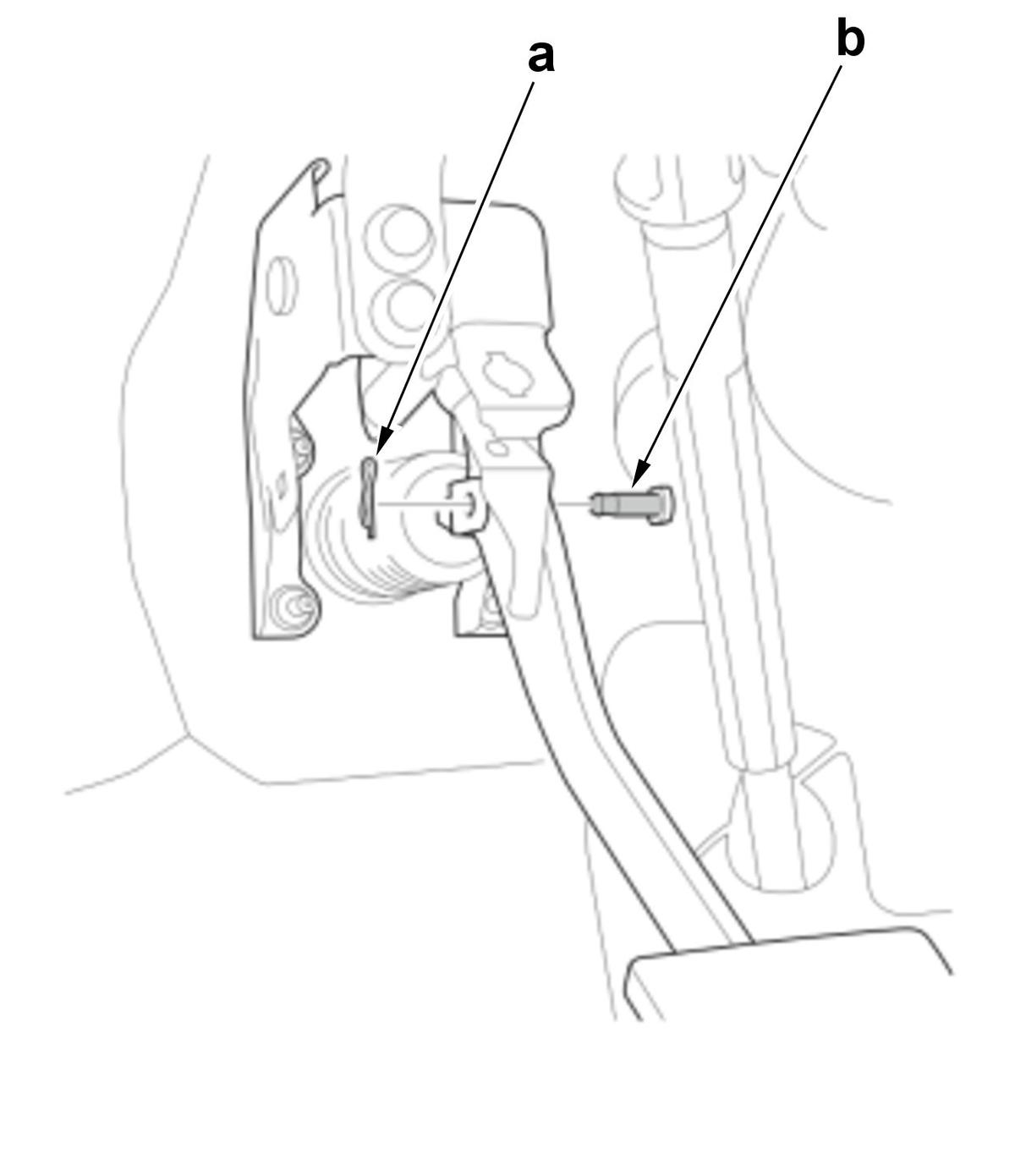

- Remove the pin (a), then remove the pin (b). (Figure 1)
Figure 2
• Installation

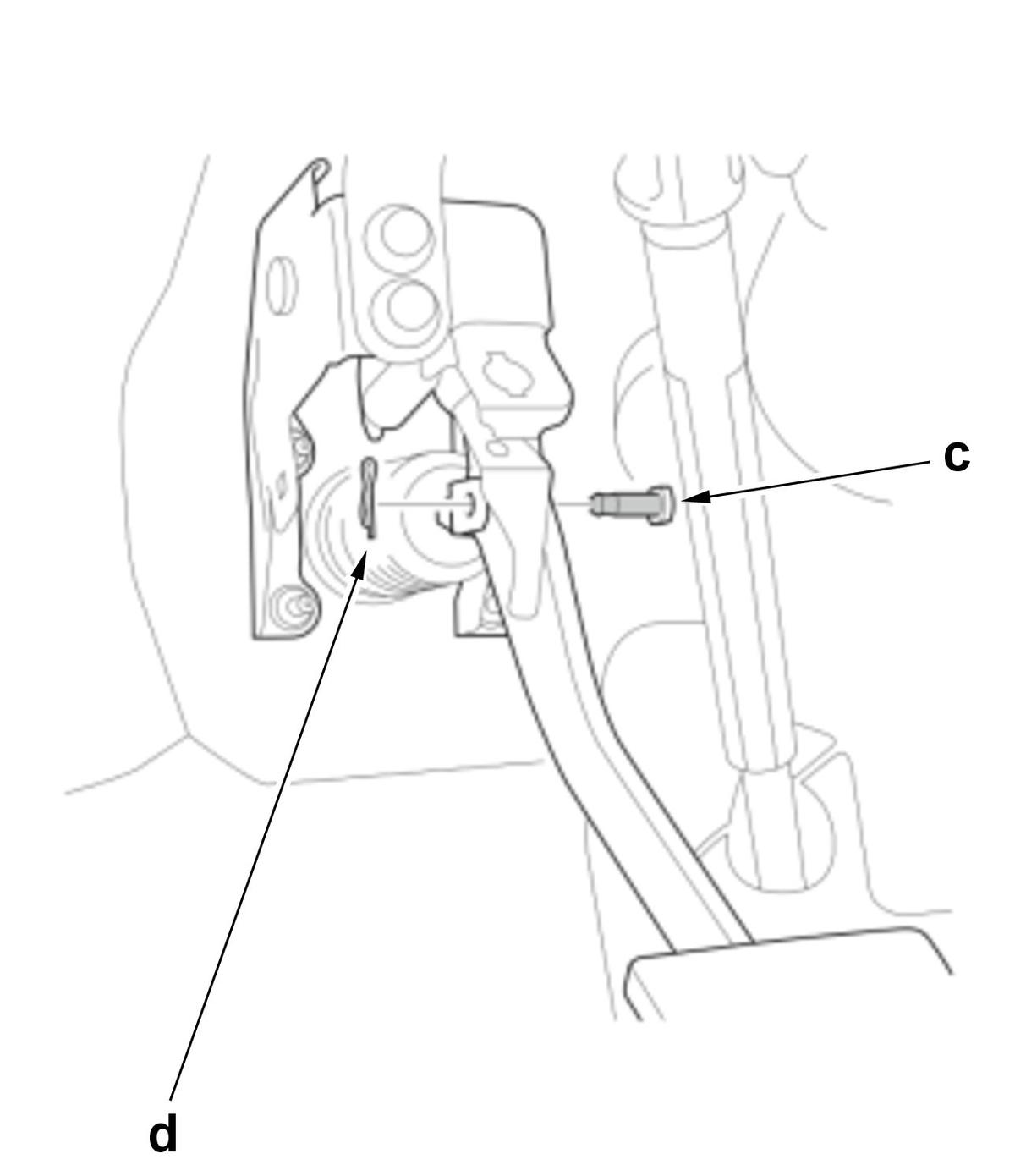

1. Install the pin (c), then install the pin (d). (Figure 2)
Lubricant Specifications (Figure 2)
Application Position Type c Multipurpose Grease Figure 3

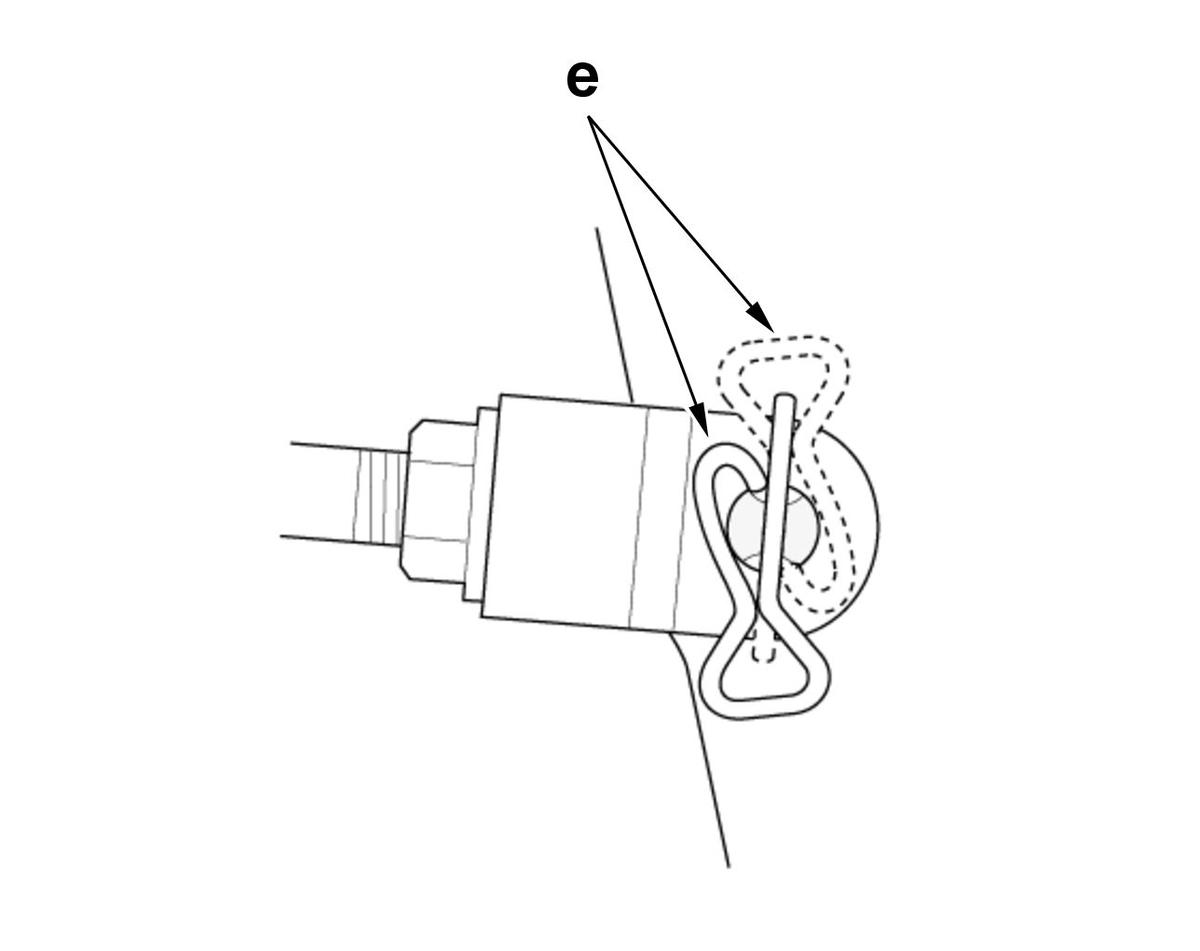

2. The pin (e) can be installed from the top or bottom. (Figure 3)
■ After Installation
- C.
■ Sub-Procedure
• Removal
NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module. - D.
■ Key Information
Do the following before starting your work.
Remove:
■ After Installation
- Adaptive Damper Control Unit Update (If the adaptive damper control unit does not have the latest software)
- E.
■ Sub-Procedure
• Removal

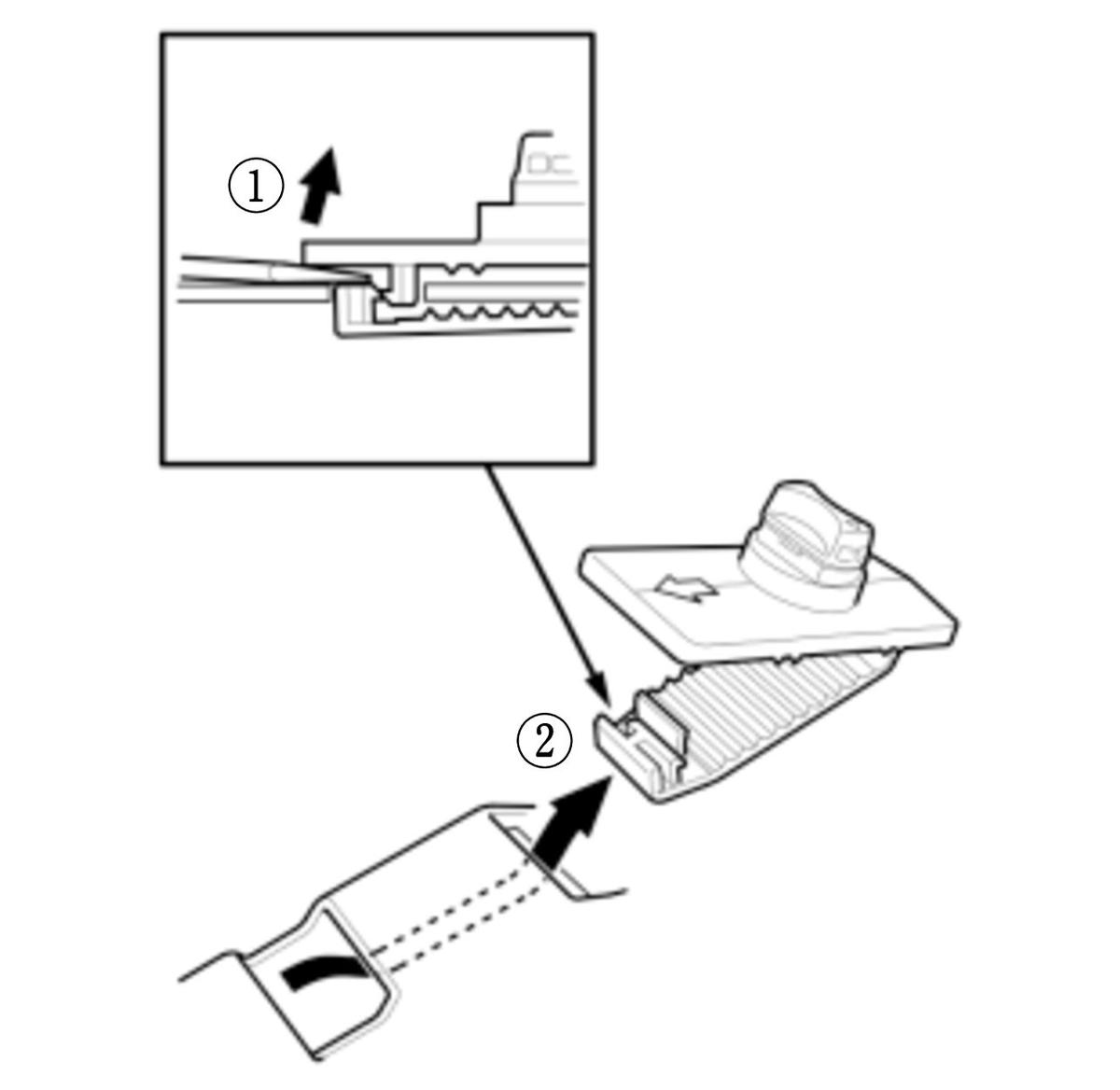

- Refer to the figure.
