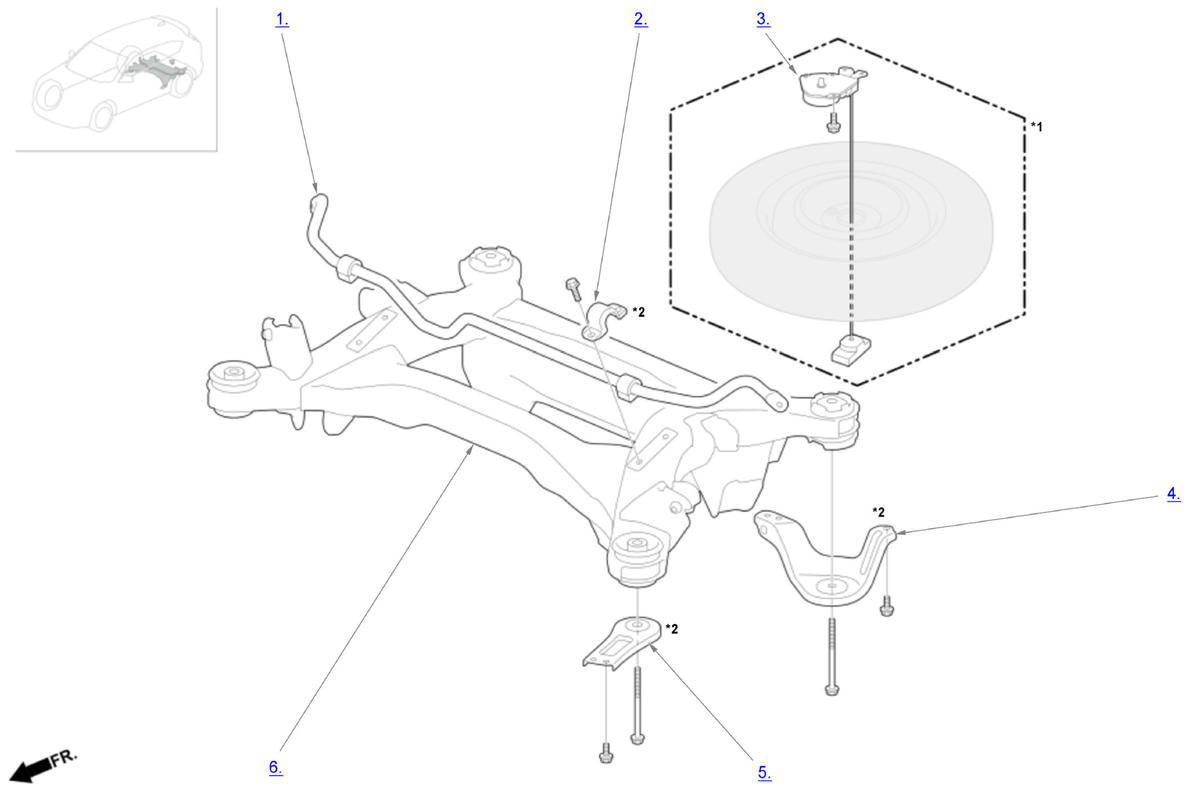

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With a spare tire *2: Part(s) are shown for one side only as the procedure is the same for both sides. |
Rear Subframe Area Components
| Component Name | Callout |
|---|---|
| Rear Stabilizer Bar | 1 |
| Bushing Holder | 2 |
| Spare Tire Hoist | 3 |
| Rear Subframe Rear Stay | 4 |
| Rear Subframe Front Stay | 5 |
| Rear Subframe | 6 |
