Repair Procedure: Procedure

■ Sub-Procedure

• Installation

■ Installation Procedure

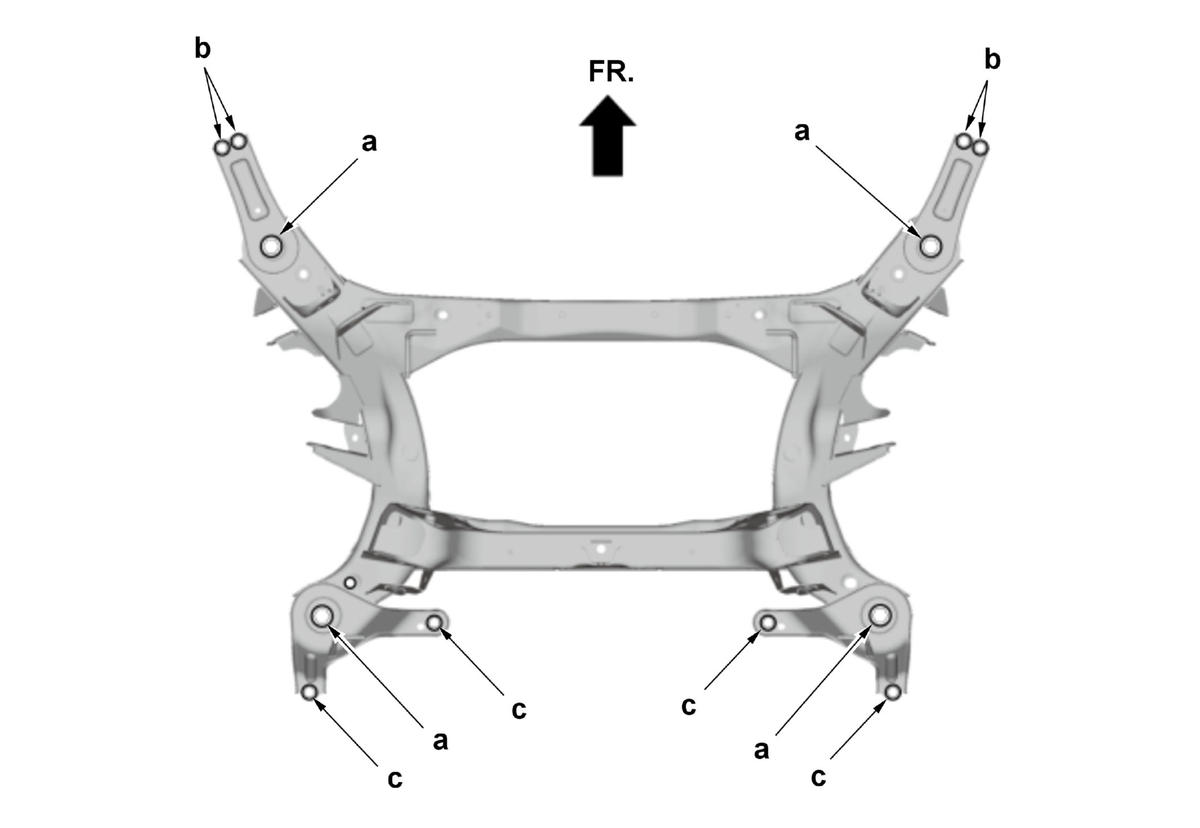

Procedures		Item
1	Loosely install	All bolts (a, b, c)
2	Tighten	Bolts (a)
3	Tighten	Bolts (b)
4	Tighten	Bolts (c)
Courtesy of HONDA, U.S.A., INC.

■ After Installation

• Rear Wheel Alignment Check

■ Key Information

Do the following before starting your work.

Remove:

• Rear Brake Area Parts
  • Rear Wheel
  • Rear Caliper Body
    NOTE: Do not disconnect the brake hose.
• Rear Suspension Area Parts - Refer to: Rear Suspension Area (Without AWD) or Rear Suspension Area (With AWD)
  • Rear Upper Arm B
  • Bolt (Rear Damper Lower Side)
• Rear Engine Undercover (With rear engine undercover)
• Muffler
• Rear Differential Assembly (With AWD)

■ Sub-Procedure

• Removal

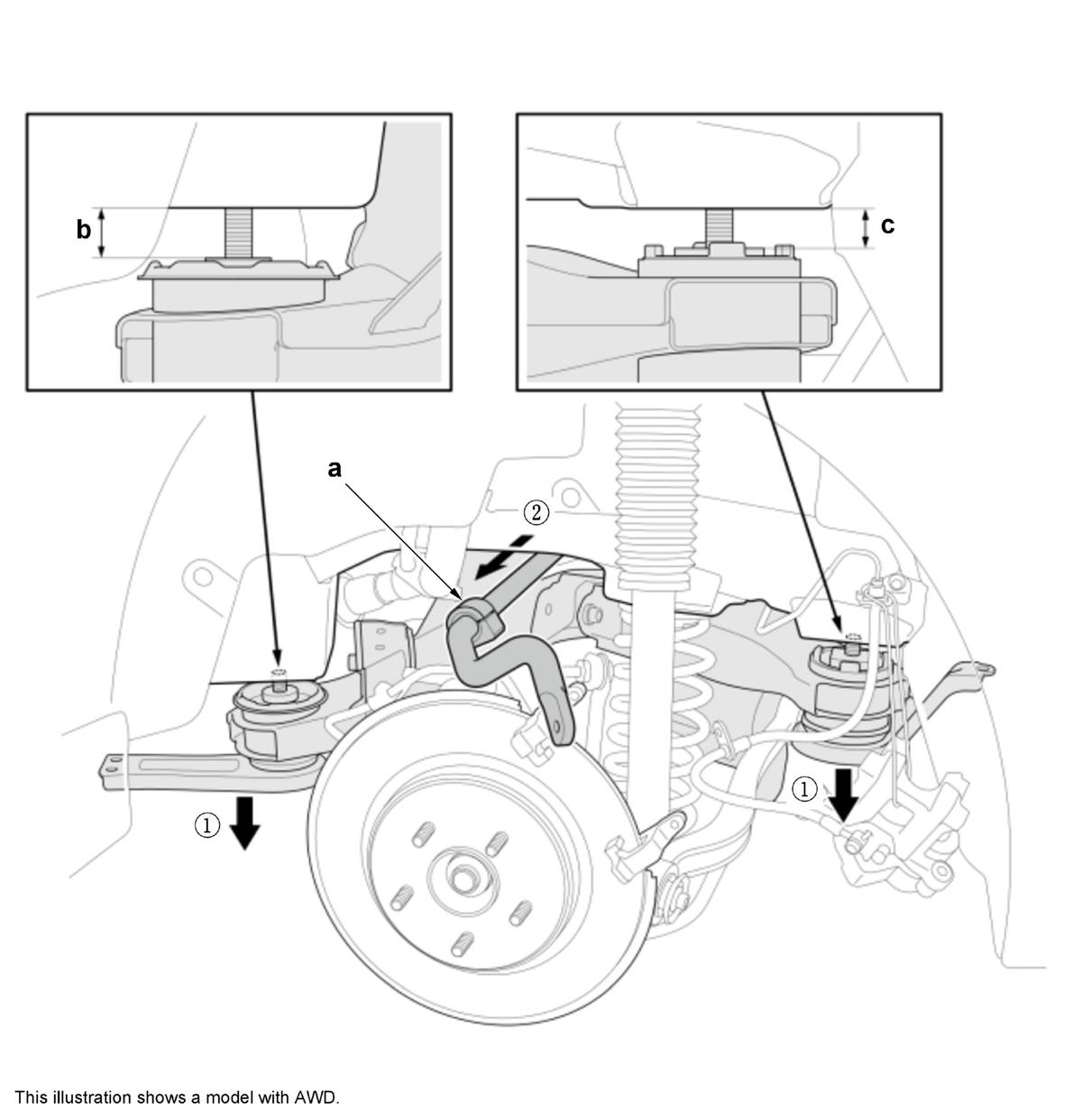

Clearance Details

Specifications
b: 35 mm (1.38 in)
c: 25 mm (0.98 in)
Courtesy of HONDA, U.S.A., INC.
