Repair Procedure: Notes

NOTE:

Unless otherwise indicated, illustrations used in the procedure are for the adaptive damper system.
In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.

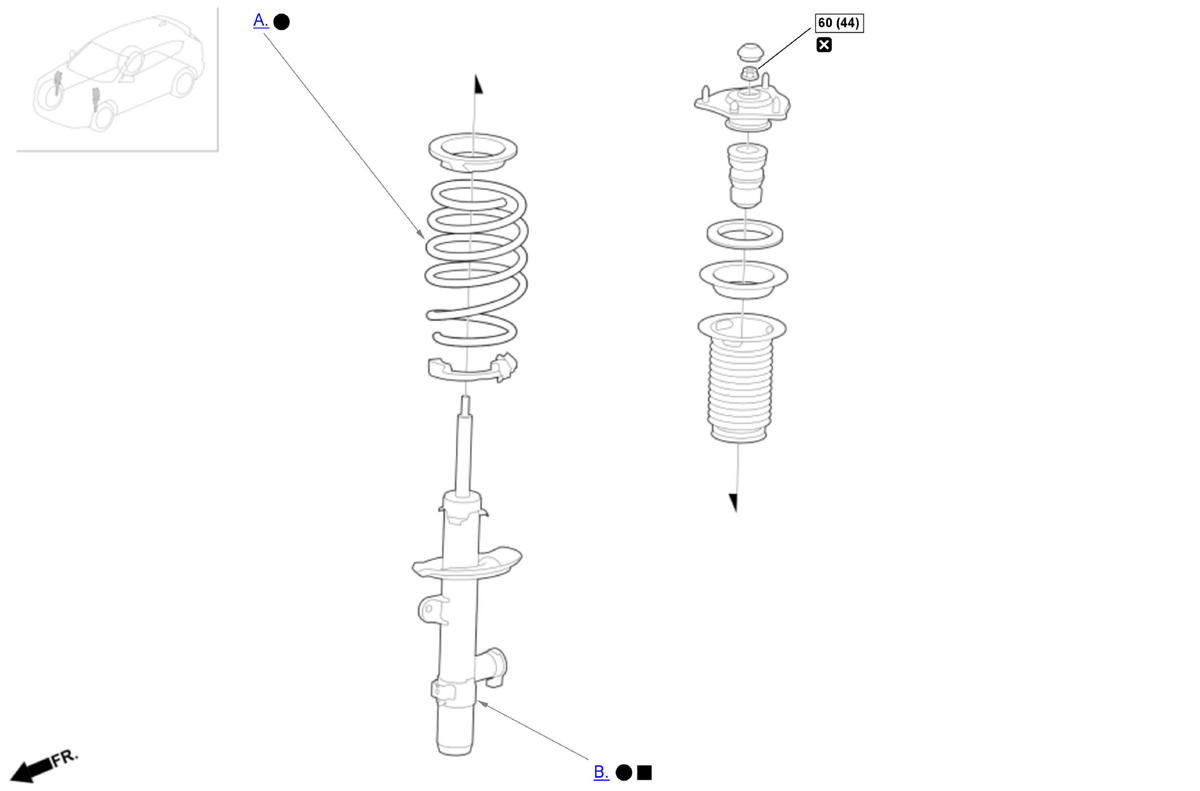

Fig 1: Front Damper/Spring Components Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal
